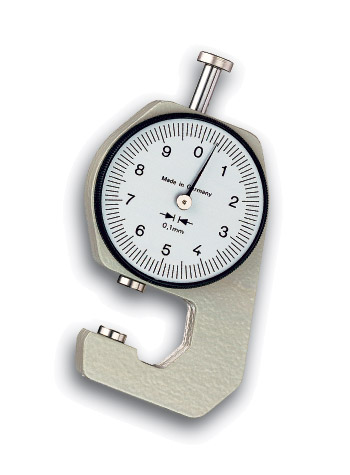

K-15 - Versatile Thickness Gauge
The K-15 thickness gauge, made with a robust aluminium housing, is ideal for measuring the thickness of a variety of materials such as leather, textiles, cardboard, felt, rubber, metal, and plastics. Designed for ease of use and accuracy, the K-15 is perfect for applications requiring manual pressure measurement through a plunger.
This device is characterized by its simple functionality and its ability to adapt to different measurement contexts thanks to its specialized feeler and manual pressure mechanism.
Key Features:
- Precise Measurement: Resolution of 0.1 mm for detailed measurements.
- Manual Operation: Manual pressure measurement system that facilitates its use on various materials.
- Automatic Opening: Spring force opening mechanism ensures ease and repeatability in measurements.
Key Benefits:
- Versatility: Suitable for measuring materials from soft leather to metal sheets.
- Ergonomic Design: Lightweight and durable aluminium housing with an adjustable outer ring for easy zeroing.
- Adaptable Configuration: Available with different shapes of feelers to suit the texture and characteristics of the material being measured.
Contact us for more information on how the K-15 thickness gauge can facilitate your precision measurement needs in various settings.
Features
- Customization Options: Adjustable feelers and masses available to configure the device according to specific measurement needs.
- Ease of Zeroing: Simple zero adjustment with the outer ring, allowing for quick and effective calibration.
Feeler: F
For soft leather, cardboard, paper, foils, knitting needles etc.
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | 10 mm |
| Depth of jaw: | 15 mm |
| Scale diameter: | 35 mm |
| Feeler shape: | f |
| Spring force: | Self opening |
| Weight, net: | 60 g |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
