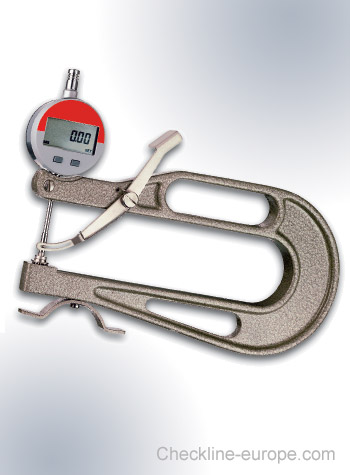

JD-200-25 Digital Thickness Gauge


Made in GermanyThe digital thickness gauge serie has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.

The JD-200-25 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

Features
  • Operating by lifting device - self closing
  • Resolution 0.01 mm (0.001 inch)
  • Includes swing-out foot for on-table operation
  • Dial gauge model: Sylvac S229
  • User selectable units mm and inch
  • RS 232 output for datacollection
  • Easy to read LCD Display

Feeler Shape
To order, please indicate the desired feeler, e.g. JD-200-25-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!



Feeler: A

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge



Feeler: B
For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard





Feeler: C

For soft leather, cardboard, paper, foils, etc.






Feeler: D

For hard leather, plywood, fiberboard, etc.






Feeler: E

For sheet metal, etc.

Accessories

J-CC Connecting Cable


  • RS 232 connecting cable with 9 Pin Plug to connect the gauge with a computer
  • Comes with a windows program to transfer the data to the PC.

More details

J-CC Connecting Cable 125855

Foot Pedal for Digital Thickness Gauge


  • Foot pedal for remote controlled measurements
  • You can work more precise since you don't touch the gauge anymore.
  • Faster data acquisition of series of measurements
  • Can only be used in combination with J-CC! (Not included)

More details

 Foot Pedal for Digital Thickness Gauge 126050

Downloads

Specifications
Resolution:
0.01 mm / 0.001 inch
Measuring range:
0 - 25 mm / 1 inch
Depth of jaws:
200 mm
Display:
LCD 6 digit, 8.5 mm high
Measuring principle:
Capacitive (Sylvac)
Measuring pressure:
< 1.4 N
Feeler shape:
a,b,c,d or e
Lifting device:
Operating by lifting device - self closing
Data output:
RS 232, optical coupling
Power supply:
Battery, 3 V Lithium, CR 2032
Temperature range:
10-45°C
Weight, net:
700 g

Buy Now
Products

Product name
Price
Quantity
JD-200-25-A Kit
€ 640,00
JD-200-25-B Kit
€ 640,00
JD-200-25-C Kit
€ 640,00
JD-200-25-D Kit
€ 640,00
JD-200-25-E Kit
€ 640,00

Accessories

Product name
Price
Quantity
DCPRMD-USB - Connecting cable USB
€ 135,00
FP J-CC - Foot Pedal
€ 315,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
