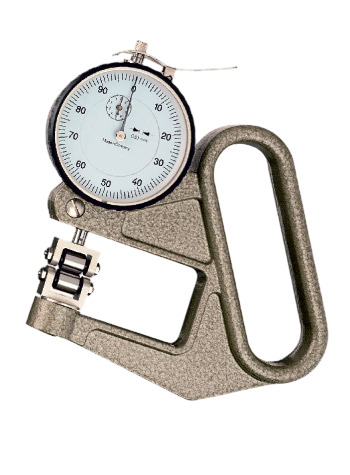

J-50-R Thickness Gauge for moving objects


Made in Germany8.7 mm rollers permit measurement on moving materials such as wires, tapes, foils etc. up to a speed of 150 m / min. The rollers are grounded.

The lower roller is standard equipped with flanges. If wider material has to be measured the lower roller is available without flanges.

Measurement is done by a spring force. Opening by a lifting device (lever) and is self closing.

Note:
Should not be used for continous (online) diameter check

Features
  • 8.7 mm wide rollers permit measurement of moving materials, diameter 8.4 mm
  • Max. Line speed 150 m/min
  • Operating by lifting device - self closing
  • Rollers are grounded
  • 2 models available with resolution 0.01 and 0.005 mm

Available Models
Model Resolution Roller style
J-50-R 0.01 mm Lower roller with flanges
J-50-RO 0.01 mm Lower roller no flanges
J-50-RS 0.005 mm Lower roller with flangs
J-50-RSO 0.005 mm Lower roller no flanges

Accessories

Table Stand for Thickness Gauge


  • Table stand for thickness gauges
  • Converts the handheld thickness gauges into table models
  • Supported models:
    K50, K100, J50, J100, JA50, F1101/30, JD50, JD100, FD50, FD100

More details

 Table Stand for Thickness Gauge 126057

Specifications
Resolution:0.01 mm
Measuring range:0.01 mm - 5.00 mm
Depth of jaw:50 mm
Scale diameter:54 mm
Measuring pressure:1.0 N
Measurement by spring load:Operating by lifting device - self closing
Weight, net:300 g

Buy Now
Products

Product
Price
Quantity
J-50-R Kit (roller with flange)
€ 240,00
J-50-RO Kit (roller without flange)
€ 240,00
J-50-RS Kit (roller with flange)
€ 295,00
J-50-RSO Kit (roller without flange)
€ 310,00

Accessories

Product
Price
Quantity
Table Stand for Thickness Gauge
€ 65,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
