Thickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle
The aluminum housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.

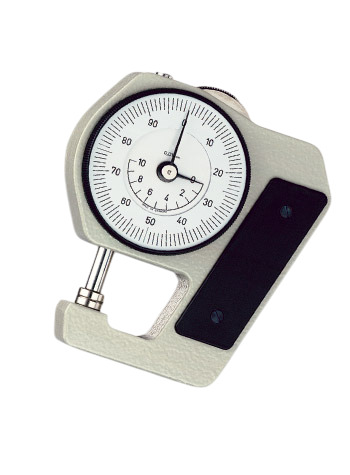

The J-15 model thickness gauge has a feeler designed for soft leather, cardboard, paper, foils etc. Measurement by spring force. Opening by lifting wheel. The model is self closing.
For soft leather, cardboard, paper, foils, knitting needles etc.
|Measuring range:||10 mm|
|Depth of jaws:||18 mm|
|Scale diameter:||40 mm|
|Measuring pressure:||0.8 N|
|Measurement by spring load:||Opening by lifting wheel, self closing|
|Weight, net:||90 g|
