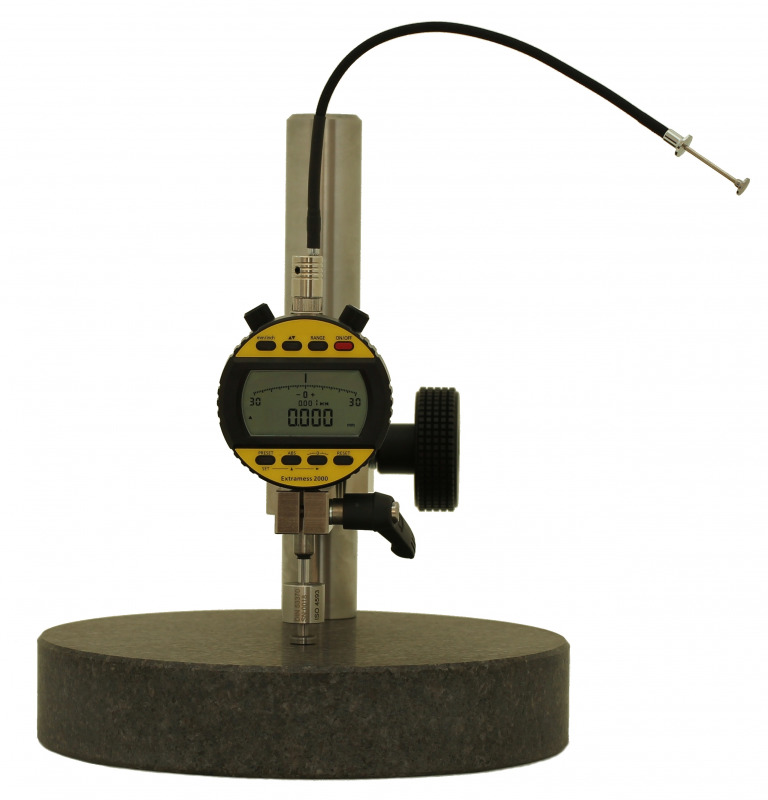

FTG-ISO4593 Thickness gauge for films and foils - ISO 4593

Made in GermanyThe professional thickness gauge FTG-ISO4593 is developed for reliable thickness measurements of films and foils. This thickness gauge conducts measurements conforming the international standard ISO 4593. Reliable measurements are enabled by the use of a constant load force. In combination with the selectable gauge resolutions of 0.001 mm / 0.005 mm / 0.0002 mm repeatable readings have never been this easy. The lifter and cable release can be operated manually.

  • Thickness measurements conform ISO 4593
  • Manufacturer calibration certificate and DAkkS calibration for the dial gauge optional available
  • Constant force load
  • Manual lifter and cable release
  • 3 resolutions selectable (depending on stroke):
    1.8 mm / 0.001 mm
    1.8 mm / 0.005 mm
    0.8 mm / 0.0002 mm

Standards:ISO 4593
Resolution:3 resolutions selectable (depending on the stroke): 0.001 mm / 0.005 mm / 0.0002 mm
Table diameter:200 mm
Net weight:7 kg

Buy Now

TMG-2-F ISO 4593, DIN 53370 Foil Thickness Gauge
€ 2.732,00

TMG-Cert manufacturer inhouse calibration certificate for new gauge
€ 194,00
TMG-DA-CERT DAkkS calibration only for the dial gauge for new gauge
€ 194,00
TMG-2-SOFT Software for TMG-2 Thickness Gauge (incl. cable)
€ 384,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
