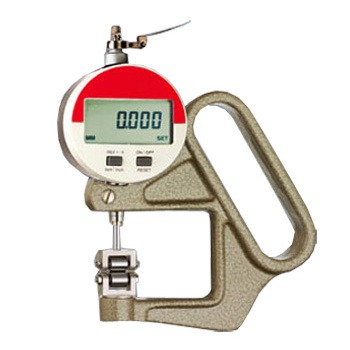

FD-50-R Thickness Gauge for moving objects


Made in Germany8.7 mm rollers permit measurement on moving materials sush as wires, tapes, foils etc. up to a speed of 150 m / min. The rollers are grounded.

The lower roller is standard equipped with flanges. If wider material has to be measured the lower roller is available without flanges.

Measurement is done by a spring force. Opening by a lifting device (lever) and is self closing.

Note:
Should not be used for continous (online) diameter check

FD-50R - FD-50RO

Features

  • 8.7 mm wide rollers permit measurement of moving materials, diameter 8.4 mm rollers are grounded
  • Resolution 0.001 mm (0.0001 inch)
  • User selectable units mm and inch
  • Operating by lifting device - self closing
  • Max. Line speed 150 m/min
  • Easy to read LCD Display
  • RS 232 output for data collection
  • Dial gauge model: Sylvac S 229

Available Models

Model Resolution Roller style
FD-50-R 0.001 mm Lower roller with flanges
FD-50-RO* 0.001 mm Lower roller no flanges

* The lower roller is standard equipped with flanges for guiding the material to be measured. If wider material than 8.7 mm has to be measured the lower roller is available without flanges. To order use Code O e.g. FD-50-RO



Accessories

J-CC Connecting Cable


  • RS 232 connecting cable with 9 Pin Plug to connect the gauge with a computer
  • Comes with a windows program to transfer the data to the PC.

More details

Foot Pedal for Digital Thickness Gauge


  • Foot pedal for remote controlled measurements
  • You can work more precise since you don't touch the gauge anymore.
  • Faster data acquisition of series of measurements
  • Can only be used in combination with J-CC! (Not included)

More details

Table Stand for Thickness Gauge


  • Table stand for thickness gauges
  • Converts the handheld thickness gauges into table models
  • Supported models:
    K50, K100, J50, J100, JA50, F1101/30, JD50, JD100, FD50, FD100

More details


Downloads


Specifications

Resolution:
0.001 mm / 0.0001 inch
Measuring range:
0 - 10 mm / 0.4 inch
Depth of jaw:
50 mm
Display:
LCD 6 digit, 8.5 mm high
Measuring principle:
Capacitive (Sylvac)
Measuring pressure:
< 1.4 N
Measurement by spring load:
Operating by lifting device - self closing
Data output:
RS 232, optical coupling
Power supply:
Battery 3 V Lithium, CR 2032
Temperature range:
10 - 45°C
Weight, net:
300 g

Buy Now

Products


Product name
Price
Quantity
FD-50-R Kit (Roller with flange)
€ 675,00

FD-50-RO Kit (Roller without flange)
€ 675,00



Accessories


Product name
Price
Quantity
DCPRMD-USB - USB Cable For Dial Thickness Gauge to USB
€ 125,00

FP J-CC - Foot Pedal
€ 315,00

TABLE STAND - Table Stand for Thickness Gauge
€ 65,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
