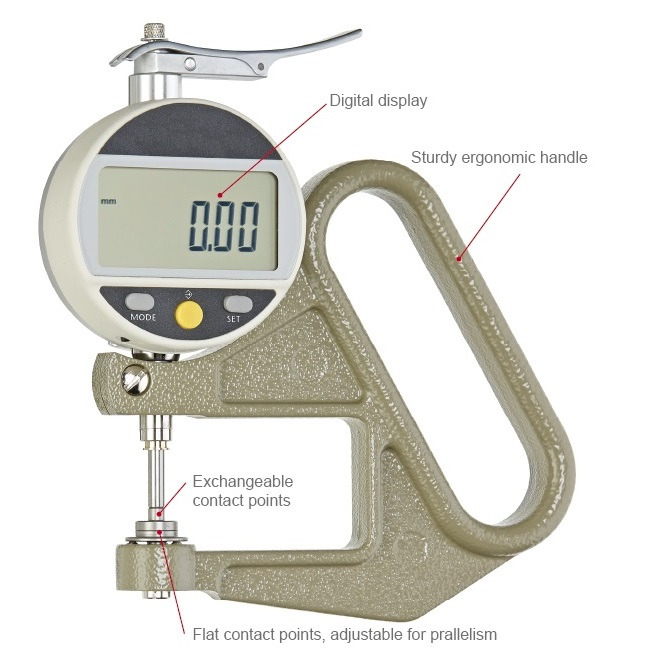

FD-50 Digital Thickness Gauge

The digital thickness gauge series has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.

The FD-50 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

€ 695,00

Order now

Operating by lifting device - self closing
Resolution 0.001 mm (0.0001 inch)
Easy to read LCD Display
User selectable units mm and inch
RS 232 output for data collection
Dial gauge: Sylvac S 229

Feeler Shape

To order, please indicate the desired feeler, e.g. FD-50-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!

Feeler shape

Feeler: A

For rubber, felt*, soft materials*, nonwovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge

Feeler: B
For rubber, felt*, soft materials*, nonwovens*, etc.

*Meets no DIN EN ISO standard

Feeler: C

For soft leather, cardboard, paper, foils, etc.

Feeler: D

For hard leather, plywood, fiberboard, etc.

Feeler: E

For sheet metal, etc.

Downloads

Resolution:	0.001 mm / 0.0001 inch
Measuring range:	0 - 10 mm / 0.4 inch
Accuracy:	± 5 µm
Depth of jaw:	50 mm
Display:	LCD 6 digit, 8.5 mm high
Measuring principle:	Capacitive (Sylvac)
Measuring pressure:	0,7 N ± 20%
Feeler shape:	a,b,c,d or e
Lifting device:	Operating by lifting device - self closing
Data output:	RS 232, optical coupling
Power supply:	Battery 3 V Lithium, CR 2032
Temperature range:	10 - 45°C
Weight, net:	300 g

Products

Item	Product	Price
130537	FD-50-A Digital Thickness Gauge	€ 695,00
130238	FD-50-B Digital Thickness Gauge	€ 695,00
126032	FD-50-C Digital Thickness Gauge	€ 695,00
126033	FD-50-D Digital Thickness Gauge	€ 695,00
126034	FD-50-E Digital Thickness Gauge	€ 695,00

Accessories

Item	Product	Price
134582	DCPRMD-USB Cable For Dial Thickness Gauge to USB	€ 169,00
126360	FD J-CC Footpedal	€ 452,00
126836	Table Stand for Thickness Gauge	€ 85,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
