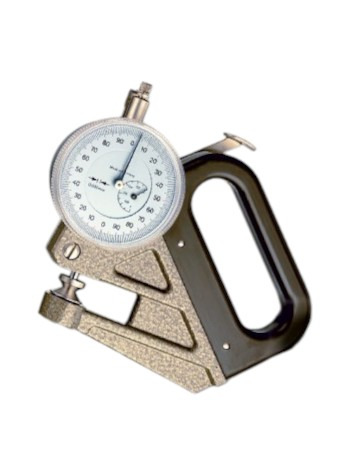

F-1000-30 Thickness Gauge


Made in GermanySpecial-purpose thickness gauge for foils and thin materials with a resolution of 0.001 mm. An insulated handle prevents transfer of heat from the hand to the movement.

Features
  • Special purpose model with resolution of 0.001 mm (1 µm)
  • Operating by lifting device - self closing
  • Insulated hande prevents transfer of heat from the operators´s hand to the handle; to garantee highest accuracy

Feeler Shape

Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.






Accessories

Table Stand for Thickness Gauge


  • Table stand for thickness gauges
  • Converts the handheld thickness gauges into table models
  • Supported models:
    K50, K100, J50, J100, JA50, F1101/30, JD50, JD100, FD50, FD100

More details

 Table Stand for Thickness Gauge 126057

Specifications
Resolution:0.001 mm
Measuring range:1 mm
Accuracy:± 5 µm
Depth of jaw:30 mm
Scale diameter:58 mm
Measuring pressure:2.0 N (On request: 1.2 N or 4.5 N)
Scale:1 revolution = 0.02 mm (2 x 0 - 100)
Feeler shape:F - 6.35 mm Ø flat
Measurment by spring load:Operating by lifting device - self closing
Weight, net:340 g
Warranty:1 year

Buy Now
Product

Product
Price
Quantity
F-1000-30 Foil Thickness Gauge
€ 249,00

Accessories

Product
Price
Quantity
MANUFACTURER-CERT - Calibration Certficate for delivery with a new thickness gauge
€ 50,00
TABLE STAND - Table Stand for Thickness Gauge
€ 65,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
