    Digital Thickness Gauges

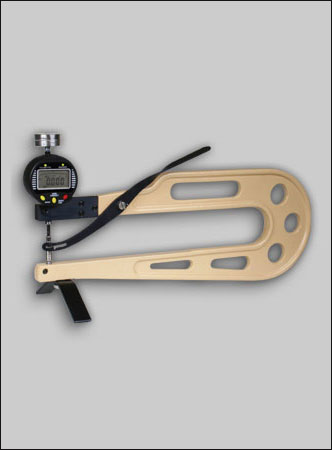

    Explore the DTG-500, a digital thickness gauge that precisely determines the thickness of a variety of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, plywood, and plastic. These models ensure maximum accuracy and resolution thanks to their self-closing mechanism, with a notable resolution of 0.01 mm.Two models available:

    - DTG-500-10: Measurement range from 0 to 10 mm, suitable for standard measurements.

    - DTG-500-25: Measurement range from 0 to 25 mm, ideal for measuring thicker materials.



    Key Features:

    • Self-Closing Mechanism: Ensures high precision and a resolution of 0.01 mm across the entire measurement range.
    • RS 232 Output: Facilitates the collection of digital data for analysis and archiving, compatible with modern data management systems.
    • LCD Display: Allows the user to select measurement units in millimetres or inches, enhancing the flexibility and usability of the device.
    • Zero Setting Button: Enables easy resetting of the gauge before each measurement to ensure accuracy.
    Key Benefits:

    • Reliability and Precision: Designed with a self-closing mechanism that ensures consistent and precise measurements.
    • Adaptability: Suitable for measuring a wide range of materials, making it indispensable across various industrial sectors.
    • Durability: Constructed with high-quality materials that ensure the longevity of the device under intensive use.


    Contact us for more information on how the DTG-500 thickness gauges can enhance your measurement processes and ensure the quality of your materials.
    Price from € 430,00
    Order now
    • Calibration Certificate: Each unit comes with an included calibration certificate, ensuring conformity and precision from the first use.
    • Ease of Use: Equipped with intuitive features such as a lever lifter for opening the gauge and an easy-to-read LCD display.
    Available models

    Available models

    ModelRangeResolutionDepth of Jaw
    DTG-50-100 - 10 mm0.01 mm50 mm
    DTG-50-250 - 25 mm0.01 mm50 mm
    DTG-200-100 - 10 mm0.01 mm200 mm
    DTG-200-250 - 25 mm0.01 mm200 mm
    DTG-300-100 - 10 mm0.01 mm300 mm
    DTG-300-250 - 25 mm0.01 mm300 mm
    DTG-500-100 - 10 mm0.01 mm500 mm
    DTG-500-250 - 25 mm0.01 mm500 mm
    Feeler Types

    To place the order, please specify the desired feeler, for example: DTG-500-10-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

    Feeler RMU A

    Feeler: A

    For hard leather, glass, metal sheets.
    Feeler RMU B

    Feeler: B

    For wood, rubber, soft leather, foil, etc.
    Feeler RMU C

    Feeler: C

    For soft rubber, felt, fleece.
    Feeler RMU D

    Feeler: D

    For rubber rings, round materials.
    Feeler RMU E

    Feeler: E

    For paper, cardboard, chipboard and fiberboard, and plywood.
    Feeler RMU F

    Feeler: F

    For metal sheets, glass, round materials.
    Feeler RMU G

    Feeler: G

    For very rigid materials.
    Feeler RMU H

    Feeler: H

    For foams and insulating materials.
    Feeler RMU I

    Feeler: I

    For very soft foams and insulating materials.
    Feeler RMU M

    Feeler: M

    For rubber sheets, felt, soft materials.
    Resolution:0.01 mm
    Measuring range:DTG-500-10: 0-10 mm
    DTG-500-25: 0-25 mm
    Depth of jaw:500 mm
    Measuring pressure:2 N
    Measuring principle:Self closing
    Feeler shape:A/B/C/D/E/F/G/H/I/M
    Display:LCD 4 digit, 8 mm high
    Measuring system:Sylvac
    Weight, net (gross):1600 g (2000 g)

    Order Now

    Products
    Item Product Price  Quantity Action
    137586DTG-500-10-A Thickness gauge with feeler A (diameter feeler 6mm) € 439,00
    136479DTG-500-10-C Thickness gauge with feeler C (diameter feeler 25 mm) € 430,00
    138134DTG-500-10-G Thickness gauge with feeler G (diameter feeler 1.5 mm) € 430,00
    136896DTG-500-25-A Thickness gauge with feeler A (diameter feeler 6 mm) € 475,00
    135508DTG-500-25-B Thickness gauge with feeler B (diameter feeler 10 mm) € 466,00
    136478DTG-500-25-C Thickness gauge with feeler C (diameter feeler 25 mm) € 466,00
    139544DTG-500-25-E Thickness gauge with feeler E (diameter feeler 16 mm) € 466,00
    136691DTG-500-25-F Thickness gauge with feeler F (diameter feeler 3.5 mm) € 475,00
    138071DTG-500-25-H Thickness gauge with feeler H (diameter feeler 30 mm) € 475,00
    134992DTG-500-25-I Thickness gauge with feeler I (diameter feeler 50 mm) € 491,00
    134659DTG-500-25-M Thickness gauge with feeler M (diameter feeler 20 mm) € 466,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
