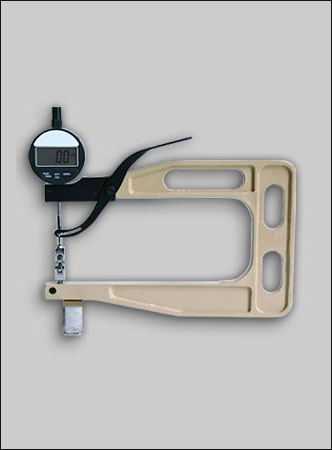

DMD-820-1 Digital Thickness Gauge | DMD-820-1

Made in GermanyThe DMD-820-1 digital thickness gauge determines the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

With the self-closing mechanism the DMD-820-1 ensures highest accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 25 mm.

  • RS-232 output for easy data output
  • Lifting device (lever) for opening
  • Easy zero setting by a button push
  • Spring force measurement
  • LCD display with user selectable measurement units
  • Calibration certificate included

Available models
ModelRangeResolutionDepth of Jaw
DMD-30 - 10 mm0.01 mm50 mm
DMD-3-10 - 25 mm0.01 mm50 mm
DMD-8200 - 10 mm0.01 mm200 mm
DMD-820-10 - 25 mm0.01 mm200 mm
DMD-8300 - 10 mm0.01 mm300 mm
DMD-830-10 - 25 mm0.01 mm300 mm
DMD-8500 - 10 mm0.01 mm500 mm
DMD-850-10 - 25 mm0.01 mm500 mm

Available feelers
When ordering the DMD-820-1, please indicate your desired feeler, for example "DMD-820-1-B" for the gauge with feeler "B". Only your desired feeler shape is included.

Resolution:0.01 mm
Measuring Range:0-25 mm
Depth of jaw:200 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shape:A/B/C/D/E
Display:LCD 4 digit, 8 mm high
Measuring system:Sylvac
Weight, net (gross):700 g (750 g)

Buy Now

DMD-820/1-A Digital Thickness gauge DMD 820/1 with feeler A (feeler r=6.0 mm)
€ 425,00
DMD-820/1-B Digital Thickness gauge DMD 820/1 with feeler B ( Ø 10mm)
€ 415,00
DMD-820/1-C Digital Thickness gauge DMD 820 with feeler C (diameter feeler 25 mm)
€ 415,00
DMD-820/1-D Digital Thickness gauge DMD 820/1 with feeler D ( Ø 5mm)
€ 415,00
DMD-820/1-E Digital Thickness gauge DMD 820/1 with feeler E ( Ø 16mm)
€ 415,00
DMD-820/1-F Digital Thickness gauge DMD 820/1 with feeler F ( Ø 3,5mm)
€ 415,00
DMD-820/1-G Digital Thickness gauge DMD 820/1 with feeler G (feeler r=1.5 mm)
€ 415,00
DMD-820/1-H Digital Thickness Gauge DMD 820/1 with feeler H (diameter feeler 30 mm)
€ 425,00
DMD-820/1-I Digital Thickness gauge DMD 820/1 with feeler I (diameter feeler 50 mm)
€ 437,00
DMD-820/1-M Digital Thickness Gauge DMD 820/1 with feeler M ( Ø 20mm)
€ 415,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
