Analogue Thickness Gauges

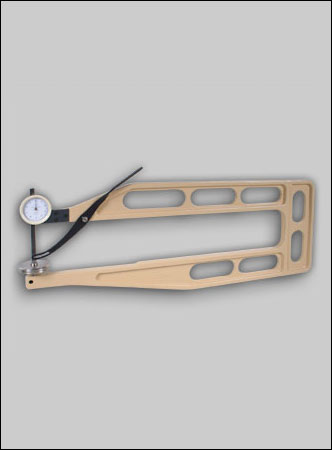

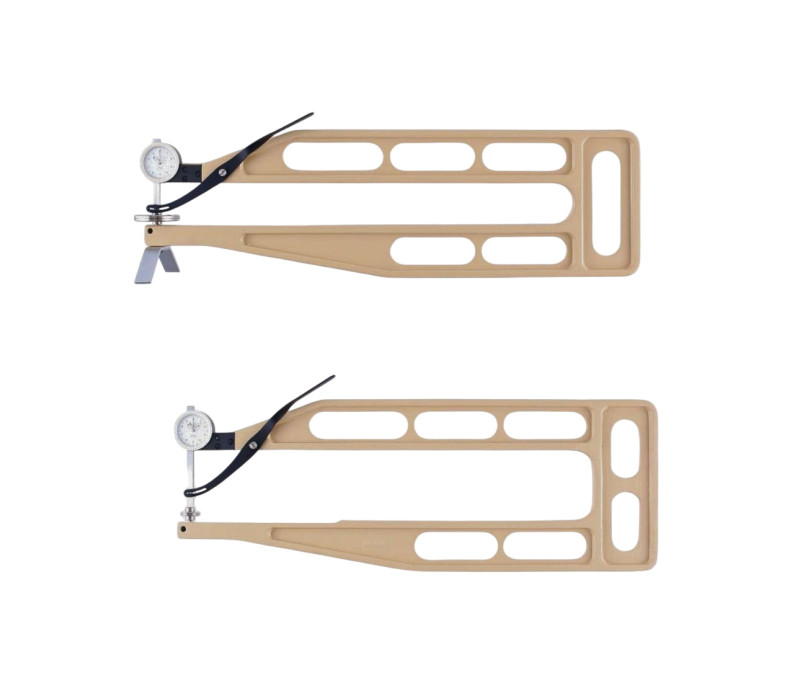

The ATG-500 analogue thickness gauge is designed to accurately determine the thickness of a wide variety of materials, such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood and plastics. With its self-closing mechanism and robust construction, it ensures reliable measurements even in demanding industrial environments. Available in two versions depending on the measuring range:

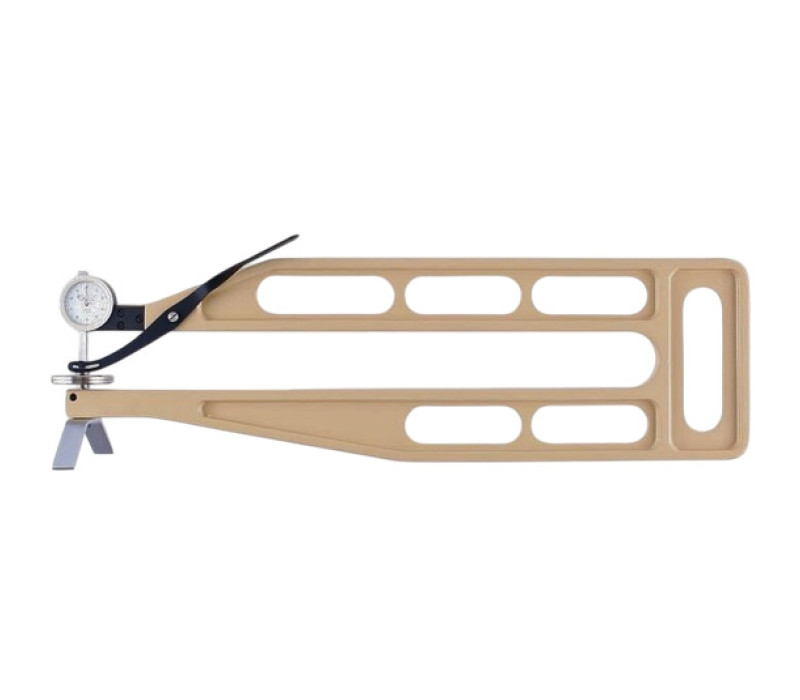

- ATG-500-25: Measuring range from 0 to 25 mm

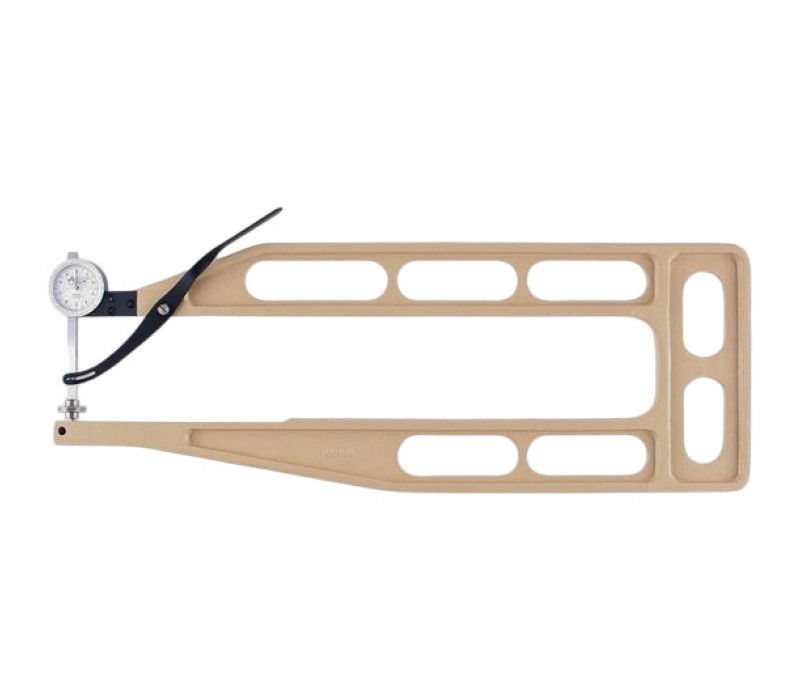

- ATG-500-50: Measuring range from 0 to 50 mm

Key Features:

Lever-operated opening: Easy-to-use lifting mechanism for precise handling.
Automatic closing mechanism: Ensures the gauge remains closed when not in use, maintaining consistent measurement conditions.
Spring force measurement: Ensures constant pressure is applied during each measurement.
Robust design: Made with a cast aluminium frame for long service life and high durability.

Key Benefits:

High precision: Reliable readings with 0.1 mm resolution for consistent quality control.
Extended jaw depth: 500 mm, ideal for large samples or hard-to-reach areas.
Versatile use: Suitable for various industries such as automotive, packaging, construction and more.

Contact us for further information or personalised advice on the ATG-500 and its configurations.

Price from € 249,00

Order now

Available ranges: 0–25 mm (ATG-500-25) and 0–50 mm (ATG-500-50).
Resolution: 0.1 mm for fast and accurate measurements.

Available Models

Model	Range	Resolution	Jaw Depth
ATG-200-25	0 - 25 mm	0.1 mm	200 mm
ATG-200-50	0 - 50 mm	0.1 mm	200 mm
ATG-300-25	0 - 25 mm	0.1 mm	300 mm
ATG-300-50	0 - 50 mm	0.1 mm	300 mm
ATG-350-75	0 - 75 mm	0.1 mm	350 mm
ATG-400-100	0 - 100 mm	0.1 mm	400 mm
ATG-500-25	0 - 25 mm	0.1 mm	500 mm
ATG-500-50	0 - 50 mm	0.1 mm	500 mm
ATG-650-50	0 - 50 mm	0.1 mm	650 mm

Feeler Types

To place the order, please specify the desired feeler, for example: ATG-500-25-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For hard leather, glass, metal sheets.
	Feeler: B For wood, rubber, soft leather, foil, etc.
	Feeler: C For soft rubber, felt, fleece.
	Feeler: D For rubber rings, round materials.
	Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood.
	Feeler: F For metal sheets, glass, round materials.
	Feeler: G For very rigid materials.
	Feeler: H For foams and insulating materials.
	Feeler: I For very soft foams and insulating materials.
	Feeler: M For rubber sheets, felt, soft materials.

Resolution:	0.1 mm
Measuring range:	ATG-500-25: 0–25 mm ATG-500-50: 0–50 mm
Jaw depth:	500 mm
Measuring pressure:	2 N
Measuring principle:	Self-closing
Feeler shape:	A/B/C/D/E/F/G/H/I/M
Net weight (gross):	1600 g (1650 g)

Products

Item	Product	Price
133918	ATG-500-25-A - Analogue Thickness Gauge, Feeler A	€ 259,00
133919	ATG-500-25-B - Analogue Thickness Gauge, Feeler B	€ 249,00
133920	ATG-500-25-C - Analogue Thickness Gauge, Feeler C	€ 249,00
133921	ATG-500-25-D - Analogue Thickness Gauge, Feeler D	€ 249,00
133922	ATG-500-25-E - Analogue Thickness Gauge, Feeler E	€ 249,00
133923	ATG-500-25-F - Analogue Thickness Gauge, Feeler F	€ 249,00
133924	ATG-500-25-G - Analogue Thickness Gauge, Feeler G	€ 249,00
133925	ATG-500-25-H - Analogue Thickness Gauge, Feeler H	€ 259,00
133926	ATG-500-25-I - Analogue Thickness Gauge, Feeler I	€ 274,00
133927	ATG-500-25-M - Analogue Thickness Gauge, Feeler M	€ 249,00

Accessories

Item	Product	Price	Quantity	Action
140475	ATG-500-FOOT- Table Stand for ATG-500 models	€ 23,50

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
