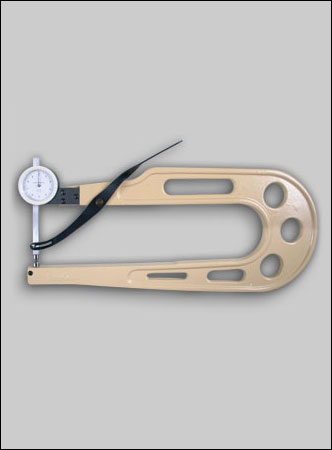

ATG-300 Analogue Thickness Gauges
The ATG-300 analogue thickness gauge is designed to accurately measure the thickness of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics and more. Its robust construction and self-closing mechanism ensure reliable and repeatable readings, even under demanding operating conditions. Available in two versions depending on the measuring range:
- ATG-300: Measuring range 0–25 mm
- ATG-300-50: Measuring range 0–50 mm
Key Features:
- Lever-operated opening: Easy operation with assisted lifting mechanism.
- Self-closing mechanism: Increases convenience and efficiency in repeated measurements.
- Spring force measurement: Ensures constant pressure throughout the measurement process.
- Robust construction: Cast aluminium housing, ideal for industrial environments.
Key Benefits:
- High precision: 0.1 mm resolution for consistent and detailed readings.
- Application versatility: Suitable for various sectors including automotive, textiles, packaging, and more.
- Ergonomic design: Minimises operator fatigue and improves productivity.
Contact us for more information on how the ATG-300 can be integrated into your workflow.
Features
- Jaw depth: 300 mm, ideal for large samples.
- Compatible with desktop base: Optional accessory available for bench-top conversion.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| ATG-200 | 0 - 25 mm | 0.01 mm | 200 mm |
| ATG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
| ATG-300 | 0 - 25 mm | 0.01 mm | 300 mm |
| ATG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
| ATG-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| ATG-400 | 0 - 100 mm | 0.01 mm | 400 mm |
| ATG-500 | 0 - 25 mm | 0.01 mm | 500 mm |
| ATG-500-50 | 0 - 50 mm | 0.01 mm | 500 mm |
| ATG-650 | 0 - 50 mm | 0.01 mm | 650 mm |
To place the order, please specify the desired feeler, for example: ATG-300-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | ATG-300: 0–25 mm ATG-300-50: 0–50 mm |
| Jaw depth: | 300 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self-closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Net weight (gross): | 1000 g (1050 g) |
