Analogue Thickness Gauges

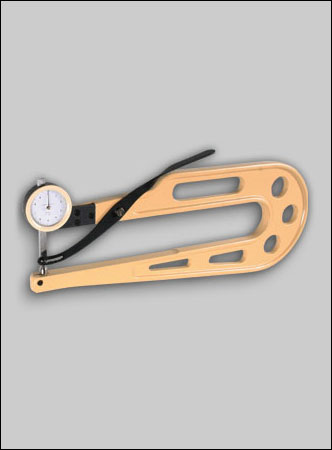

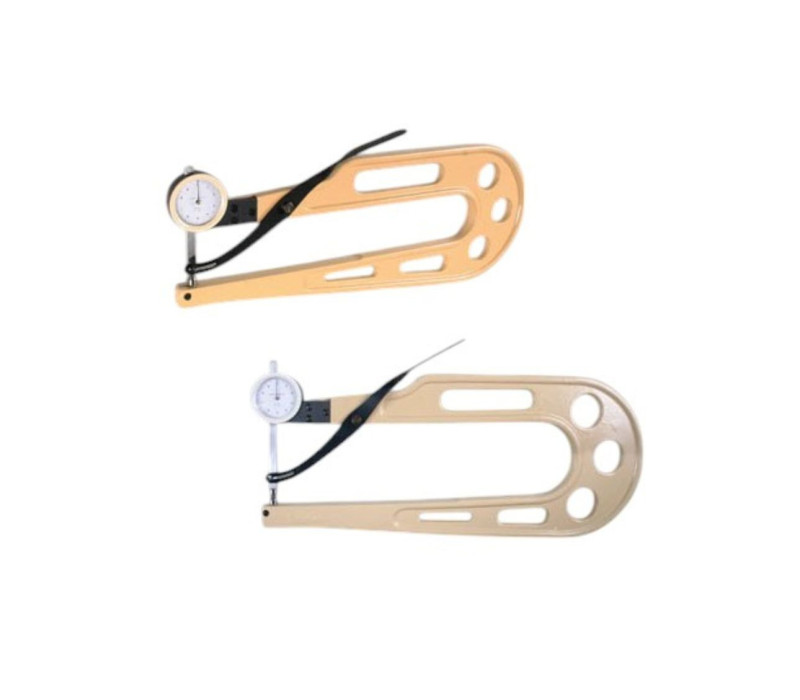

The ATG-300 analogue thickness gauge is designed to accurately measure the thickness of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics and more. Its robust construction and self-closing mechanism ensure reliable and repeatable readings, even under demanding operating conditions. Available in two versions depending on the measuring range:

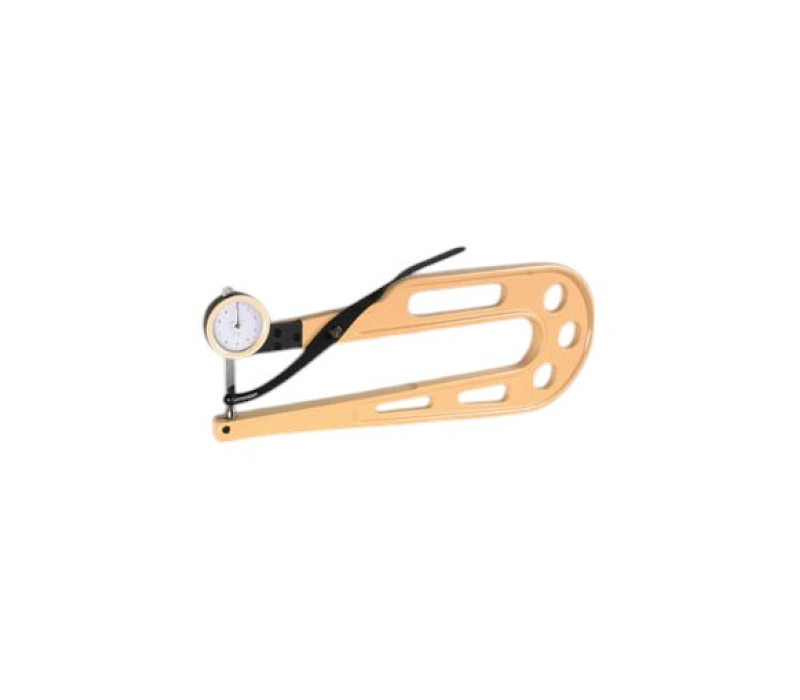

- ATG-300-25: Measuring range 0–25 mm

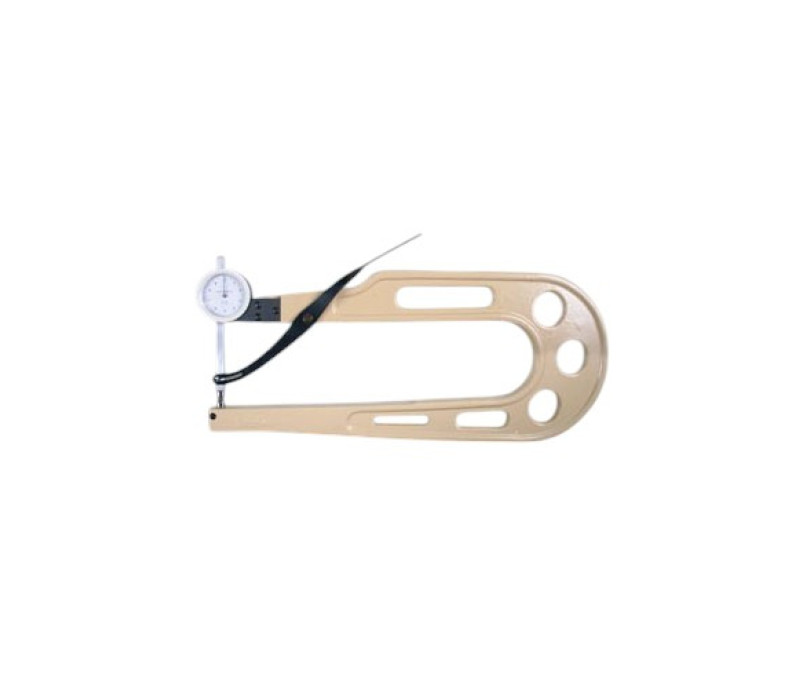

- ATG-300-50: Measuring range 0–50 mm

Key Features:

Lever-operated opening: Easy operation with assisted lifting mechanism.
Self-closing mechanism: Increases convenience and efficiency in repeated measurements.
Spring force measurement: Ensures constant pressure throughout the measurement process.
Robust construction: Cast aluminium housing, ideal for industrial environments.

Key Benefits:

High precision: 0.1 mm resolution for consistent and detailed readings.
Application versatility: Suitable for various sectors including automotive, textiles, packaging, and more.
Ergonomic design: Minimises operator fatigue and improves productivity.

Contact us for more information on how the ATG-300 can be integrated into your workflow.

Price from € 212,00

Shop now

Jaw depth: 300 mm, ideal for large samples.
Compatible with desktop base: Optional accessory available for bench-top conversion.

Available Models

Model	Range	Resolution	Jaw Depth
ATG-200-25	0 - 25 mm	0.1 mm	200 mm
ATG-200-50	0 - 50 mm	0.1 mm	200 mm
ATG-300-25	0 - 25 mm	0.1 mm	300 mm
ATG-300-50	0 - 50 mm	0.1 mm	300 mm
ATG-350-75	0 - 75 mm	0.1 mm	350 mm
ATG-400-100	0 - 100 mm	0.1 mm	400 mm
ATG-500-25	0 - 25 mm	0.1 mm	500 mm
ATG-500-50	0 - 50 mm	0.1 mm	500 mm
ATG-650-50	0 - 50 mm	0.1 mm	650 mm

Feeler Types

To place the order, please specify the desired feeler, for example: ATG-300-25-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For hard leather, glass, metal sheets.
	Feeler: B For wood, rubber, soft leather, foil, etc.
	Feeler: C For soft rubber, felt, fleece.
	Feeler: D For rubber rings, round materials.
	Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood.
	Feeler: F For metal sheets, glass, round materials.
	Feeler: G For very rigid materials.
	Feeler: H For foams and insulating materials.
	Feeler: I For very soft foams and insulating materials.
	Feeler: M For rubber sheets, felt, soft materials.

Resolution:	0.1 mm
Measuring range:	ATG-300-25: 0–25 mm ATG-300-50: 0–50 mm
Jaw depth:	300 mm
Measuring pressure:	2 N
Measuring principle:	Self-closing
Feeler shape:	A/B/C/D/E/F/G/H/I/M
Net weight (gross):	1000 g (1050 g)

Products

Item	Product	Price
136501	ATG-300-50-A - Analogue Thickness Gauge, Feeler A	€ 250,00
135794	ATG-300-25-B - Analogue Thickness Gauge, Feeler B	€ 212,00
140470	ATG-300-50-B - Analogue Thickness Gauge, Feeler B	€ 240,00
134587	ATG-300-25-C - Analogue Thickness Gauge, Feeler C	€ 212,00
135766	ATG-300-50-C - Analogue Thickness Gauge, Feeler C	€ 240,00
136162	ATG-300-25-G - Analogue Thickness Gauge, Feeler G	€ 212,00
136719	ATG-300-50-G - Analogue Thickness Gauge, Feeler G	€ 240,00
135740	ATG-300-25-H - Analogue Thickness Gauge, Feeler H	€ 221,00
137720	ATG-300-50-H - Analogue Thickness Gauge, Feeler H	€ 250,00
134746	ATG-300-25-I - Analogue Thickness Gauge, Feeler I	€ 237,00
136662	ATG-300-50-I - Analogue Thickness Gauge, Feeler I	€ 265,00

Accessories

Item	Product	Price	Quantity	Action
140472	ATG-300-FOOT- Table Stand for ATG-300 models	€ 23,50

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
