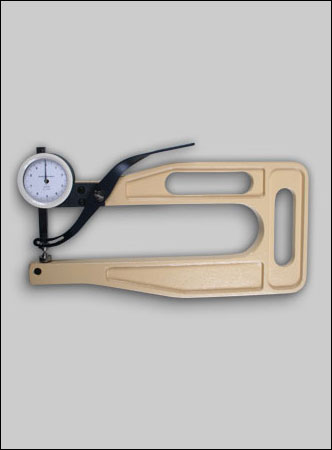

DM-820 Analog Dial Thickness Gauge | DM-820


Made in GermanyThe analog dial thickness gauge DM-820 determines the thickness of various materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. This thickness gauge is self closing and guarantees high accuracy and resolution.


Features
  • Opening by lever
  • Measuring by spring force

Available Models
Model Range Resolution Depth of Jaw
DM-820 0 - 25 mm 0.1 mm 200 mm
DM-820-1 0 - 50 mm 0.1 mm 200 mm
DM-830 0 - 25 mm 0.1 mm 300 mm
DM-830-1 0 - 50 mm 0.1 mm 300 mm
DM-835 0 - 75 mm 0.1 mm 350 mm
DM-840 0 - 100 mm 0.1 mm 400 mm
DM-850 0 - 25 mm 0.1 mm 500 mm
DM-850-1 0 - 50 mm 0.1 mm 500 mm
DM-865 0 - 25 mm 0.1 mm 650 mm
DM-865-1 0 - 50 mm 0.1 mm 650 mm

Feeler Shape
When ordering the DM-820, please indicate your desired feeler, for example "DM-820-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications
Resolution:
0.1 mm
Measuring range:
25 mm
Depth of jaw:
200 mm
Measuring pressure:
2 N
Measuring principle:
Self closing
Feeler shape:
A/B/C/D/E/F/G/H/I/M
Weight, net (gross):
700 g (750 g)
