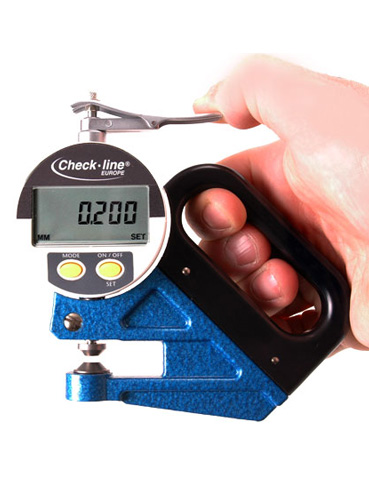

DDM-2000 Digital Precision Foil Thickness Gauge


Made in Germany2 models available:
- DDM-2007 with feeler pressure of 0.7 N
- DDM-2020 with feeler pressure of 2.0 N

Measuring range: 3 mm (.1")
Resolution: 0.001 mm (1 µm / .00005")
Maximum error: ± 3 µm (.00012")

This handy thickness gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.


Features

  • Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
  • Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure
  • Special purpose model with resolution of 0.001 mm (1 µm)
  • Accuracy of ± 3 µm (.00012")

Feeler Shape


Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.






Optional Table Stand


An optional table stand is available to convert a the handheld thickness gauge into a table model.

Simply place the thickness gauge into the table stand and tighten the Hex screws with the included Allen Hex fastener.

Specifications

Resolution:
0.001 mm (1 µm / .00005")
Measuring range:
3 mm (.1")
Accuracy:
± 3 µm (.00012")
Depth of jaw:
30 mm (1,18")
Feeler Shape:
F - 6,35 mm Ø flat
Measuring pressure:
available with 0.7 N and 2.0 N closing pressure
Measurment by spring load:
Operated by lifting device - self closing
Warranty:
1 year

Buy Now

Products


Product name
Price
Quantity
DDM-2007 - Digital Thickness Gauge - 0.7N Pressure
€ 565,00

DDM-2020 - Digital Thickness Gauge - 2.0N Pressure
€ 565,00



Accessories


Product name
Price
Quantity
TABLE-STAND - Table Stand for Thickness Gauge
€ 65,00

DCPRMD-USB - Cable For Dial Thickness Gauge to USB
€ 135,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
