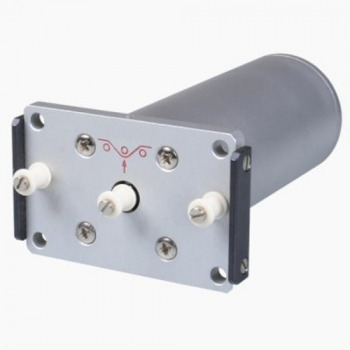

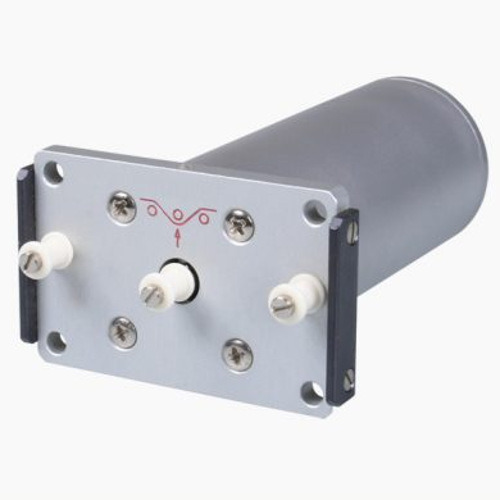

TSP Stationary Tension Sensor has non-rotating Aluminum-oxide Ø 5.2 mm ceramic pins, applicable for threads and fibers with a maximum line speed of 6000 m/min. up to max. 1000 tex.
It accurately measures the running tension of measuring hi-speed textiles, fibers and similar process materials.
Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.
Can be used for process diagnostics, for continuously monitoring and recording of online tensions. It can also be used as part of a closed-loop control system with a 3rd-Party controller.
The sensor can be mounted on a flat plate using the supplied thru holes in the housing body or fixed using the holes in the front plate, inserted thru a round hole in the machine frame or plate.
The Checkline TSP Stationary Electronic Tension sensor with non-rotating ceramic pins is available in 5 Tension Ranges:
from from 0 - 50 cN up to 0 - 1000 cN
The TSP Stationary Electronic Tension sensor is available with various Output Signals:
The TSP Stationary Tension Sensor comes with a Certificate of Compliance with the order 2.1 according EN 10204.
Inspection Certificate 3.1 according EN 10204 with calibration certificate.
|Model||Tension Range||Measuring Head Width*||SCHMIDT Calibration Material**|
|TSP-50||0 – 50 cN||64 mm||PA: 0.12 mm Ø|
|TSP-100||0 – 100 cN||64 mm||PA: 0.12 mm Ø|
|TSP-200||0 – 200 cN||64 mm||PA: 0.12 mm Ø|
|TSP-500||0 – 500 cN||64 mm||PA: 0.20 mm Ø|
|TSP-1000||0 – 1000 cN||64 mm||PA: 0.30 mm Ø|
|Other tension ranges and measuring head widths available on request.
Other measuring units available, such as g.
* Outer dimensions of front plate
** Suitable for 95 % of applications PA = Polyamide Monofilament
Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.
|Model with tension range||Code output signal (if not standard)||Complete item No.|
|E10061 - Diode Plug with Bayonet Cap Diode Plug|
|Diode Plug suitable for sensors of TS series,
cable outlet 3.5 – 6 mm
Order number: E10061
|EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs|
|Connecting cable with 2 diode plugs, for analog output and voltage signal.
For connecting the TS sensor to the display unit SCD-1.
Order number: EK0603, Length 3 m
Order number: EK0605, Length 5 m
Order number: EK0610, Length 10 m
|EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends|
Connecting cable with 1 diode plug and open ends, for analog output and current signal.
Other cable length available on request!
