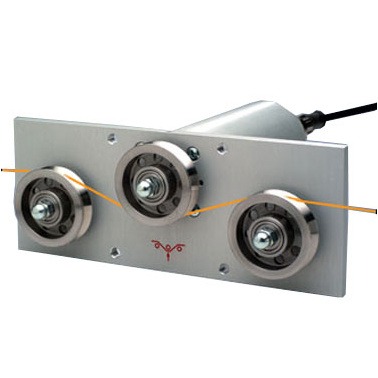

TE-24 Heavy-Duty Tension Sensor


Made in Germany6 Tension Ranges
0-1000 g up to 0-50.0 Kg

Heavy-duty, hardened steel rollers makes this model especially suitable for tire cord, wires and similar filaments to high-impact loading.

Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Features
  • Precision strain gauge sensing for highest accuracy and repeatability
  • 30 mm hardened steel rollers are rated for linear speeds up to 2400 m/min
  • 0-1 V DC output, proportional to tension (0-10 V DC optional)
  • Optional 10 ft. cable, TE-CABLE-CN is recommended. Longer lengths are available
  • Surface mount electronics provide long-term reliability
  • Frequency response of 100 Hz
  • Custom configurations can be supplied to meet nearly any application requirement
  • Sensor can be easily mounted using four holes in front panel or using a “collar” around the cylindrical sensor body

Tension Ranges
ModelRanges
TE-1K-24A 0–1000 g
TE-2K-24A* 0–2000 g
TE-5K-24C 0–5.00 Kg
TE-10K-24C 0–10.00 Kg
TE-20K-24D 0–20.00 Kg
TE-50K-24E 0–50.0 Kg
*Can be supplied with a “B” configuration with low material deflection for wire applications.

Related Products

TD-1-TE Tension Indicator


  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose

More details

TD-1-TE Tension Indicator

Specifications
Accuracy
± 1.5% FS or better
Sensor Excitation
12 - 18 VDC, 21mA
Middle Roller Deflection
0.5 mm (maximum)
Sensor Output
0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension
Overload Protection
200% FS
Housing Material
Aluminum
Roller Diameter (Root)
29.5 mm
Roller Material
Hardened Steel
Maximum Linear Speed
2400 m/min
5000 m/min
40 to 105° F (5-40° C)
Frequency Response
100 Hz
