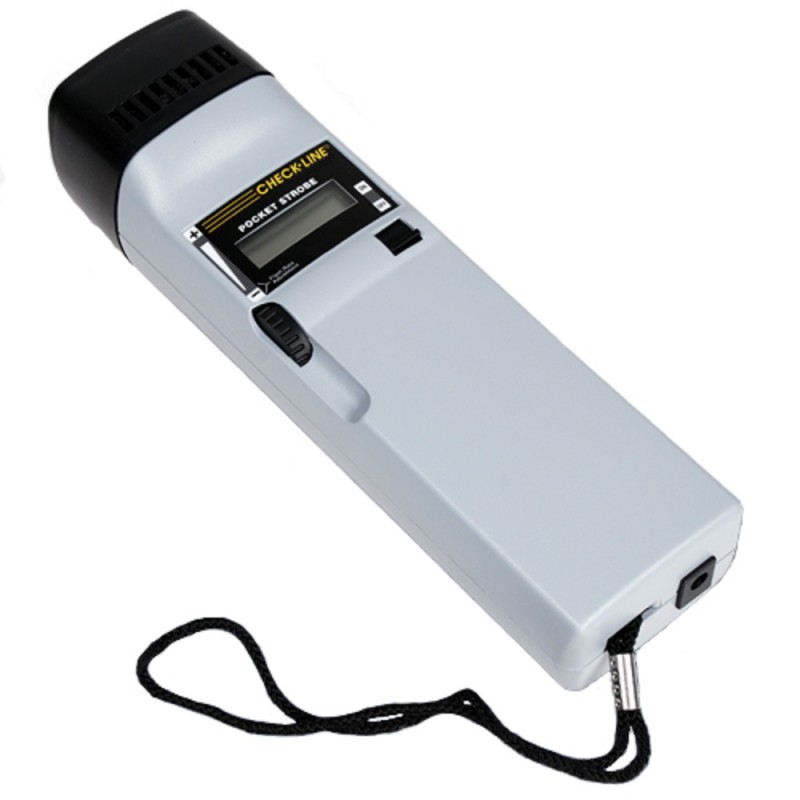

PK2X-OT Pocket Stroboscope With Output Signal


Made in GermanystroboscopePK2X-OT With Output Signal and Jack
30 - 12,500 RPM/FPM

30 - 12.500 RPM/FPM
and higher using harmonics

The PK2X-OT hand-held Pocket Strobe® is a convenient and accurate measuring instrument for performing non-contact RPM measurements on rotating or reciprocating parts or components as well as a means for inspection of moving parts/machinery by "freezing" or "slowing down" the action. This stroboscopic effect is accomplished by matching the flash rate of the stroboscope with the repetitive rate (RPM) of motion of the target. Furthermore, a slow motion effect can be accomplished with a slight mismatch of the relative speeds.

The PK2X-OT stroboscope is powered by a rechargeable internal battery or directly from an AC power source allowing for continuous use if necessary, or continued use when the battery power is low. Its small size, lightweight design makes it perfect for use by field technicians or maintenance personnel.

The PK2X-OT offers significant improvements from the previous generation model PK2 including the following (refer to table below):
• 50% improvement in flash brightness
• 100% improvement in battery run-time
• Doubles the choice of power by permitting operation during re-charge or continuous operation when connected to AC-power

The PK2X-OT continues to offer the highest reliability, refined by over 10-years of continuous design & manufacturing improvements since the original Pocket Strobe Model PK1 was introduced in 1996.

The PK2X-OT requires one hand to operate, yet delivers performance comparable to much larger and heavier "pistol-grip" type models. Ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value.


Features

  • Battery run time of 2 hours on full charge
  • Internal rechargeable Lithium Ion battery uses latest “smart-charge” technology for longest possible life and 2-Hour run-time on a single charge
  • Operates when being recharged or run continuously via AC-power
  • Includes Int'l Traceable Calibration Certificate
  • Accepts input from sensor for external flash triggering
  • Bright XENON flash intensity (over 1200 Lux) with life of 200 million flashes
  • Resolution of ±1 RPM over the entire range with highly accurate speed control and drift-free operation
  • Provided with a threaded insert on underside of strobe for mounting to articulating arm or other fixture
  • AC-Adapter/Charger can be used anywhere worldwide
    (100 – 240V AC) with plug adapters provided for N. America, Europe, UK & Australia AC outlets
  • Portable, lightweight and rugged construction
  • Not CE Certified

Complete Kit

Includes Stroboscope, Universal AC-Adapter/Charger (with plug adapters provided for North America, Europe, UK & AU), external input/output jack, Traceable Calibration Certificate and instruction manual, all supplied in a hard shell carrying case.

Accessories

Click here for Stroboscope Accessories
PK2X-TBE Spare Xenon Flash Tube
PK2-HLT Padded-vinyl & leather belt-clip holster
PK2-PHONO Connection jack for external
trigger input signal
PK2-TRI Telescoping tripod
PK2-BNC External triggering cable; 6 ft. long;
1/8" male to BNC male connections
PK2-8M External triggering cable; 6 ft. long;
1/8" male to 1/8" male connections
PK2X-BAT Replacement Li-Ion Battery Pack
PK2X-AC-BC Replacement Universal Battery
Charger (100-240 VAC)

Downloads


Related Products

DT-TRI Mini Tripod for Tachometers and Stroboscopes


  • Extendable legs reach 7" in height (5" when retracted)

More details

Cic-Strobe Stroboscope Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively using a standard which is traceable to Britisch national standards and International standards ISO/IEC 17025

More details

PK2X-TBE Xenon Flash Tube


  • Xenon Flash Tube

More details

PK2-HLT Padded-vinyl & leather belt-clip holster


  • Belt-clip holster

More details

PK2-TRI Telescoping tripod


  • Telescoping tripod

More details

PK2X-BAT Lithium Ion Battery Pack


  • Lithium Ion Battery Pack

More details

PK2X-AC-BC Universal AC-Adapter/Charger


  • Universal AC-Adapter/Charger

More details

PK2-BNC External triggering cable for strobscopes


  • External triggering cable for strobscopes

More details

PK2-8M External triggering cable


  • External triggering cable

More details


Specifications

Flash Range:
30 - 12,500 FPM
Flash Brightness:
1200 Lux (8"/20cm distance @ 4500 fpm)
Accuracy:
± 0.01% over entire range + 1 LSD
± 0.04 Hz
Resolution:
± 1 FPM over entire range
Display:
5-digit LCD
Display Update:
0.5 seconds
Flash Energy:
170 mJ
Flash Duration:
< 9 µs
Flash Tube Longevity:
200 million flashes (at 6,000 fpm)
Flash Color Temp:
6000K - 6500K
External Trigger:
0-5 volt, DTL/TTL compatible 1/8" jack
Trigger Signal Output:
0-5 volt, DTL/TTL compatible 1/8" jack
(on PK2X-OT Model Only)
Operating Time:
Battery, 2 hours
AC-Power, continuous
Battery Type:
Lithium Ion (Li-Ion)
Battery Charger:
Power Required - 100-240 VAC, 50/60 Hz
Output - 4.8-12 VDC @ 600 mA max
Charging Time - 2-3 hours, typical
Overcharge Protection:
Yes
CE Certification:
No
Weight:
0.9 lbs (415 grams) including battery
Housing Material:
High Impact ABS Plastic
Reflector Material:
Aluminum
Tripod Mount:
1/4-20, female insert
Operating Temp.:
32 to 104° F (0 to 40° C)
Dimensions:
240 x 65 x 40mm (LxWxH)
Warranty:
1 year

Buy Now

Product


Product name
Price
Quantity
PK2X-OT Complete kit
€ 659,00



Accessories


Product name
Price
Quantity
PK2X-TBE - Spare Flash tube
€ 60,00

PK2-HLT - Holster for PK2X
€ 25,00

PK2-PHONO - Connection jack for external trigger input signal
€ 2,50

PK2-TRI - Tripod for PK2 strobe
€ 60,00

PK2X-BAT - Replacement Battery Pack
€ 90,00

PK2X-AC-BC - Replacement Universal Battery Charger (100-240 VAC)
€ 87,00

PK2-BNC - External triggering cable; 1.8m; 1/8" male to BNC male connections
€ 45,00

PK2-8M - External triggering cable; 6 ft. long; 1/8" male to 1/8" male connections
€ 45,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
