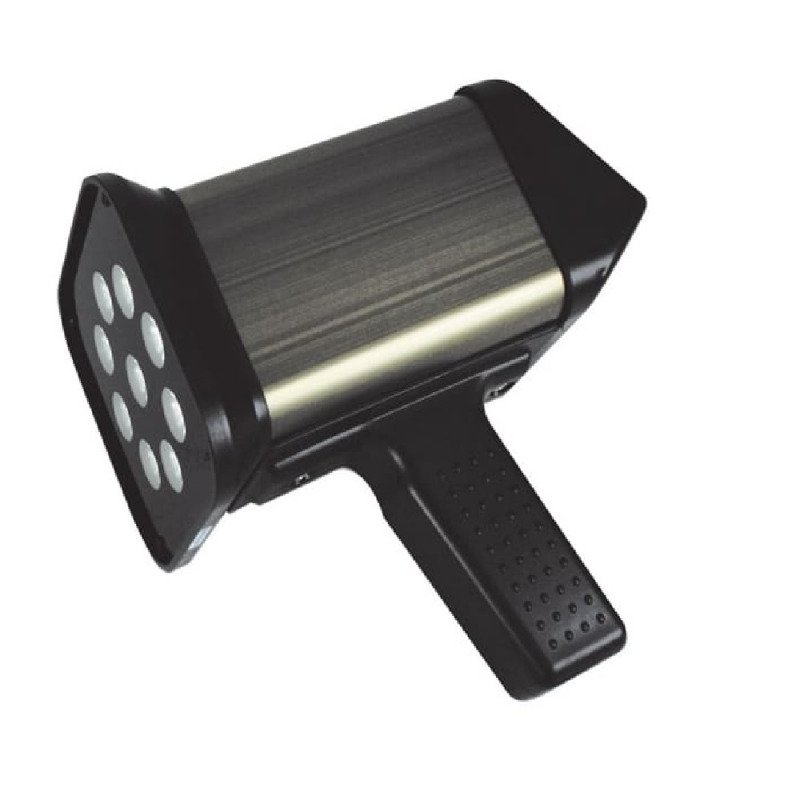

With the portable battery powered LED Stroboscope DT-366 you can create the illusion of viewing slowed or frozen images. It is capable of flashing its LED lights in a synchronous frequency to the operating machinery.
The DT-366 has a flash rate range from 30 to 120.000 FPM with an accuracy of 0,01% ±1 digit of the F.S.
The Checkline DT-366 has a Adjustable Flash Pulse duration that makes sharper images for detailed inspection possible. The Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle.
The backlit LCD display can be used perfectly in dimly lit areas. Also can the Flash rate be synchronized with process speed with input from sensor or controller.
The DT-366 can be be mounted permanently with the 1/4-20 UNC connection, or be used with the removable trigger handle (trigger handle is included)
It has a rechargeable lithium battery, and is able to last up to a full 12 hours of operation.
|Flash Rate Range||30 to 120,000 FPM ; 1-2000 Hz|
|Accuracy||0.01% ±1 digit of F.S. @ 25°C|
|Lux Rating (Approx.)||@6000 FPM: |
Distance 20 cm 6850 lx with 254 mm irradiation dia.,
Distance 50cm 2325 lx with 355 mm irradiation dia.
Distance 20 cm 3395 lx with 254 mm irradiation dia.,
Distance 50 cm 1350 lx with 355 mm irradiation dia
|Lamp Lifetime||Approximately 3~5 years depending on usage.|
|Resolution||60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM; 1~200 HZ = 0.01 Hz; 201~2000 = 0.1 Hz|
|Flash Duration||0.1°- 2.5°|
|Power Requirement||100-240 VAC 50/60Hz|
|Battery||Lithium DC 16.8V 2600 mAh|
|External Sensor Input||15 V Pulse Input; Mini-USB|
|Sensor Power Supply||15 V dc up to 50 mAh|
|Input Pulse Width||Over 50 μs|
|Input Signal Flash Delay||v|
|Humidity Limits||35 to 85% RH|
|Housing||Aluminum & ABS|
|Product Weight||1 kg|
|Shipping Weight||2,65 kg|
|Dimensions||203 x 110 x 192 mm|
