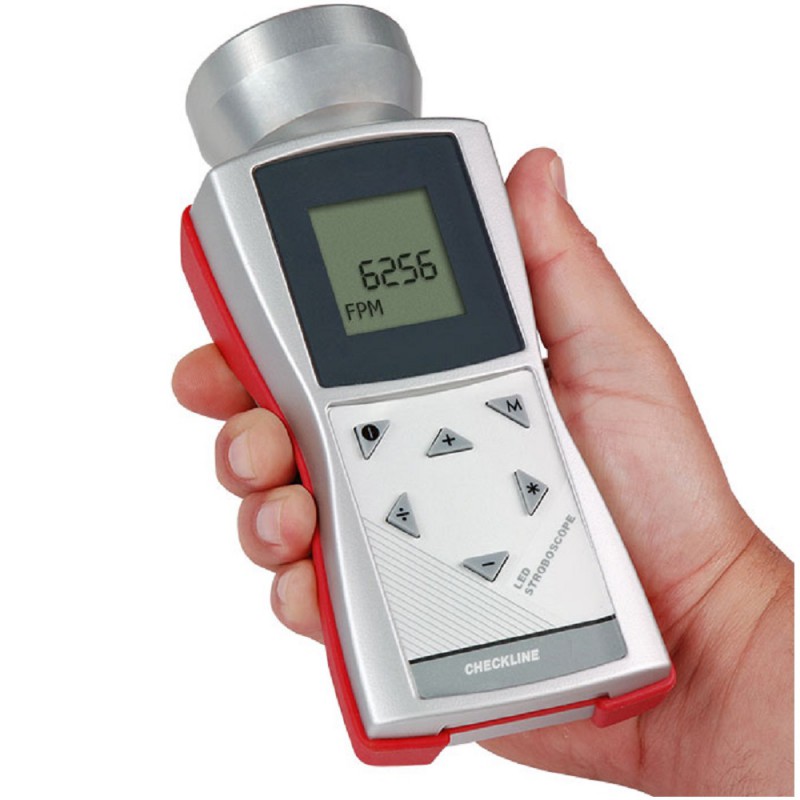

DS-2000LED LED Stroboscope


Made in GermanyMeasuring Range: 30 - 300,000 FPM (5000Hz, max)
Flash Brightness: 3000 Lux (@ 6000 FPM)

Designed for maximum performance, portability and ease of use, the DS-2000LED is a hand-held battery powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market.

The DS-2000LED can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard AA-batteries . Keypad controls adjust flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.

Supplied in a high-impact plastic with rubber protective sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, hi-speed motion analysis for speakers or ink-jet printing and more.


Features

  • Lifetime LEDs do not wear-out or need replacement
  • Produces the brightest flash and sharpest image over the entire range to
  • Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 20 cm)
  • NIST-Traceable Calibration Certificate provided
  • Three (3) AA-Batteries provide six hours of continuous use operation
  • External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT
  • User-selected units of Hz or FPM (Flashes Per Minute)
  • 2-Year warranty

Light Output (LUX) vs Distance

Light Output (LUX) vs Distance
at 20 cm Distance, 6000 flashes/min (FPM)

Dimensions

Dimensions Stroboscopes DS-2000LED


Complete Kit

DS-2000LED Strobe is supplied in foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), Traceable Calibration Certificate and Operating Instruction Manual.

DS-2000LED-OT Strobe also includes connector for external trigger signal and 3 meter/10ft. trigger cable.



Downloads


Specifications

Frequency Range
30 - 300,000 FPM
Flash Duration
Adjustable (1 usec up to 8522 usec)
Accuracy
0.045% (+/- 1 digit) or better
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness
3000 Lux @ 6000 FPM / 20cm (7.9 inch)
Protection Class
IP65 (Protection from Dust and Water Jets)
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 6.500 K
Power Supply
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH: approx 11h at 6.000 FPM
Disposable: approx 6 h at 6.000 FPM
Warranty
2 Years
Trigger Input
Principle: Optocoupler, voltage-free
Principle
Optocoupler, voltage-free
Low Level
< 1 V
Level
3 - 32 V, NPN + PNP
Trigger Output
Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Principle
Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Level max.
NPR, max 32V
Pulse Length
Adjustable
Maximum current
50mA
Reverse voltage protection
Yes

Buy Now

Products


Product name
Price
Quantity
DS-2000LED - LED Stroboscope in carring case
€ 549,00

DS-2000LED-OT - LED Stroboscope with external trigger input/output
€ 699,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
