MiniVLS Laser Optical Speed Sensors


The MiniVLS series Optical Sensors are primarily designed for speed related applications, including very high speed monitoring.

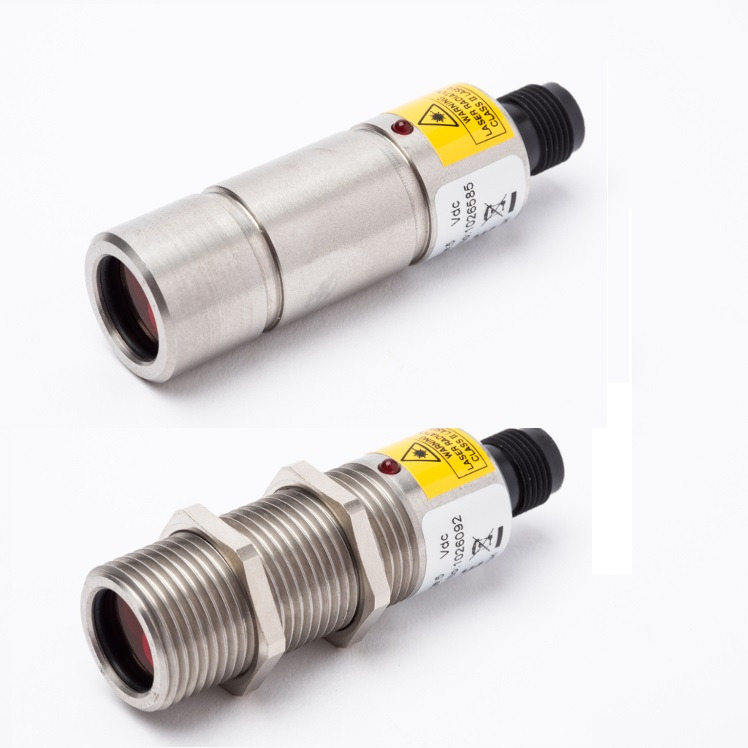

These high quality Sensors are housed in rugged stainless steel enclosures which are sealed to IP67 standard. They are engineered for easy mounting in either a proximity Sensor style housing or Plain version with grooved body which is designed to be used either hand held or with an optional mounting bracket which can be tripod mounted or fixed to a machine surface. They can be used with almost any pulse input monitoring equipment such as Digital Tachometers, Counters & rotation monitoring products, data collectors, including portable, panel mounted and bench style instruments. They are also compatible with most Condition Monitoring products.


Features
  • Widely used for research & development and test applications
  • Long optical range up to 2 metres with reflective tape or longer with retro-reflectors or special configurations
  • Wide angle of operation - up to 80°
  • Threaded or Plain housing options
  • Reverse polarity & short circuit protected
  • Ideal for phase & speed monitoring balancing applications on rotating machinery
  • Operating frequency up to 250,000 rpm
  • On Target indicator standard
  • Integral Connector
  • Stainless Steel housing

Specifications
Laser Optical Range100 - 200mm
Laser Angle of Incidence +/- 80°
Speed Range0.1 - 250,000rpm
Power Input 5vdc or 8-24vdc @ 30 mA typically
Operating Temp -10°C to +40°C
IP RatingIP67
Housing TypesM20 threaded or Plain body + fixing slots
MaterialStainless Steel
Connections Integral Connector
Cables Several Options
Dimensions Laser - D 20mm x L 70mm

Downloads

Buy Now
Products

Product
Price
Quantity
MINIVLS111 - LSR Optical Sensor 5 vdc Td
€ 536,00
MINIVLS112 - LSR Optical Sensor 8-24vdc Td
€ 536,00
MINIVLS113 - LSR Sensor 6-12vdc – Threaded
€ 568,00
MINIVLS211 - LSR Optical Sensor 5 vdc Plain Body
€ 568,00
MINIVLS211/IA - LSR Sensor 5vdc -Type nL Laser Sensor - Intrisically Safe
€ 741,00
MINIVLS212 LSR Sensor 8-24vdc - Plain
€ 536,00
MINIVLS213 - Laser sensor 6-12v plain
€ 536,00
MINIVLS311 - Optical Sensor 5 vdc Plain Body Wir Ends
€ 453,00
MINIVLS313 - USB Laser Speed Sensor / Tachometer
€ 536,00

Accessories

Product
Price
Quantity
MVLS-BR1 Bracket
€ 92,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
