E1013 Myometer kit, E1012 looped cable for Series E Ergometer


Made in the USAThe Myometer kit E1013 in combination with the padded attachments makes the Series E ergonomic force gauge into a complete Myometer suited for muscle strength evaluations and ergonomic test applications.

In combination with the Series E this kit can perform consistent muscle strength assessments and using the MesurLite software store the progress of physical strength.

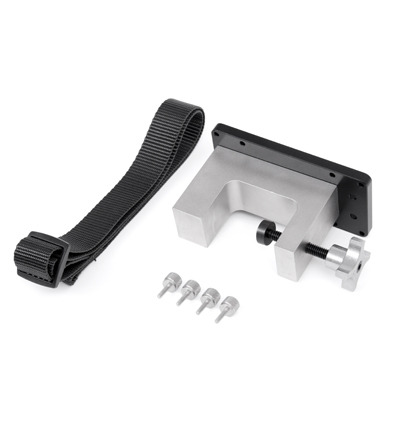

The bracket in the Myometer kit can be clamped to a desk or table with the ME-#00 mounted to it, using the included thumb screws.  The patients limb can be held with the included strap.
When the patient pulls against the strap the ME-#00 will record the force applied, repeating this test over time will create an image of progress.

The Series-E ergonomic Force gauge is able to perform consistent muscle strength tests providing healthcare professionals a tool to track progression in the patients condition.
The combination is also suitable to be used as a sports training aid to assess muscle development. The tests wil provide an objective image of the situation and progress.

The bracket can be mounted for horizontal and vertical testing.

The Looped cable E1012 can be used in situations where the strap is not suited.


Features
  • Myometer kit converts ME-#00 into Myometer
  • 110 cm looped steel cable usable for a variety of tests

Myometer kits in advanced and professional kits
Model No.DescriptionEM-#00E Gauge onlyEKE-#00-1E Advanced kitEKE-#00-2E Professional kit
E1012Looped cableOOO
E1013Myometer kitOOO
S = standard O = option
