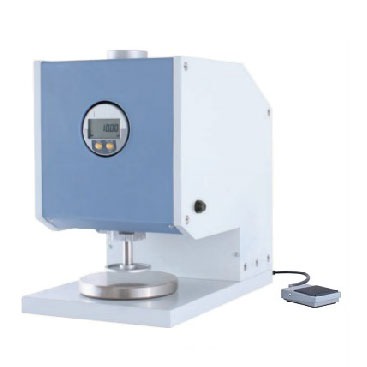

D-2005 Motorized Precision Material Thickness Gauge


Made in GermanyThe D-2005 Motorized Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the caliper surfaces, the caliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2005 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

This alternative to the D-2010 does not have an illuminated, menu controlled touch-screen with its statistics functions, instead it is equipped with a dial gauge with seven-segment display and individual keys. Of course, there is a data output for the digital processing of the measurement results.





Features
  • Rigid housing frame
  • Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
  • Optional: Preselection of the measuring range
  • Optional: Adjustable dwell time
  • Footpedal included
  • Switch-selectable measuring units mm / inch
  • Optional: software for data transfer and analysis - Part No. SW-50
  • Motor-driven calliper movement
  • Seven-segment display
  • Resolution 0.01 mm - standard, 0.001 mm - optional
    (0.001 mm is standard for D-2005-P, D-2005-F)

Available models
Model Standard Application Feeler dia. (mm) Feeler area (cm²) Pressure
D-2005-T DIN EN ISO 5084 Textiles 50.42 20 0.1 kPa and 1 kPa
D-2005-V DIN EN ISO 9073-2 Standard fleece 56.42 25 0.5 kPa
D-2005-G DIN EN ISO 964-1 Geomaterials 56.42 25 2 kPa
D-2005-G1-3 DIN EN ISO 964-1 Geomaterials 56.42 25 2 kPa, 20 kPa and 200 kPa
D-2005-NW DIN EN ISO 53855 Non-woven textiles 56.42
35.68
25
10
0.5 kPa, 1 kPa and 5 kPa
D-2005-P* DIN EN ISO 53105 Paper 16 2 100 kPa
D-2005-HY* DIN EN ISO 54540 Hygenic Paper 56.42 25 2 kPa
D-2005-L1 DIN EN ISO 53326 (out of date) Leather 10 0.785 50 kPa
D-2005-L2 DIN EN ISO 2589 Leather 10 0.785 49.1 kPa
D-2005-Gi*   Rubber 36.68 10 5 kPa
D-2005-CF ISO 2286-3 Rubber- or plastics-coated fabrics 12 1.13 2 kPa, 10 kPa and 24 kPa
D-2005-CF1 ISO 2286-3 Rubber- or plastics-coated fabrics 12 1.13 2 kPa, 5 kPa, 10 kPa and 24 kPa
      Feeler Calotte
D-2005-F* DIN 53370 Foils R 30 mm   0.5 N
D-2005-AB DIN-EN 1849-2 Waterproofing sheets 10 mm 0.785 20 kPa
*Model D-2005-P, D-2005-HY, D-2005-Gi and D-2005-F have an resolution of 0.001mm
Individual configurations to an required standard are available upon request.

Comparative table series (D-2005)
  D-2020 D-2010 D-2005 D-2000
Touch-screen with menu control in German or English - -
Seven-segment display - -
Display illumination - -
Statics display - -
Automatic zero point control - -
Preselection of the measurement cycles - -
Preselection of the measuring range optional -
Adjustable dwell time - -
Motor-driven calliper movement -
Connection for pedal -
Manual calliper movement via a control lever - - -
Automatic material infeed, adjustable - - -
Digital interface
Available scale divisions 0,001 mm, 0,01 mm
Possible measuring ranges 0 – 10 mm, 0 – 25 mm, 0 – 50 mm
Length × width × height
(in mm, for measuring range 0 – 10 mm)
300 * 300 * 320 300 * 200 * 300 300 * 210 * 300 300 * 240 * 300
Weight
(in kg, for measuring range 0 – 10 mm)
31,5 24,0 23,0 22,5

Options
Code R Higher resolution 0.001 instead of 0.01 mm
(0.001 mm is standard for D-2005-P, D-2005-F)
Code E Extended measuring range 0 - 25 mm
Code E2 Extended measuring range 0 - 50 mm
Code D Adjustable dwell time
Code D2 Adjustable dwell time & measurement range
Code P External power supply of the display
DKD-Cal Calibration report from a DKD authorized laboratory
Code S Software & Cable


Special models can be requested!


Specifications
Measuring Range0 - 10 mm, (25 mm optional, Code E)
Resolution0,001 mm
Accuracy± 0,0008 mm at 0,0001 resolution
± 0,005 mm at 0,001 resolution
± 0,01 mm at 0,01 resolution
Depth of jaw160 mm
Measuring systemCapazitive -> Sylvac
DisplayLCD 6 digit, 8.5 mm high
Measuring unitmm or inch
Preselection of the measuring rangeOptional
Feeler shape and surface pressureAccording international standards DIN, EN and ISO
Adjustable dwell timeOptional
Output signalRS 232 for printer and USB for PC
Temperature range10 - 45 °C
Air humidityMax. 85 % r.H
Dimensions300 x 210 x 300 mm (LxWxH)
Weight, net (gross)23 kg

Buy Now
Products

Product
Price
Quantity
134473
D-2005-T - Material Thickness Gauge for Textiles
€ 5.393,00
134474
D-2005-V - Material Thickness Gauge for Standard Fleece
€ 5.303,00
134475
D-2005-G - Precision Material Thickness Gauge for Geotextiles
€ 5.582,00
134476
D-2005-NW - Material Thickness Gauge for Non-woven Textiles
€ 5.540,00
134477
D-2005-P - Precision Material Thickness Gauge for Paper (0.001mm)
€ 5.750,00
134478
D-2005-HY - Precision Material Thickness Gauge for Hygienic Paper
€ 5.718,00
134479
D-2005-L - Leather thickness meter - DIN EN ISO 53326
€ 5.697,00
134480
D-2005-Gi - Precision Material Thickness Gauge for Rubber
€ 5.582,00
134481
D-2005-F Material Thickness Meter for Foils
€ 6.233,00

Accessories

Product
Price
Quantity
132771
D-2000/2005/2010/2020 - Code R for Higher resolution 0.001 instead of 0.01 mm
€ 422,00
133036
D-2000/2005/2010/2020 Code E - Extended measuring range 0 - 25 mm
€ 434,00
134468
D-2000/2005 Code E2 - Extended measuring range 0 - 50 mm
€ 982,00
133155
DakkS-CAL accredited certificate
€ 123,00
133578
D-1000/2000/2005/2010/2020 - Code S - Software & Cable
€ 165,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
