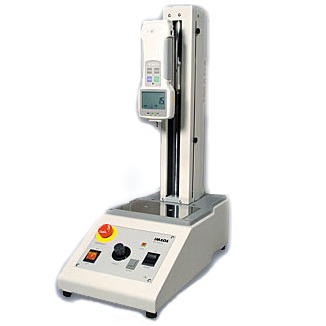

MV-110 Motorized Test Stand


The MV-110 Motorized Test Stand is no longer available and has been replaced by MX-110.
Click here to see the MX-110.


Capacity: 110lbs / 50Kg / 490N

The Check-Line MV-110 test stand offers consistent and reliable testing. Combination of screw system and state of the art brushless motor provides extremely smooth and powerful operation over the entire speed range. The MV-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.

*FORCE GAUGE NOT INCLUDED
Designed to work with the DS2, Z2 & ZP force gauges.


Features

  • One stand for both compression (push) and tension (pull) tests
  • Optional digital distance meter
  • Maximum clearance 9" (with extender 14")
  • Screw feeder for smooth, positive movement
  • No programming required

Dimensions

Dimensions Motorized Force Test Stands MV-110


Related Products

DS2 Digital Force Gauge


  • Real time and peak mode (selectable)
  • lb, kg, and Newton units are push-button selectable

More details


Ordering Guide

Model Speed Range Distance Meter
MV-110 0.4 – 11.5 in/min
(10 - 292 mm/min)
No
MV-110-SS 0.26 – 8.0 in/min
(6.6 - 203 mm/min)
No
MV-110-MS 0.7 - 23.0 in/min
(18 - 584 mm/min)
No
MV-110-HS* 1.5 - 47.0 in/min
(38 - 1194 mm/min)
No
MV-110S 0.4 – 11.5 in/min
(10 - 292 mm/min)
Yes
MV-110S-SS 0.26 – 8.0 in/min
(6.6 - 203 mm/min)
Yes
MV-110S-MS 0.7 - 23.0 in/min
(18 - 584 mm/min)
Yes
MV-110S-HS* 1.5 - 47.0 in/min
(38 - 1194 mm/min)
Yes
*HS models have a limited capacity of 55lbs/25Kg/245N

Specifications

Capacity
110lbs / 50Kg
Travel Rate
Refer to Ordering Guide above
Dimensions
Refer to Dimensions above
Compatible Gauges
Z2, ZP and DS2
Warranty
2 years
*Note
Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
