Checkline Europe

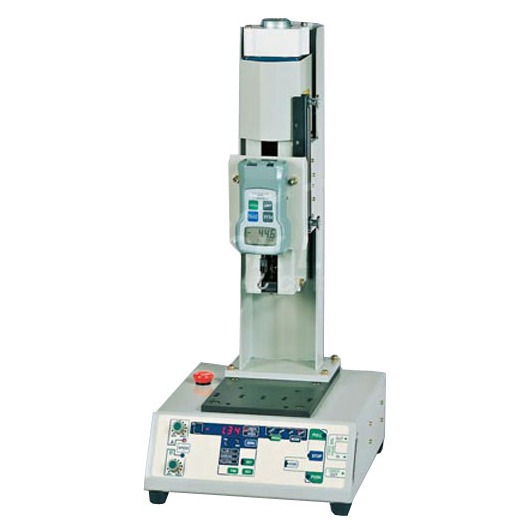

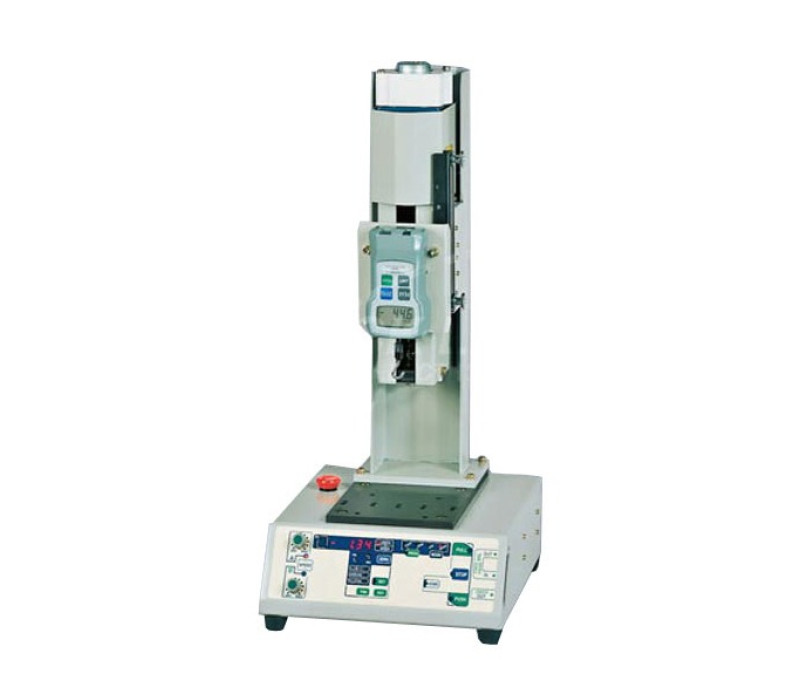

FGS-100PVH Motorized Test Stand


2 Models:
FGS-100PVH
(vertical - standard) - 110 lb capacity
FGS-100PVL (vertical - low speed) - 110 lb capacity

This advanced motorized test stand allow the user to obtain the most accurate, repeatable results available in the market today. The all steel construction makes the FGS-100PVH remarkably rugged, while programming and cycling capabilities enable it to be highly intelligent. All stands have the ability to interface with our top quality force gauges, providing complete force measurement systems for the most precise testing applications.

Because speed, distance, and time are controlled by the user in either a vertical or horizontal model, our motorized stands can be configured for any application. One year warranty.

*Formally FGS-50PVH / FGS-50PVL

Features

  • User programmable set points: speed, distance, stop time
  • High and low force set points user selectable through RS232C interface or directly through DFS gauge
  • Gauge overload protection
  • Analog distance outputs
  • Single cycle and continuous cycling capabilities
  • Compatibility with nearly all manufacturers’ gauges
  • All gauge functions can be communicated through stand via RS232 interface
  • Manually adjustable upper and lower limits

Dimensions

Dimensions Motorized Force Test Stands FGS-100PVH


Related Products

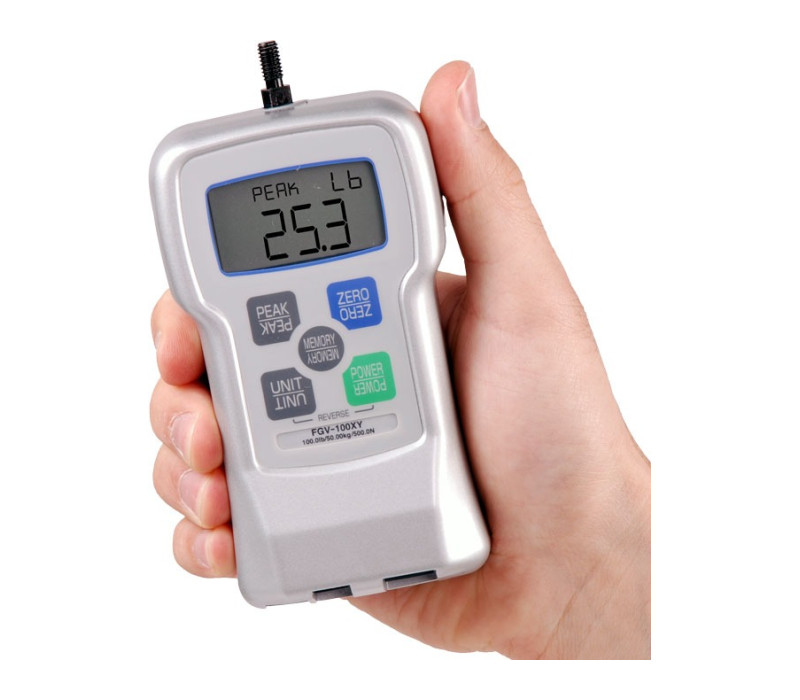

FGV-XY Digital Force Gauge with USB Output


  • 1000 Hz Sample Rate
    captures true peak values even those occurring over very short time intervals
  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility
  • 9 separate capacities from 0.5 Lb to 200 Lb
    select the best range without forfeiting accuracy
  • 200% Overload Capacity
    minimizes the likelihood of costly repairs
  • Rugged Die Cast Aluminum Housing & Rugged Construction
    provides exceptional durability even in the toughest field applications
  • 2-Year Warranty
  • Selectable Auto-Shut Off
    prolongs battery life, while allowing constant use when powered via supplied AC-adapter
  • Small Size
    Ergonomic design provides comfort for hand held testing
  • Automatic Calculation & Display of Statistics
    provides immediate results and analysis of your force testing
  • 3 Memory Modes
    optimize data storage for any application transferring data to PC/Laptop when convenient
  • Built In User-Set Hi-Lo Alarm Limits
    perform quick and easy ‘Go-No Go’ testing with visual LCD indicator when "out of tolerance"
  • Includes traceable calibration certificate
  • Reversible Display
    optimized for use as both a handheld gauge or mount upside down on a test stand

More details

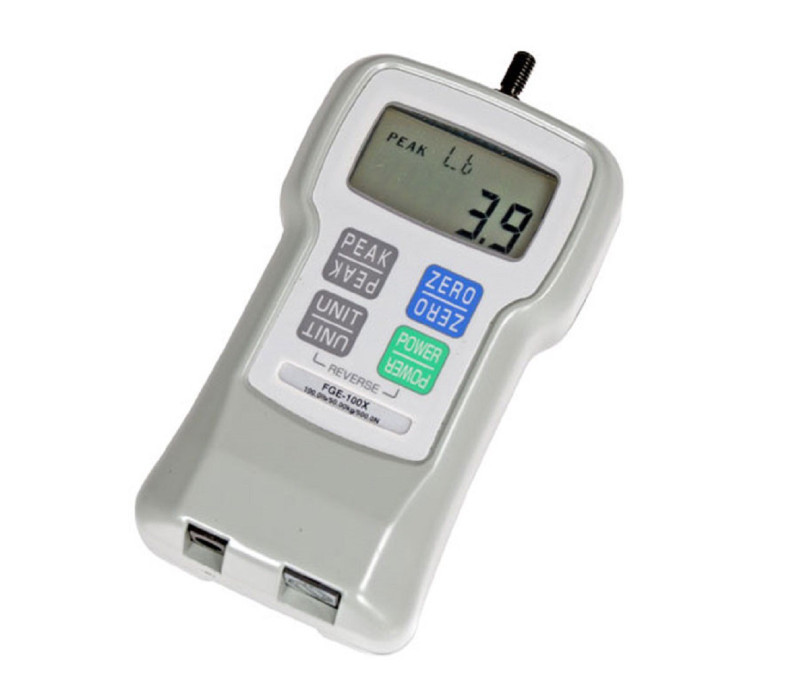

FGE Hand-held Digital Force Gauge


  • Includes Traceable Calibration Certificate
  • Accuracy ± 0.2%
  • Display can be reversed for inverted use
  • 1 Year Warranty
  • Display "real-time" or "peak" force
  • 200% overload protection
  • User-selected units of Pounds, Kilograms or Newtons

More details


Specifications

Capacity
110 lb (50 kg)
Stroke
5.5" (140 mm)
Vertical Clearance
61-181 mm (2.4"- 7.1")
5 steps, 1.18"/step (30 mm/step)
Travel
100PVH: Adjustable: 1.57 - 15.74"/min (40-400 mm/min)
100PVL: Adjustable: 0.39-3.93"/min (10-100 mm/min)
Display
Four digit LED, 0.41" high (10.5 mm).
Reads in inches (0.01 resolution) or millimeters (0.1 resolution)
Power
120 VAC, 60 Hz
Weight
19 kg (42 lb)

Buy Now

Products


Product name
Price
Quantity
FGS-100PVH - Motorized Test Stand, vertical, standard
€ 3.650,00

FGS-100PVL - Motorized Test Stand, vertical, low speed
€ 3.650,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
