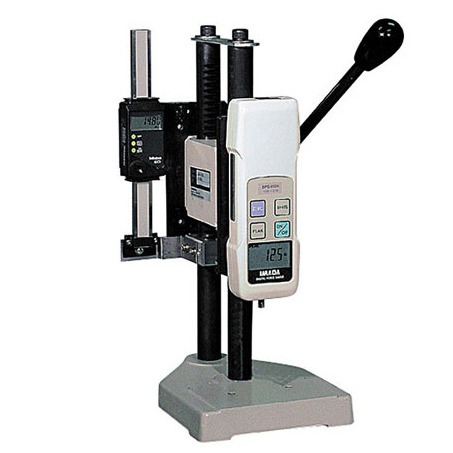

NLV-220 Vertical Lever Test Stand


Capacity: 220 Lbs

Model NLV-220 vertical manual lever test stands provide maximum versatility and reliability. Lever action provides quick, consistent testing. A pull down on the lever creates either compression or tension, depending on the model. A return spring resets the lever on compression models. The stands will accommodate any of the standard range force gauges and can be equipped with a precision digital distance meter. The optional extender plate increases clearance to 14" for larger samples. NLV-220 is perfect for compression and tension applications where rapid action is desired.

Opional digital distance meter available.

Models
NLV-220-C Configured for compression. Pull the lever arm down and toward you and the gauge moves down to create compression.
NLV-220-C-S Configured for compression and has a distance meter.
NLV-220-T Configured for tension. Pull the lever arm down and toward you and the gauge moves up to create tension.
NLV-220-T-S Configured for tension and has a distance meter.


Related Products

DS2 Digital Force Gauge


  • Real time and peak mode (selectable)
  • lb, kg, and Newton units are push-button selectable

More details

DS2 Digital Force Gauge

Dimensions
Dimensions NLV-220


Specifications
Capacity220 Lbf (100 Kgf)
Stroke2"
Maximum Clearance9" (14" with optional extender plate)

Buy Now
Products

Product name
Price
Quantity
NLV-220-C for Compression, Push Only
€ 934,00
NLV-220-T for Tension, Pull Only
€ 934,00
NLV-220-C-S for Compression, Push Only with Distance Meter
€ 1.442,00
NLVS-220-C-T - NLV-220-T-S for Tension, Pull Only with Distance Meter
€ 1.442,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
