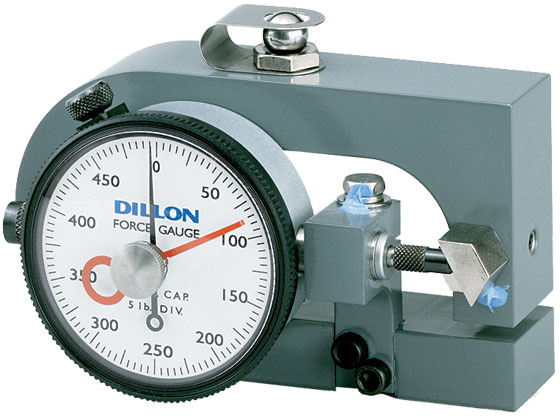

X-C Analog Pressure Force Measuring Gauge


Made in the USAThe analog Dillon X-C pressure force measuring devices are available in 9 capacities from 50 - 10000 kg or 50 - 25000 lb. The accuracy is ± 1% of the capacity.

The load is placed against a hardened ball which rotates to maintain vertical alignment when the load is increased. The ball is held in position by a spring clip. On the underside of the X-C pressure force measuring device there is a threaded hole opposite the ball.

Certified accuracy and a robust design characterize the dynamometers of the X series. The stable D-shaped deflection beam is the heart of the X-C. Highly precise processed materials with low manufacturing tolerances and adequate heat treatment ensure optimal material strength and spring properties.

 Available measurement scales in kilogram and pound units.


Features
  • Eclusively for pressure force measurements
  • Capacities up to 10000 kg
  • Accuracy ± 1% of the capacity
  • Versions with drag pointer available

Models
ModelCapacityResolutionLoad pointer
30386-003550 lb0,5 lb
30386-0043100 lb1 lb
30446-0033250 lb2,5 lb
30446-0017500 lb5 lb
30444-00191000 lb10 lb
30388-00172000 lb20 lb
30389-00165000 lb50 lb
30423-001410000 lb100 lb
30449-001425000 lb250 lb

30386-0159 100 lb1 lb
30446-0090250 lb2,5 lb
30446-0074500 lb5 lb
30444-0050 1000 lb10 lb
30388-00582000 lb20 lb
30389-0057 5000 lb50 lb
30423-005510000 lb100 lb
30449-005525000 lb250 lb

30386-018350 kg0,5 kg
30446-0181100 kg1 kg
30446-0082200 kg2 kg
30444-0068 500 kg5 kg
30388-00661000 kg10 kg
30389-0065 2000 kg20 kg
30423-00635000 kg50 kg
30449-006310000 kg100 kg

Slight deflection of the carrier
CapacityDeflection
25 - 100 kg0,48 mm
200 kg0,41 mm
500 kg0,46 mm
1000 kg0,28 mm
2000 & 5000 kg0,25 mm
10000 kg0,56 mm
Gemessen zwischen den Mittelpunkten der oberen und unteren Befestigungspunkte

Options:
  • Bumpless dial gauge, for applications that involve an abrupt change in the applied force (the bumpless dial gauge cannot be combined with the drag pointer)
  • Drag pointer, the drag pointer remains at the highest measured value until it is reset manually.

  • At the customer's request, the rest position of the pointer can be set to 12, 3, 6 or 9 o'clock during production. The default position is 12 o'çlock.

Complete Kit

The X-C force measuring devices are delivered in a complete set, consisting of:

  •      X-C compression force measuring device
  •      Robust carrying case
  •      Calibration certificate
  •      spherical connector for compressive force measurements


Specifications
Precision: ± 1% of capacity
Operating temperature: Up to 48°C
Warranty: 2 Years
Overload protection: Accidental overloads of up to 30% of the capacity can be endured without damaging the dial gauge or the deflection bar.
