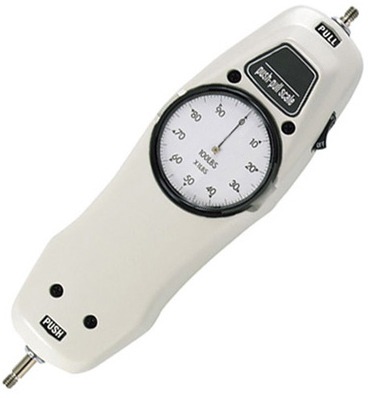

PS Mechanical force gauge for accurate measurements

The rugged construction of the PS force gauges will withstand industrial environments and yet retain calibration for extended periods. Ergonomic design makes it ideal for hand held use, or it can be mounted to a test stand. The Zero-Tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows you to observe transients or capture peaks. Many ranges are available to cover all of your measurement needs (also available in Newtons). The FB series is sold in kits complete with force gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft. PS resolution is 2 times greater than FB and the kit includes everything in the FB kit plus a large hook and Y-hook.

  • High accuracy mechanical gauge with ± 0.1 % full scale
  • Easy to use
  • Peak Force Hold function captures transient values and peaks
  • Simple, vitually maintance free
  • Easy to read dial
  • For hand-held use or mounting mounting on test stands
  • Ideal for precision tension and compression measuremnts in laboratory envirements
  • Real Time and Peak Force display
  • Free manufacturer´s calibration report
  • Ergonomic rugged die-cast aluminum housing
  • Zero Tare Ring to zero the gauge in each position
  • Full set of accessories and carrying case included

Tension Ranges
ModelRanges Resolution
PS-10 N 0 - 10 N 0.1 N
PS-20 N 0 - 20 N 0.2 N
PS-30 N 0 - 30 N 0.25 N
PS-50 N 0 - 50 N 0.5 N
PS-100 N 0 - 100 N 1 N
PS-200 N 0 - 200 N 2 N
PS-300 N 0 - 300 N 2.5 N
PS-500 N 0 - 500 N 5 N
PS-1KG 1 Kg 5 Gram
PS-3KG 3 Kg 20 Gram
PS-5KG 5 Kg 25 Gram
PS-10KG 10 Kg 50 Gram
PS-20KG 20 Kg 100 Gram
PS-30KG 30 Kg 200 Gram
PS-50KG 50 Kg 250 Gram

Complete Kit
Delivery Includes:
Force gauge, standard attachments, carrying case, manufacturer's calibration report, operating instructions in English or German as requested.

Standard Attachments

A-Series (aluminium,thread M 6) attachments are supplied for models with capacities up to 100 N
(1) Small hook A-1, S-1
(2) Flat tip A-2, S-2
(3) Conical tip A-3, S-3
(4) Chisel tip A-4, S-4
(5) Notched tip A-5, S-5
(6) Extension shaft A-6, S-6

S-Series (steel, thread M6) attachments are supplied for models with capacity from 100 N to 500 N
(7) Large hook S-7
(8) Y-hook S-8


MOH-1 Optional Handle

  • Optonal handle to ensure safe and consistent measuring conditions.
  • For mechanical gauges as PS and FB

More details

MOH-1 Optional Handle 125870

Related Products

Cic-Duro Durometer Calibration

  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

Displacement:10 mm
Accuracy:± 0,2% Full scale
Temperature range:5 - 45°C
Air humidity:85% RH, max.
Housing dimensions:325 x 65 x 50 mm (L x W x H)
Weight, net (gross)approx. 530 g (1000 g)


Buy Now

PS-10N High Precision Mechanical Force Gauge
€ 448,00
PS-20N High Precision Mechanical Force Gauge
€ 448,00
PS-30N High Precision Mechanical Force Gauge
€ 418,00
PS-50N High Precision Mechanical Force gauge
€ 448,00
PS-100N High Precision Mechanical Force gauge
€ 448,00
PS-200N High Precision Mechanical Force gauge
€ 448,00
PS-300N High Precision Mechanical Force gauge
€ 448,00
PS-500N High Precision Mechanical Force gauge
€ 448,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
