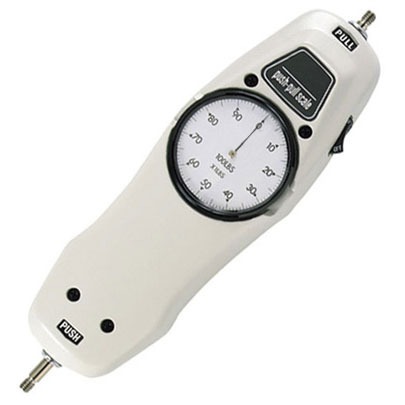

FB Mechanical force gauge


The rugged construction of the FB mechanical force gauge will withstand industrial environments and yet retain calibration for extended periods. The ergonomic design makes it ideal for hand held use, or it can be mounted to a test stand. The zero tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows you to observe transients or capture peaks. Many ranges are available to cover all of your measurement needs (also available in Newtons). The FB series is sold in kits complete with force gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft.


Features
  • Ideal for precision tension and compression measurements in all environments
  • Real Time and Peak Force display
  • Free manufacturer´s calibration report
  • Ergonomic rugged die-cast aluminum housing
  • Zero Tare Ring to zero the gauge in each position
  • Full set of accessories and carrying case included
  • Easy to use
  • Peak Force Hold function captures tension values and peaks
  • Simple, vitually maintance free
  • Easy to read dial
  • For hand-held use or mounting on test stands

Tension Ranges
ModelRanges Resolution
FB-10 N 0 - 10 N 0.05 N
FB-20 N 0 - 20 N 0.1 N
FB-30 N 0 - 30 N 0.2 N
FB-50 N 0 - 50 N 0.25 N
FB-100 N 0 - 100 N 0.5 N
FB-200 N 0 - 200 N 1 N
FB-300 N 0 - 300 N 2 N
FB-500 N 0 - 500 N 2.5 N
FB-1 KG 0 - 1 KG 10 gf
FB-2 KG 0 - 2 KG 20 gf
FB-3 KG 0 - 3 KG 25 gf
FB-5 KG 0 - 5 KG 50 gf
FB-10 KG 0 - 10 KG 100 gf
FB-20 KG 0 - 20 KG 200 gf
FB-30 KG 0 - 30 KG 250 gf
FB-50 KG 0 - 50 KG 500 gf

Complete Kit
The FB mechanical force gauge will be delivered with standard attachments, carrying case, manufacturer's calibration report and operating instructions.

Standard Attachments



A-Series (aluminum,thread M 6) attachments are supplied for models with capacities up to 100 N
S-Series (steel, thread M6) attachments are supplied for models with capacity from 100 N to 500 N
(1) Small hook A-1, S-1
(2) Flat tip A-2, S-2
(3) Conical tip A-3, S-3
(4) Chisel tip A-4, S-4
(5) Notched tip A-5, S-5
(6) Extension shaft A-6, S-6


Accessories

MOH-1 Optional Handle


  • Optonal handle to ensure safe and consistent measuring conditions.
  • For mechanical gauges as PS and FB

More details

MOH-1 Optional Handle 125870

Related Products

Cic-Force Calibration Force Gauge


  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
  • Possibility to adjust and repair

More details

Cic-Force Calibration Force Gauge

Dimensions
Dimensions-FB


Specifications
Displacement:10 mm
Accuracy:± 0,3% Full scale
Temperature range:5 - 45°C
Air humidity:85% RH, max.
Housing dimensions:235 x 65 x 50 mm (L x W x H)
Weight, net (gross)approx. 530 g (1000 g)

Buy Now
Products

Product
Price
Quantity
131518
FB-10N Mechanical Force Gauge
€ 365,00
131519
FB-20N Mechanical Force Gauge
€ 365,00
130270
FB-30N Mechanical Force Gauge 0-30 N
€ 365,00
131520
FB-50N Mechanical Force Gauge
€ 365,00
125875
FB-100N Mechanical Force Gauge
€ 365,00
130307
FB-200N Mechanical Force Gauge
€ 365,00
131522
FB-300N Mechanical Force Gauge
€ 490,00
131521
FB-500N Mechanical Force Gauge
€ 365,00
131511
FB-1KG Mechanical Force Gauge
€ 490,00
131512
FB-2KG Mechanical Force Gauge
€ 490,00
131513
FB-3KG Mechanical Force Gauge
€ 490,00
131514
FB-5KG Mechanical Force Gauge
€ 490,00
126757
FB-10KG Mechanical Force Gauge
€ 490,00
131515
FB-20KG Mechanical Force Gauge
€ 490,00
131516
FB-30KG Mechanical Force Gauge
€ 490,00
131517
FB-50KG Mechanical Force Gauge
€ 572,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
