Thread Adapters Thread Adapters & Couplings

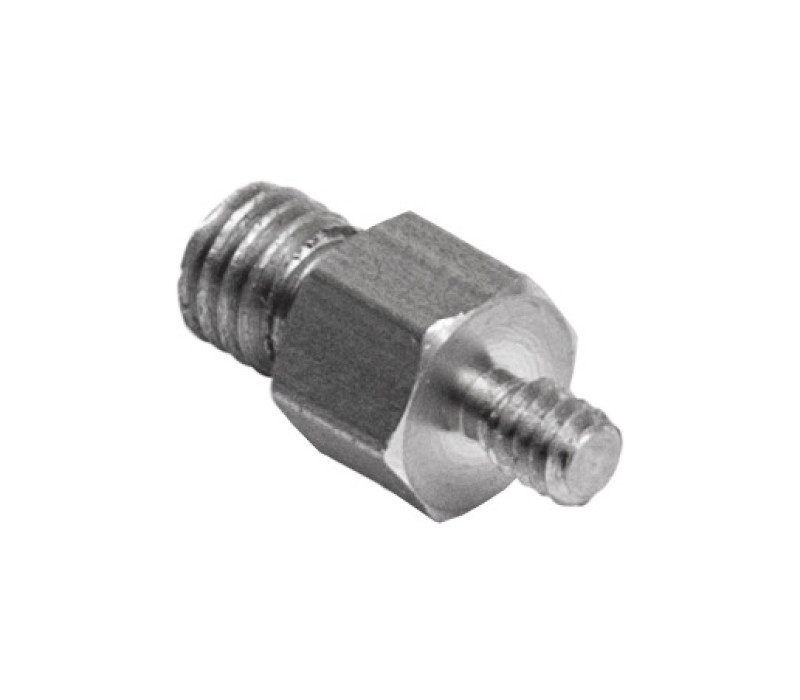

G1051 - Adapter #4-40M to #10-32M

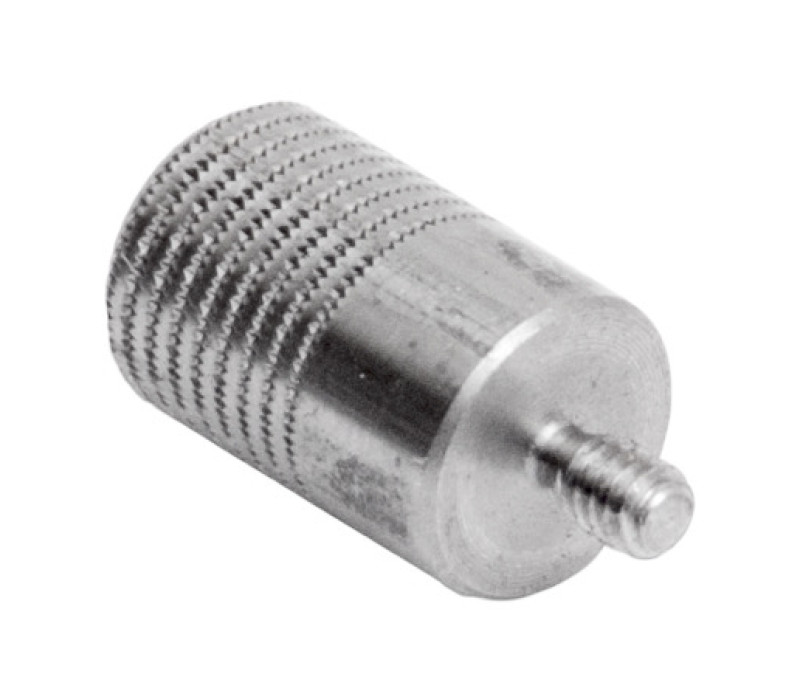

G1050 - Adapter #10-32F to #4-40M

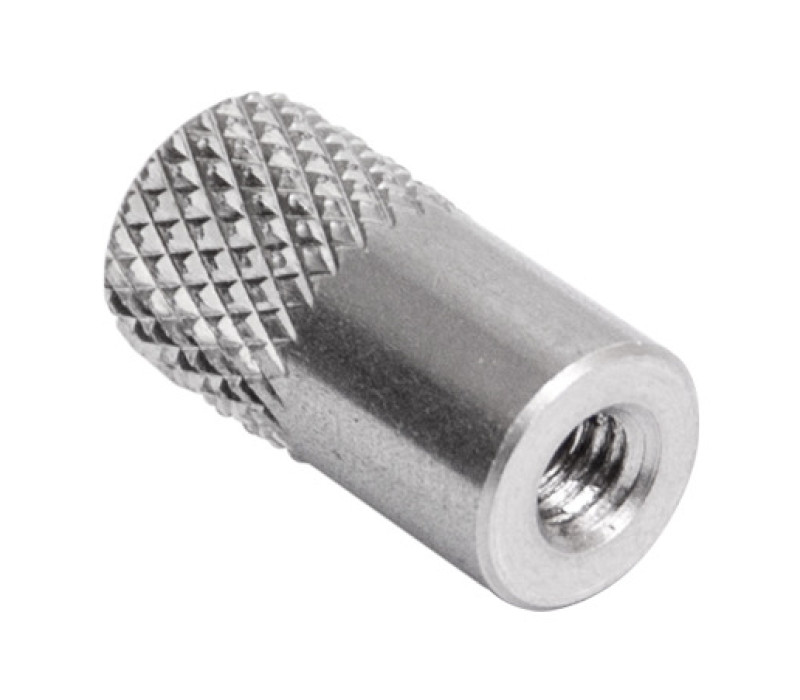

G1039 - Coupler #10-32F to #10-32F

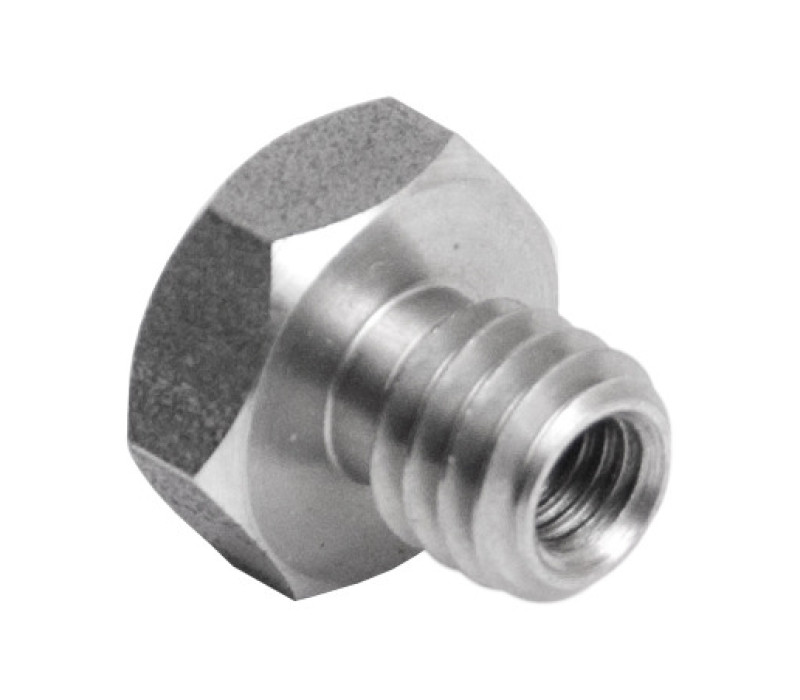

G1030 - Adapter #10-32F to 5/16-18M

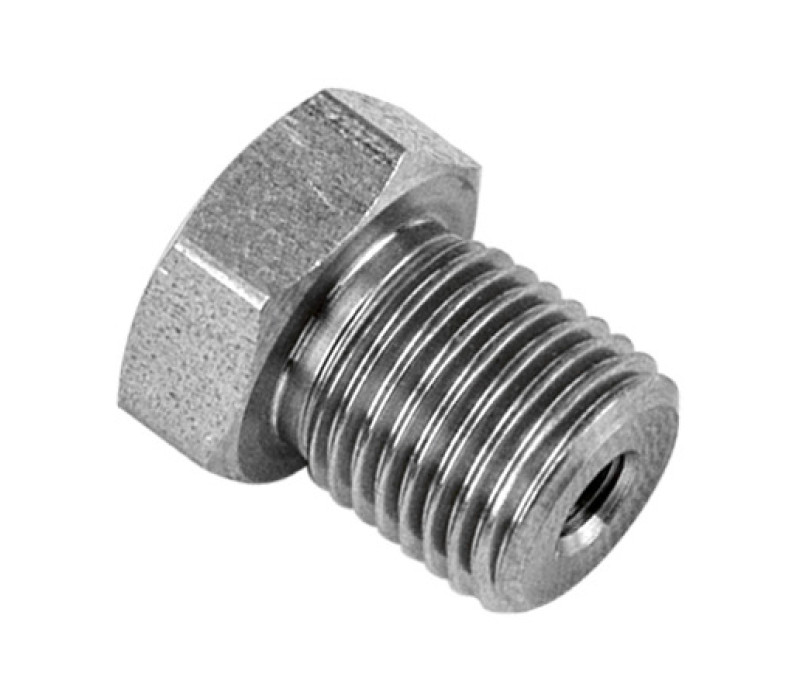

G1067 - Adapter #10-32F to 1/2-20M

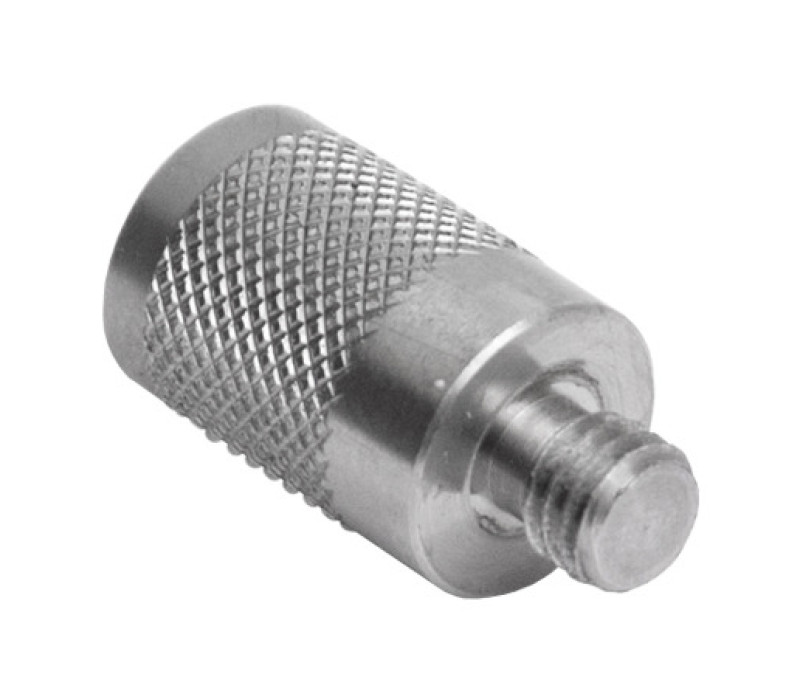

G1048 - Adapter #10-32F to M4M

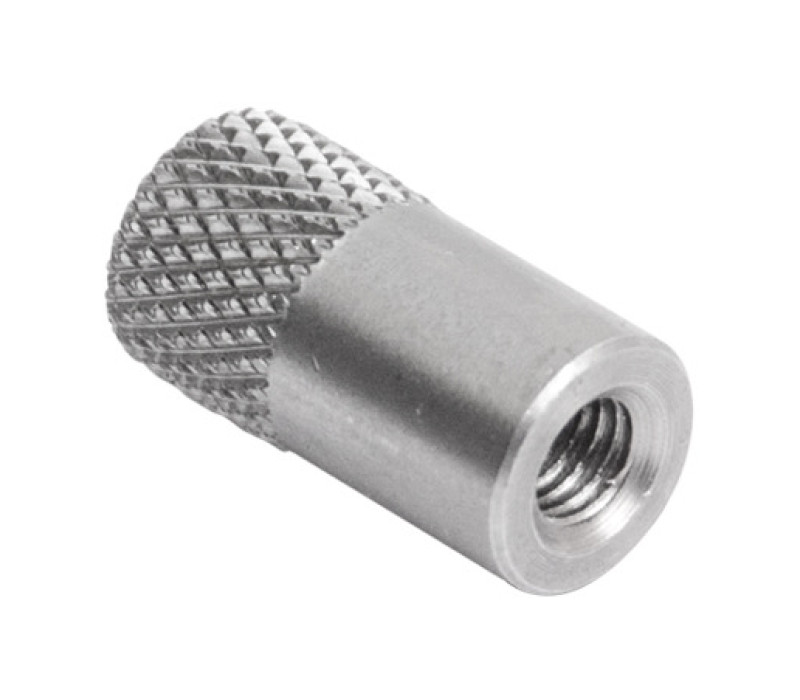

G1057 - Adapter #10-32F to M6F

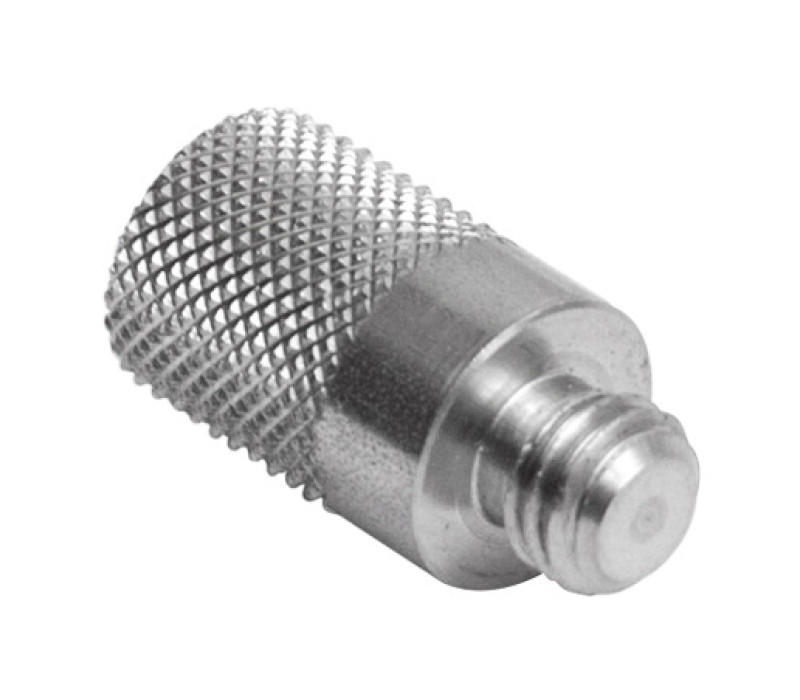

G1054 - Adapter #10-32F to M6M

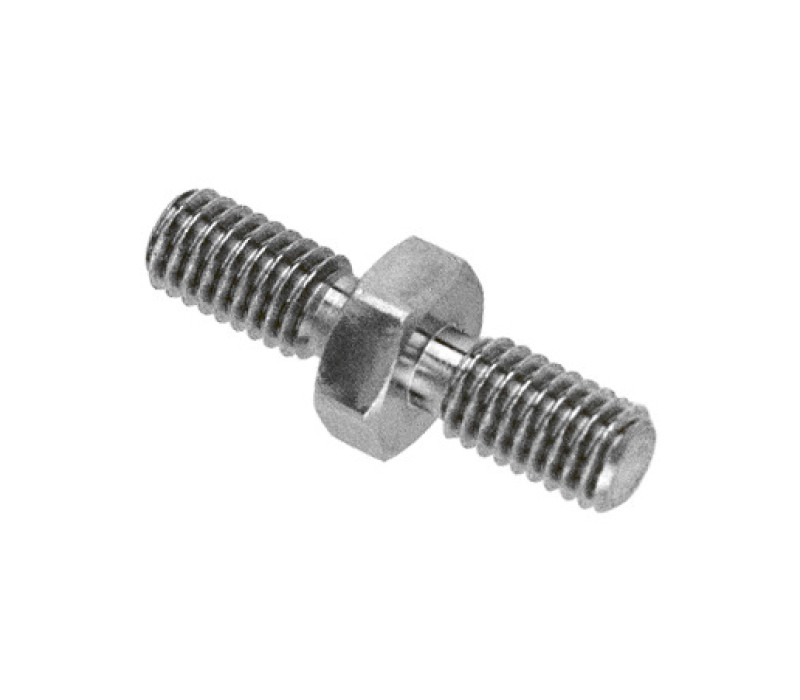

G1060 - Coupler #10-32M to #10-32M

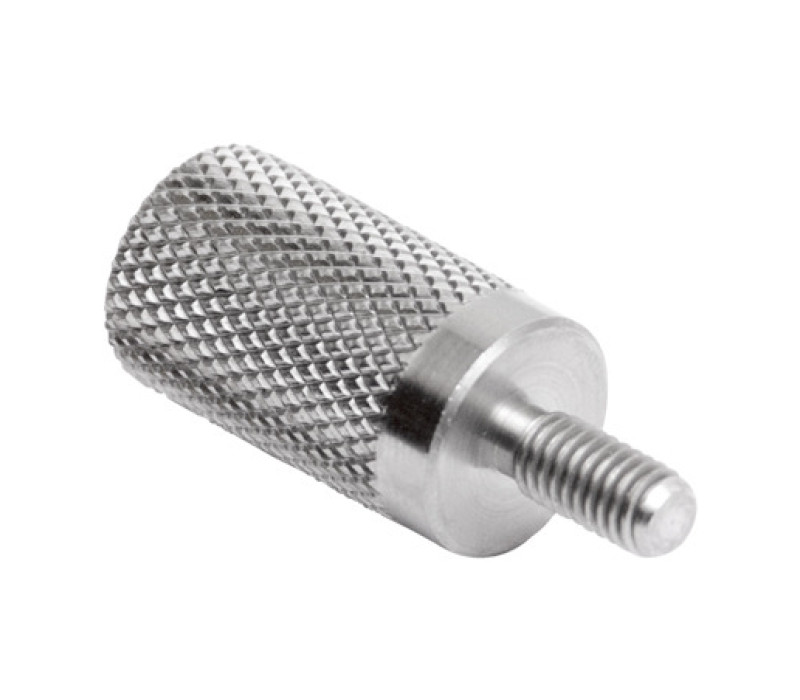

G1063 - Adapter #10-32M to 5/16-18F

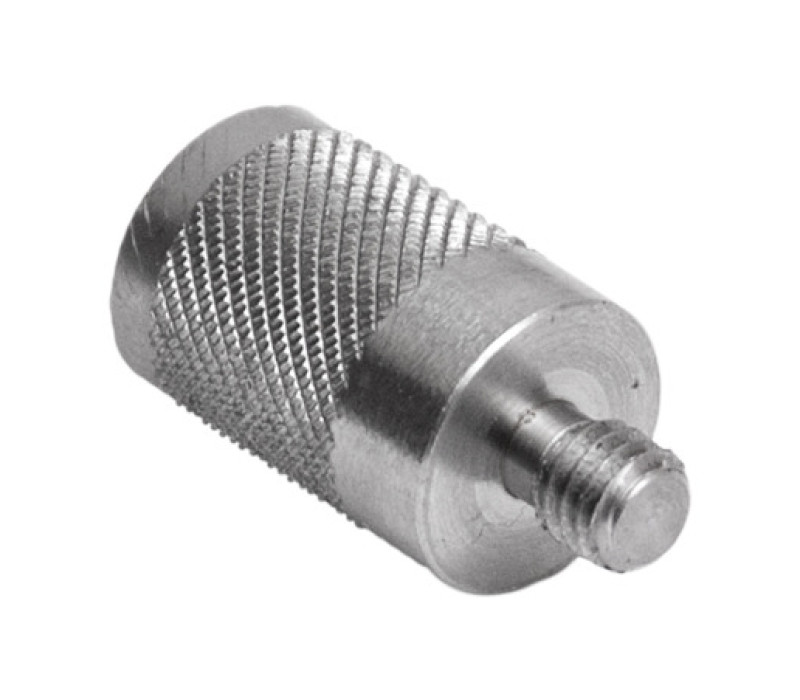

G1047 - Adapter #10-32M to M4F

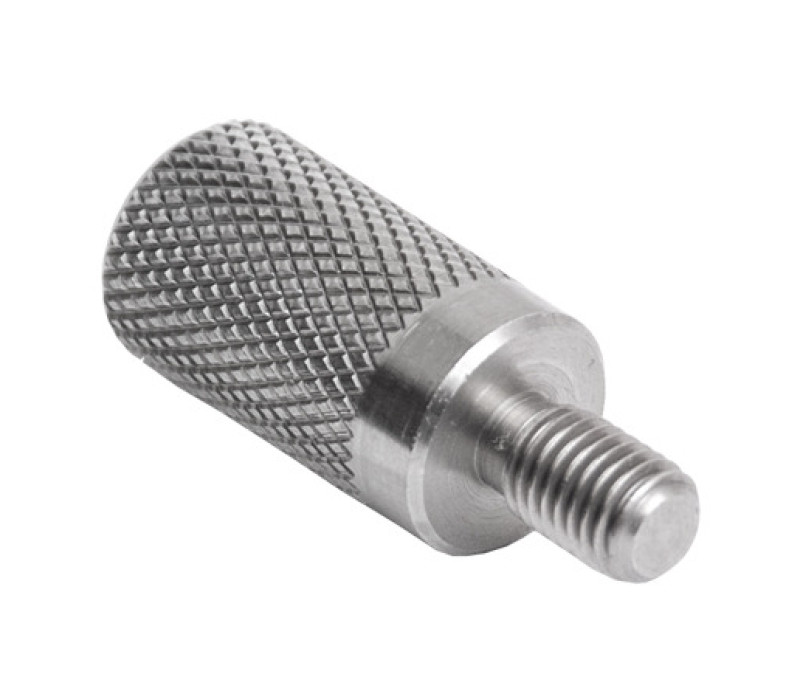

G1069 - Adapter 5/16-18F to 1/4-28M

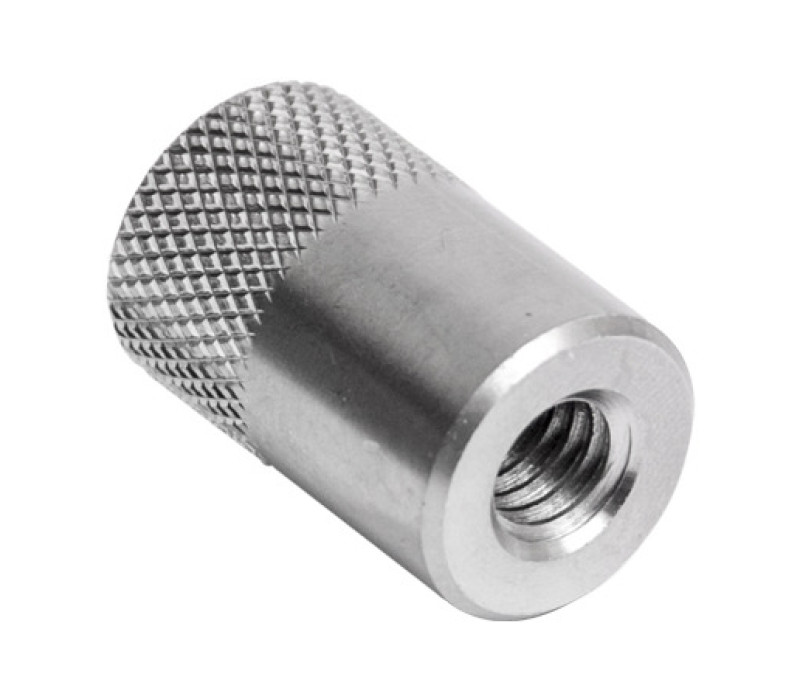

G1037 - Coupler 5/16-18F to 5/16-18F

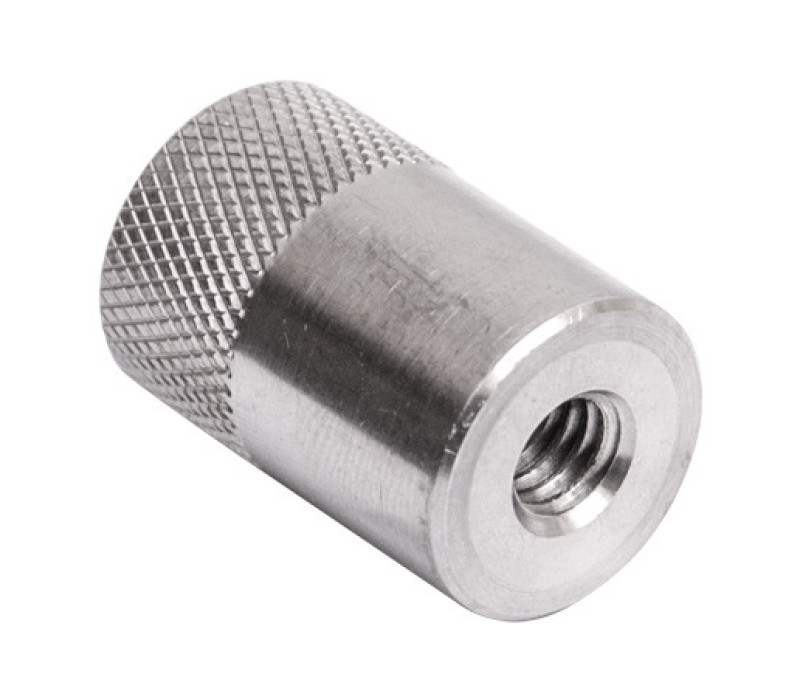

G1059 - Adapter 5/16-18F to 1/2-20F

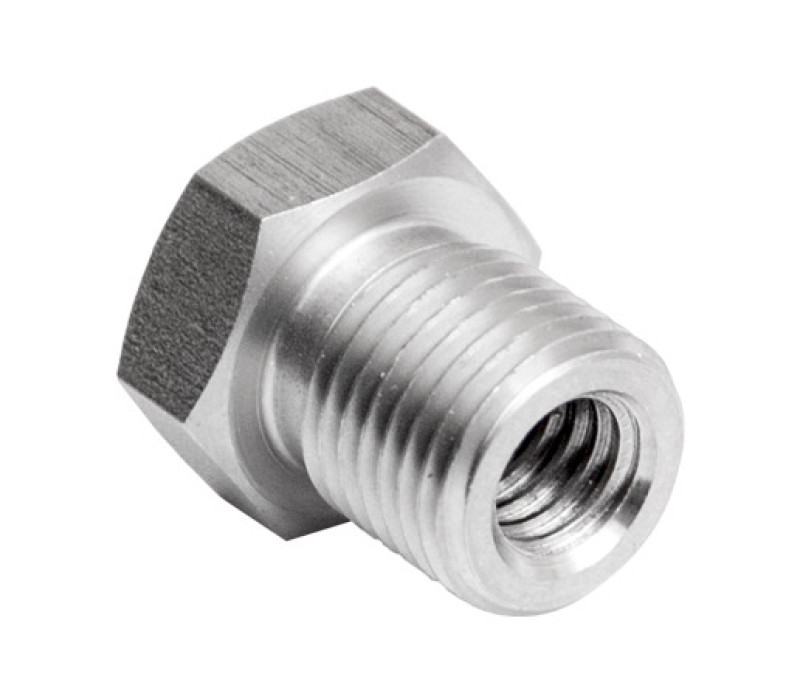

G1066 - Adapter 5/16-18F to 1/2-20M

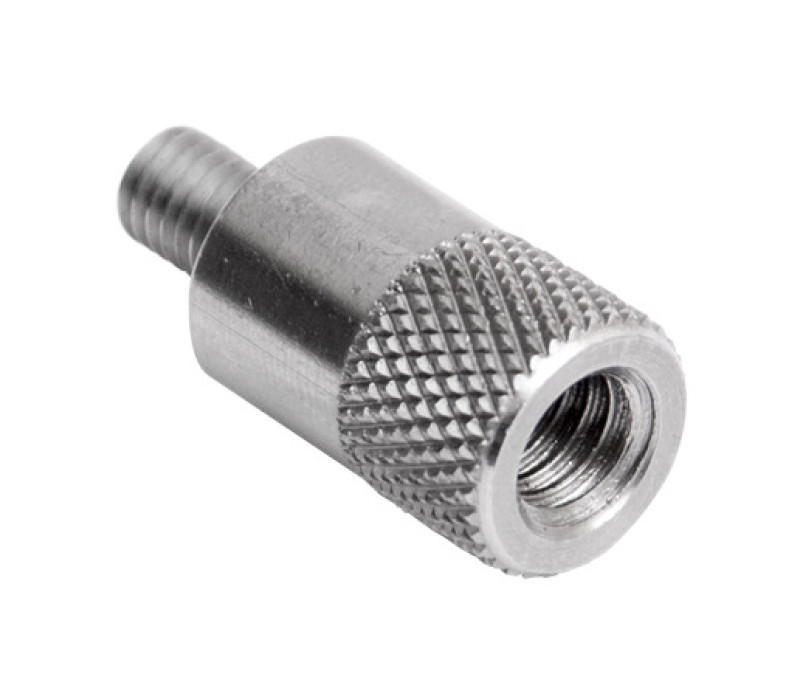

G1049 - Adapter 5/16-18F to M6M

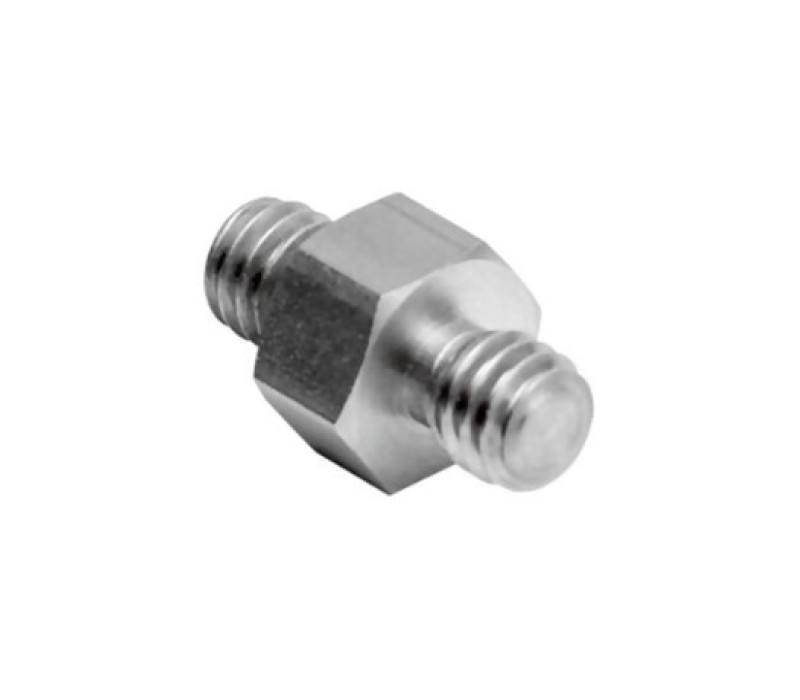

G1040 - Coupler 5/16-18M to 5/16-18M

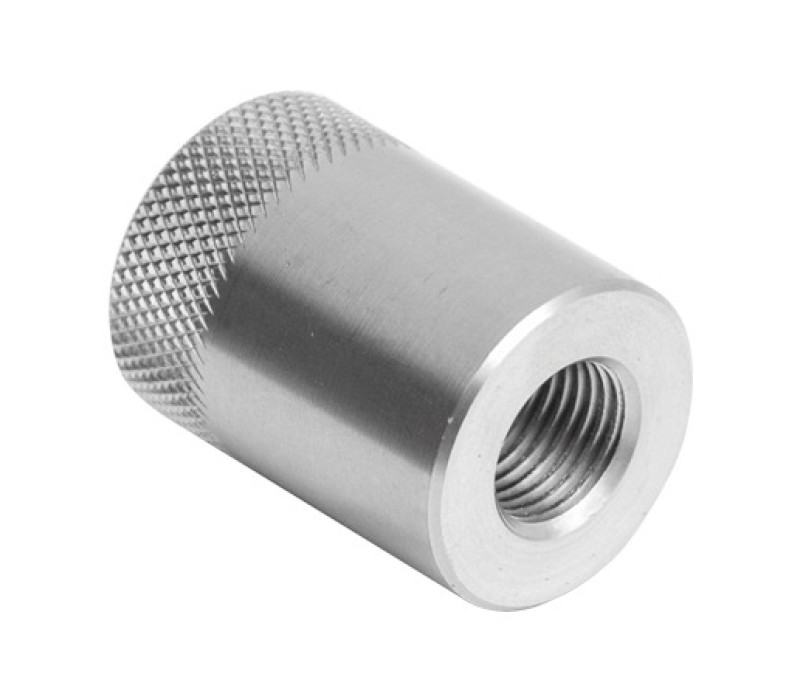

G1091 - Coupler 1/2-20F to 1/2-20F

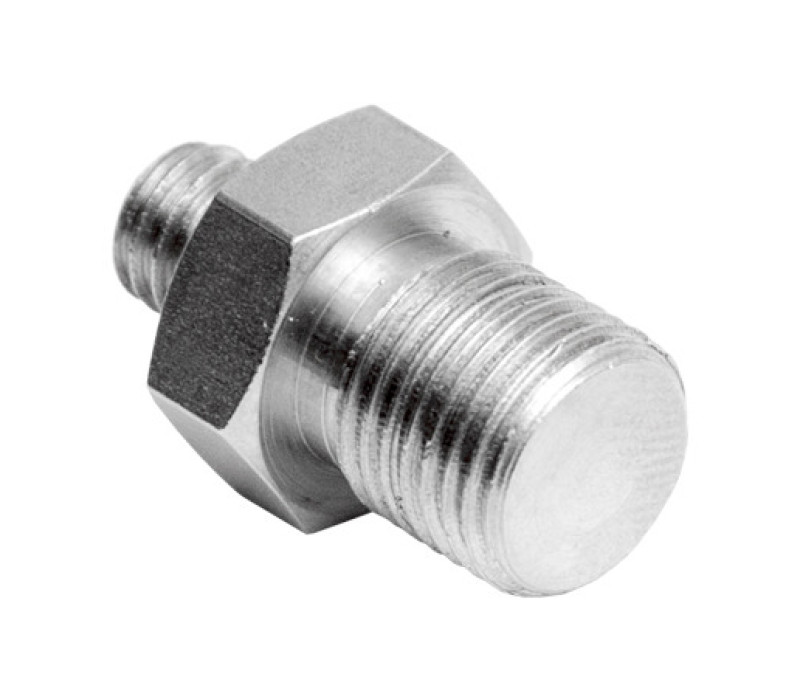

G1041 - Adapter 1/2-20M to 5/16-18M

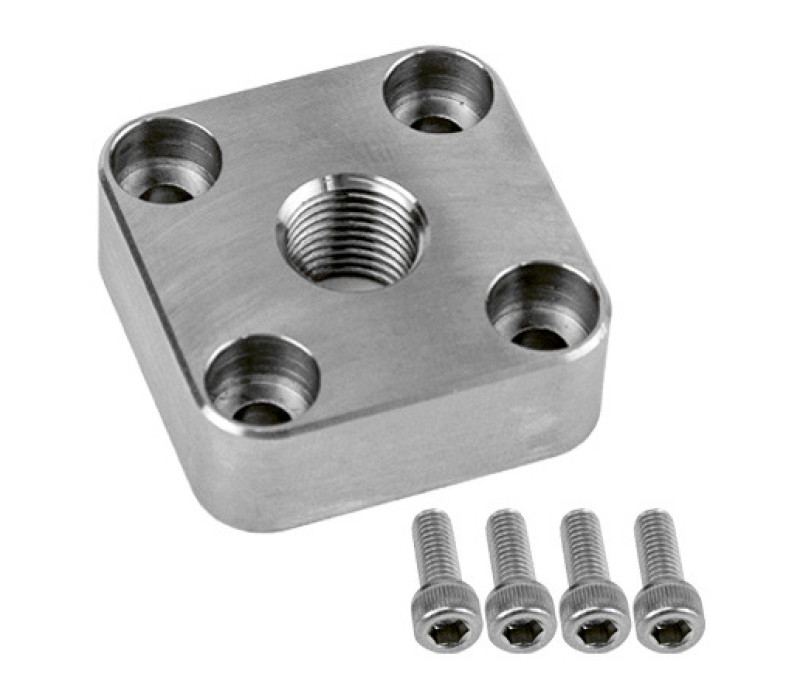

G1044 - Adapter plate, 1/2-20F

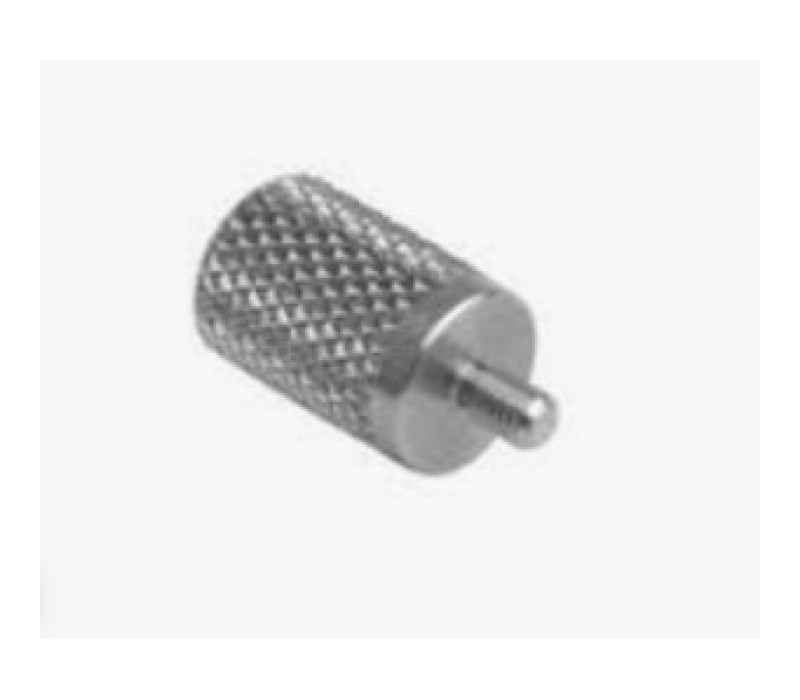

G1113 - Adapter, M3M to #4-40F

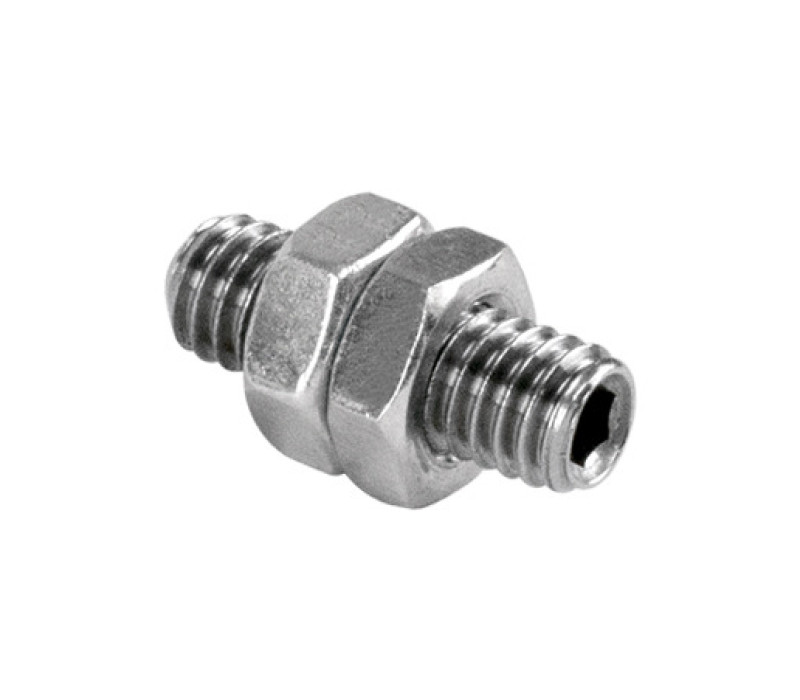

AC1082 - Coupler #10-32M TO #10-32M

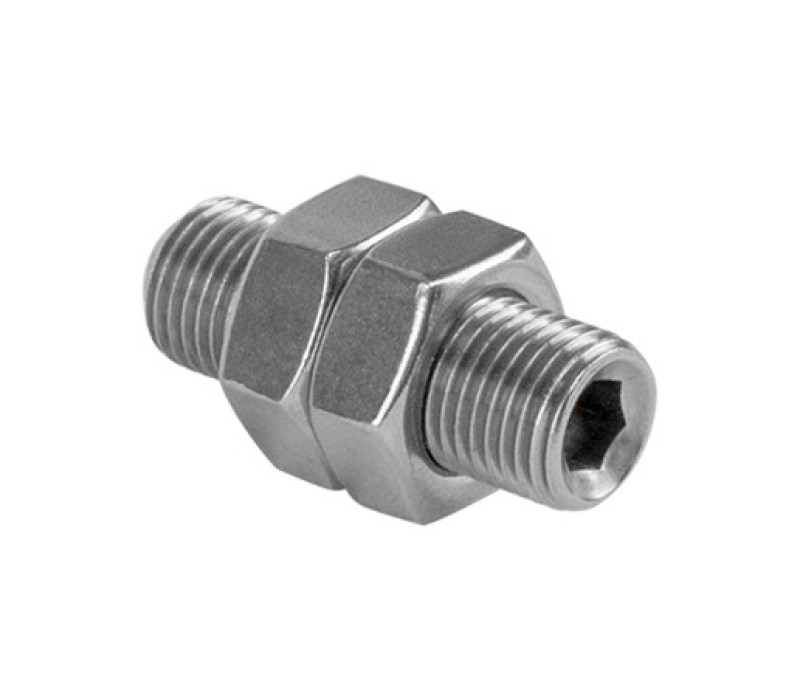

AC1082-1 - Coupler 5/16-18M TO 5/16-18M

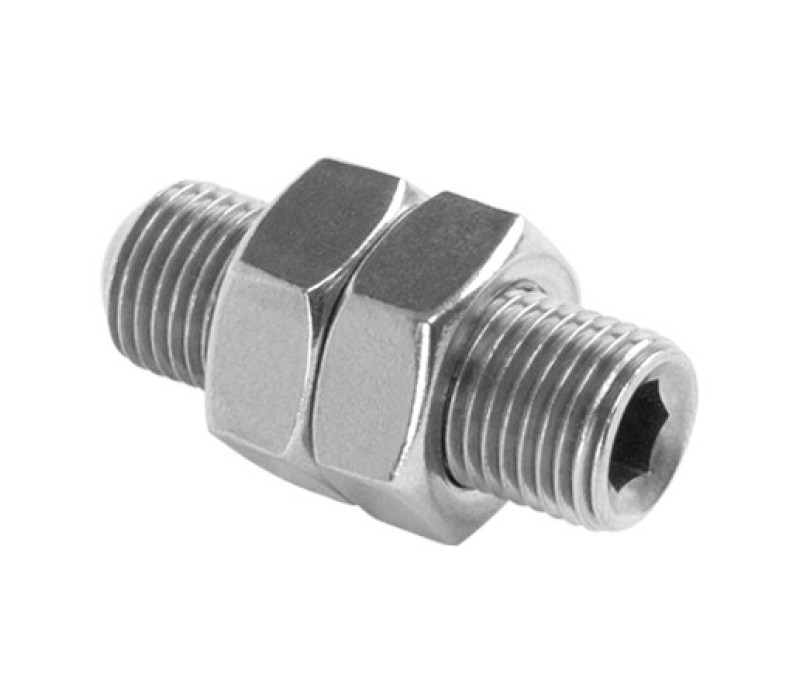

AC1082-2 - Coupler 1/2-20M TO 1/2-20M

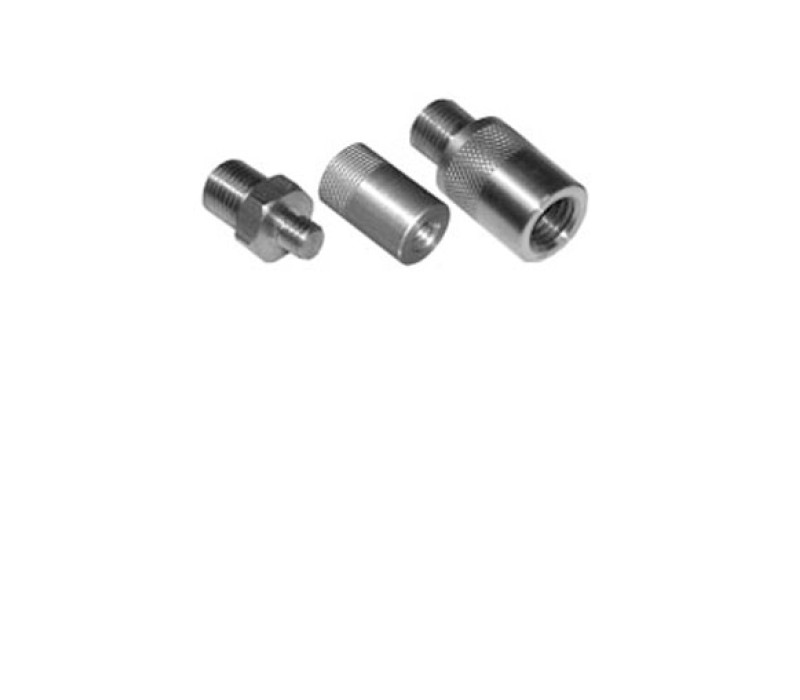

Thread Adapters & Couplings

Thread Adapters & Couplings are used between gauges, load cells, test stands grips, and attachments.
They enable fixtures and devices with different threads or M/F combinations to be used together.

Depending on the application they are suitable for tension and compression applications.

Price from € 14,00

Shop now

Different capacities available from 100 N to 9000 N
Connect gauges and load cells to fixtures with different thread
Connect male/male or female/female threads

Available adapters and couplings

D1 no header

Model	Capacity (N)	Length A (mm)	Thread B	Thread C
G1051	500	14,0	#4-40M	#10-32M
G1050	500	19,1	#10-32F	#4-40M
G1039	1000	19,1	#10-32F	#10-32F
G1030	1000	12,7	#10-32F	5/16-18M
G1067	1000	19,1	#10-32F	1/2-20M
G1048	1000	19,1	#10-32F	M4M
G1057	1000	19,1	#10-32F	M6F
G1054	1000	19,1	#10-32F	M6M
G1060	1000	19,1	#10-32M	#10-32M
G1063	1000	33,0	5/16-18F	#10-32M
G1047	1000	19,1	M4F	#10-32M
G1069	2500	31,8	5/16-18F	1/4-28M
G1037	2500	25,4	5/16-18F	5/16-18F
G1059	2500	28,7	5/16-18F	1/2-20F
G1066	2500	19,1	5/16-18F	1/2-20M
G1049	2500	31,8	5/16-18F	M6M
G1040	2500	23,4	5/16-18M	5/16-18M
G1091	5000	33,0	1/2-20F	1/2-20F
G1041	2500	26,9	1/2-20M	5/16-18M
G1044*	-	Adapter plate	1/2-20F	-
G1113	500	19,1	#4-40F	M3M
AC1082	500	19,1	#10-32M	#10-32M
AC1082-1	2500	25,4	5/16-18M	5/16-18M
AC1082-2	9000	38,1	1/2-20M	1/2-20M
*Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.

Data Sheet for all Grips and Attachments

Products

Item	Product	Price
126825	G1050 Adapter, #4-40M to #10-32F	€ 23,00
126826	G1051 Adapter, #4-40M to #10-32M	€ 23,00
130340	G1039 Coupling, #10-32F/F	€ 14,00
126829	G1030 Adapter, 5/16-18M to #10-32F	€ 18,00
126827	G1047 Adapter, #10-32M to M4F	€ 23,00
126828	G1048 Adapter, M4M to #10-32F	€ 23,00
130836	G1054 Adapter, #10-32F to M6M	€ 23,00
130343	G1040 Adapter, 5/16-18M to 5/16-18M	€ 18,00
130341	G1037 Coupling, 5/16-18F/F	€ 18,00
130342	G1049 Adapter, M6M to 5/16-18F	€ 23,00
130835	G1041 Adapter, 5/16-18M to 1/2-20M	€ 18,00
136814	G1067 Adapter, 1/2-20M to #10-32F	€ 23,00
130837	G1057 Adapter, M6F to #10-32F	€ 23,00
130839	G1060 Adapter, #10-32M to #10-32M	€ 23,00
133232	G1063 Adapter, #10-32M to 5/16-18F	€ 23,00
134952	G1069 Adapter, 5/16-18F to 1/4-28M	€ 23,00
130838	G1059 Adapter, 5/16-18F to 1/2-20F	€ 23,00
136813	G1066 Adapter, 5/16-18F to 1/2-20M	€ 23,00
136816	G1091 Coupling, 1/2-20F/F	€ 28,00
130376	G1044 Adapter plate for TSF/TST, 1/2-20F	€ 50,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
