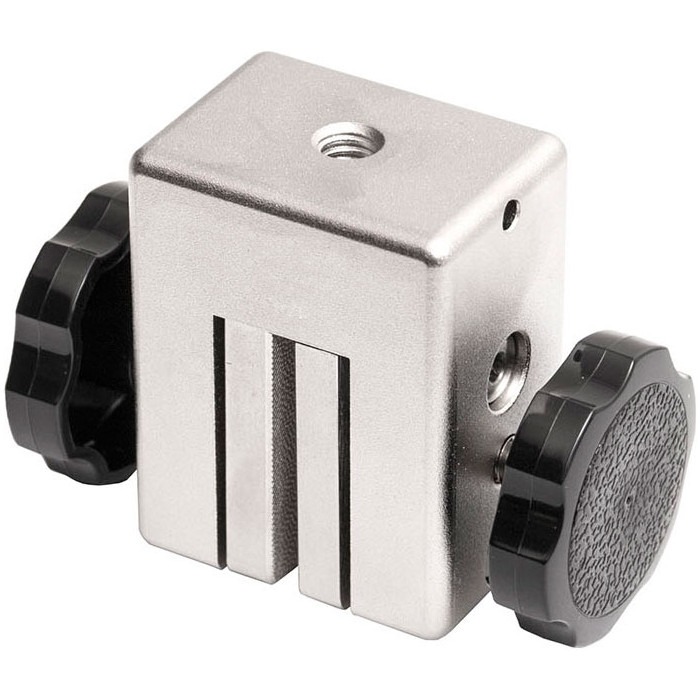

G1013 Parallel Jaw Grip


Made in the USAThe G1013 Parallel Jaw Grip is developed for general pull test applications.
It is equipped with individually adjustable, serrated, jaws and can clamp a sample up to 6,3 mm thick with a capacity of up to 1000 N pull force.

This versatile jaw features a knob on each side to adjust each jaw, and can connect directly to a load cell, test stand or force gauge with its threaded hole with 5/16-18 thread.

The G1013 can mount to quick-change eye end adapters which allow for simple grip removal / installation, and also prevent rotation.

A 5/16-18M to #10-32F thread adapter, 5/16-18 M/M stud with jam nuts, and #10-32 M/M stud with jam nuts are included.


Features
  • Small parallel grip with individually adjustable jaws
  • Capacity 1000 N
  • Rugged and compact with serrated jaws
  • Comes with thread adapter 2 studs and jam nuts

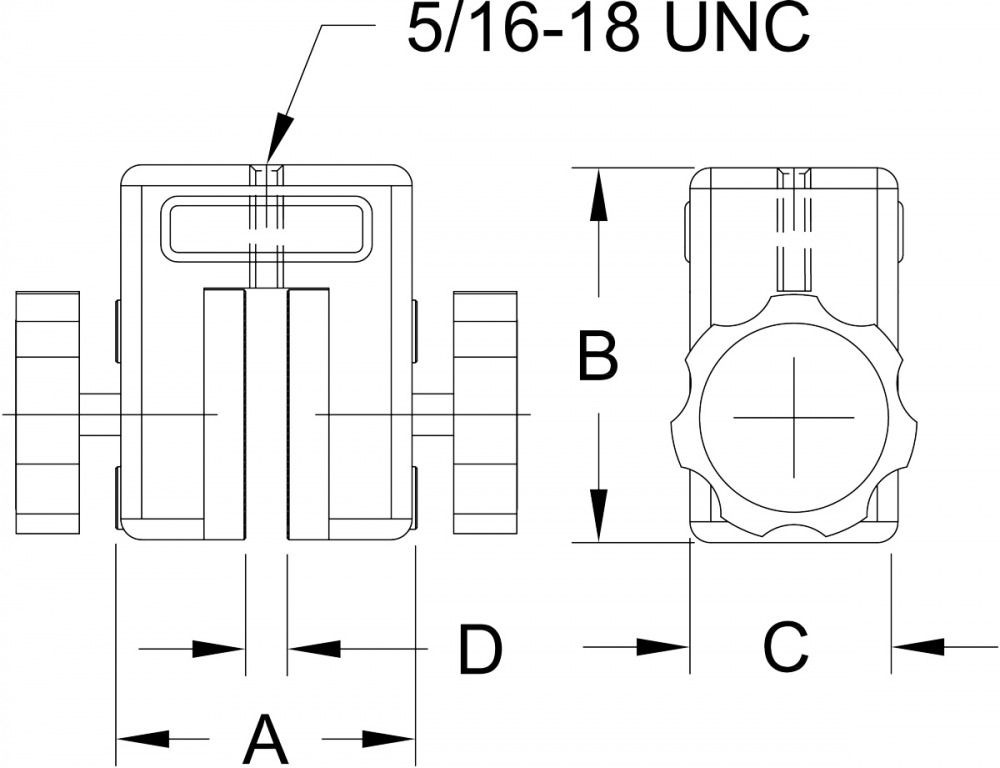

Dimensions
G1013
Dimensions-G1013


Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

G1100 Parallel clamping handle 9 kN


  • Individually adjustable, serrated jaws.
  • Available extended length jaws.
  • Eye end mounting

More details

G1100 Parallel clamping handle 9 kN

G1101 Clamping grip 1kN


  • Individually adjustable, serrated jaws.
  • Available extended length jaws.
  • Eye end mounting

More details

G1101 Clamping grip 1kN

F105 / F305 / F505 / F505H Force Test Frame with IntelliMESUR® controls


  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Integrated motion control and data collection solution with seamless interface for FS05 force sensor without cables
  • Plug & Test® system can work with third-party load cells through PTAF adapter

More details

F105 / F305 / F505 / F505H Force Test Frame with IntelliMESUR® controls

Series-F + EasyMesur F105 / F305 / F505 / F505H Series F test frames with EasyMESUR® F105 / F305 / F505 / F505H


  • Integrated Force sensor and seamless interface for FS05 force sensor without cables
  • Integrated touch screen control panel
  • Set up, run, and analyze data via the integrated EasyMESUR® control panel

More details

Series-F + EasyMesur F105 / F305 / F505 / F505H Series F test frames with EasyMESUR® F105 / F305 / F505 / F505H

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5 Advanced Digital Force Gauge

Specifications
Capacity:1000 N (200 lb)
Size:31.8 x 44.5 x 57.2 mm (L x W x H)
(1.25" x 1.75" x 2.25")
Maximum sample thickness:6.3 mm (0.25")
Thread:# 5/16-18 UNC
Included items:

A 5/16-18M to #10-32F thread adapter

5/16-18 M/M stud with jam nuts

#10-32 M/M stud with jam nuts

Weight:0.29 kg (0.8 lb)
Shipping Weight:0.9 kg (2 lb)

Downloads

Buy Now
Product

Product
Price
Quantity
130054
G1013 Parallel Jaw Grip, 5/16-18F
€ 254,00

Accessories

Product
Price
Quantity
130808
G1018-2 Swivel adapter, 5/16-18M to 5/16-18F
€ 70,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
