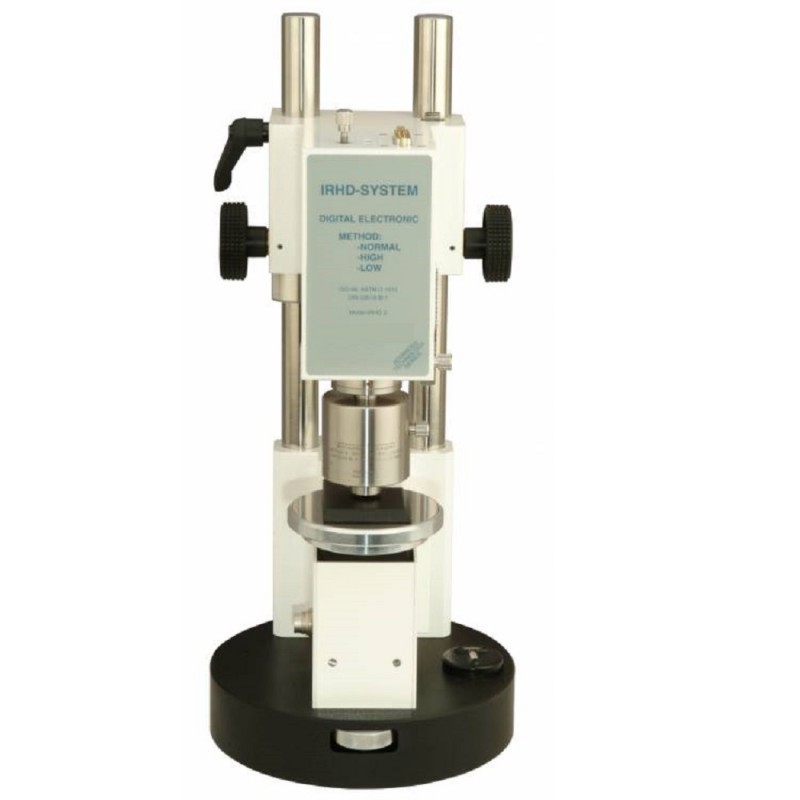

Macro IRHD Durometer hardness system with different inserts


Made in GermanyThe Macro IRHD Durometer hardness system is the professional measurement system for hardness tests on elastomers and plastics with a thickness of minimal 6 mm according to IRHD and durometer hardness. This hardness measuring systems meets the requirements of DIN ISO 48, ISO 48, ASMT D 1415 and DIN 53505 international standards.

The Macro IRHD conducts hardness measurements with use of an insert that can be inserted without the use of tools. Different inserts are available to fulfill the requirements of your specific application: 1.0 mm, 2.5 mm, 5.0 mm and Durometer Shore A. The electronic identification in each insert ensures the electronic identification. Each insert has its own corresponding software, which starts up automatically. Operator errors are prevented!

The whole measuring system is controlled by a PC and PC software, which works under Microsoft Windows and provides multiple measurement features, like the output of hardness values, graphs, statistics, test reports and many more. All data can be transferred by the ASCII-output. Due to the modular construction the measuring head can be changed easily.

Available Inserts:
IRHD TYPE N (Normal hardness) round indenter Ø 2,5 mm
- DIN ISO 48, ISO 48
- ASTM D 1415

IRHD TYPE H (High hardness) round indenter Ø 1,0 mm
- DIN ISO 48, ISO 48
- ASTM D 1415

IRHD TYPE L (Low hardness) round indenter Ø 5 mm
- DIN ISO 48, ISO 48
- ASTM D 1415

3.Shore A
- DIN ISO 7619-1
- ISO 868
- ISO 7619-1
- ASTM D 2240



Features
  • Different inserts available: 1 mm / 2.5 mm / 5 mm / Shore A Durometer
  • Meets the requirements of DIN ISO 48, ISO 48, ASMT D 1415 and DIN 53505
  • Automatic operation by use of a PC & software - operator errors are eliminated!
  • Appropriate for hardness tests on elastomers and plastics thicker than 6 mm IRHD

Related Products

IRHD Micro IRHD Hardness tester


  • Developed for hardness measurements on very thin materials from 1 to 5 mm
  • Measures the hardness of small, thin materials and O-rings

More details

IRHD Micro IRHD Hardness tester

IRHD O-Ring center device for Micro IRHD hardness systems | O-ring center device


  • Exact measurements of O-rings at the measuring axis
  • Fully automatic cycle
  • Suitable for O-ring cord with a diameter from 0.8 mm to 8 mm; adjustable steps of 0.01 mm

More details

IRHD O-Ring center device for Micro IRHD hardness systems | O-ring center device

IRHD X-Table Center Device with digital gauge


  • Custom designed sample holders available on request
  • For hardness measurements of small, irregular parts

More details

IRHD X-Table Center Device with digital gauge

IRHD Prism center device for use with Micro IRHD systems


  • Center prism is removable to measure also bigger parts
  • For samples with 4 - 50 mm exterior diameter

More details

IRHD Prism center device for use with Micro IRHD systems

IRHD X-Y center device for Micro IRHD hardness tester


  • Measurements at the highest point of the O-ring
  • Full automatic measuring cycle
  • Suitable for O-rings and flat materials

More details

IRHD X-Y center device for Micro IRHD hardness tester

IRHD platform for Micro IRHD hardness system


  • For measuring larger samples
  • Attachment without any tools

More details

IRHD platform for Micro IRHD hardness system

IRHD RTB Rubber test blocks


  • Test blocks for regularly reference checks
  • Available in different ranges
  • Display of mean value, range and standard deviation
  • Calibration certificate included

More details

IRHD RTB Rubber test blocks

Specifications
Available inserts:1 mm (IRHD H) / 2.5 mm (IRHD N) / 5 mm (IRHD L) / Durometer A
Dimensions IRHD unit:200 mm x 470 mm
Dimensions controller:290 mm x 260 mm x 75mm
Weight (net):17.5 kg
Resolution:0.1 IRHD
Standards:DIN ISO 48, ISO 48, ASTM D 1415

Buy Now
Products

Product name
Price
Quantity
IRHD-N-SYSTEM - IHRD N Motorized Test System Kit with Software
€ 10.785,00
IRHD-L-SYSTEM - IHRD L Motorized Test System Kit with Software
€ 10.785,00
IRHD-H-SYSTEM - IHRD H Motorized Test System Kit with Software
€ 10.785,00
IRHD-SHORE A-SYSTEM - IHRD SHORE A Motorized Test System Kit with Software
€ 10.785,00

Accessories

Product name
Price
Quantity
IRHD-INSERT-N - IRHD Insert for IRHD N Testing (Round Indentor Ø2.5mm)
€ 1.085,00
IRHD-INSERT-L - IRHD Insert for IRHD L Testing (Round Indentor Ø5mm)
€ 1.085,00
IRHD-INSERT-H - IRHD Insert for IRHD H Testing (Round Indentor Ø1.0mm)
€ 1.085,00
IRHD-INSERT-SHORE-A - IRHD Insert for SHORE A Testing ISO 868, ISO 7619-1 & ASTM D2240
€ 1.085,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
