KC Heay-duty Wedge Grips


3 Models
KC-100: 0-50 Kg / 0-110 lbs / 0-500N Capacity
KC-1000: 0-100 Kg / 0-220 lbs / 0-1000N Capacity
KC-5000: 0-500 Kg / 0-1100 lbs / 0-5000N Capacity

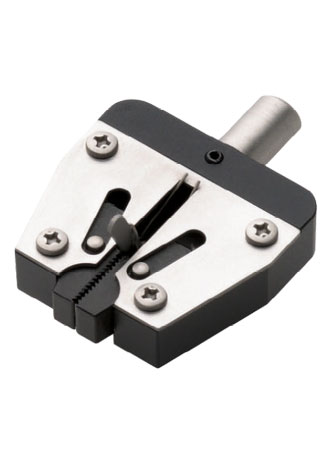

This spring-loaded wedge grip is ideal for tensile measurements of high capacity materials. Attachment/detachment of a test piece can be done by one-touch operation. The wedge grip is self-tightened by applying tensile force (spring-loaded wedge grip).

Features
  • Spring-loaded wedge grip
  • Self-tightened
  • Attachment/detachment of a test piece can be done by one-touch operation
  • 3 Models

Dimensions
Dimensions Imada Grips  KC


Specifications
Capacity
KC-20: 110 lbf
KC-1000: 220 lbf
KC-5000: 1100 lbf
Width
KC-20: 46 mm
KC-1000: 46 mm
KC-5000: 75 mm
Height
KC-20: 59 mm
KC-1000: 59 mm
KC-5000: 94 mm
Depth
KC-20: 14.5 mm
KC-1000: 14.5 mm
KC-5000: 36 mm
Jaw Opening
KC-20: Max 2 mm
KC-1000: Max 2 mm
KC-5000: Max 5 mm
Jaw Width
KC-20: 9.8 mm
KC-1000: 9.8 mm
KC-5000: Max 23.8 mm
Mounting Crew
KC-20: M6 P1
KC-1000: M6 P1
KC-5000: M10 P1.5

Related Products

WTT-HD Horizontal Wire Terminal Tester


  • For checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests
  • Measuring Range: 0-100 Kg / 0-1000N / 0-220 lbs

More details

WTT-HD Horizontal Wire Terminal Tester

Buy Now
Products

Product name
Price
Quantity
KC-100 Wedge Grip 110 lb
€ 480,00
KC-1000 Wedge Grip 220 lb
€ 480,00
KC-5000 Wedge Grip 1100 lb
€ 664,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
