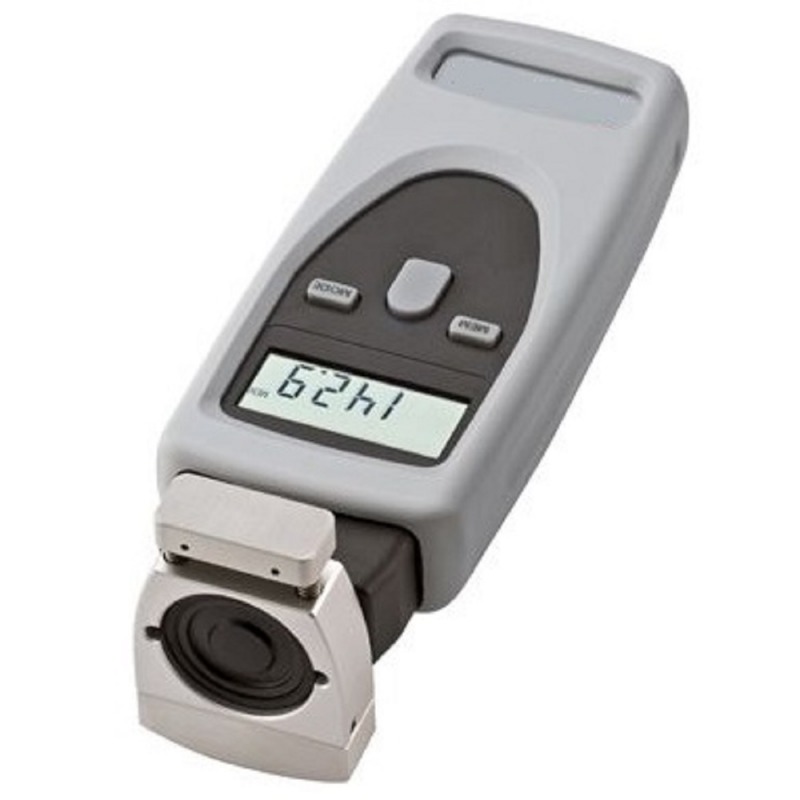

CDT-2000HD-TW Welding Wire Feed Speed Meter


Made in GermanyFor use on Welding Wire Diameter Range of 0.8 to 3.0mm.

It has been developed to meet the special requirements for measurement of speed and length within the welding industry.

The CDT-2000HD-TW complies with all required norms and can therefore be used as an additional measurement instrument. It can be applied to optical and mechanical measurement of welding wire feed speed and is a reliable tool for quality control of welding-based production.

Operation is simple and requires no training. The wire is placed between the rollers by pressing the top to release the jaws. As soon as the wire feed is triggered, the speed is measured and recorded on the digital display.



Features

  • Instrument for measuring rotational speed, wire speed and length
  • Tool for preparing and documenting welding procedure approvals (WPQR)
  • Accuracy Class of 0.02% of reading or 1 digit
  • Tool for preparing and documenting welding procedure specifications (WPS)
  • Reliable and versatile tool for quality control of welding-based production
  • Spring-loading and ball-bearing mounted contact roller eliminates slip and makes for highest possible accuracy
  • Total Length can also be measured and displayed (in Meters, Feet or Inches)
  • Wire Speed can be measured in any of the following user-selected units: m/min, ft/min, in/min, m/sec or ft/sec
  • All-metal construction designed for trouble-free use even in the toughest production environments

Complete Kit

The CDT-2000HD-TW is supplied in a foam-fitted, hard-plastic Carrying Case, with

  • Tachometer
  • Welding Wire Speed Adapter
  • Slide-In Tachometer Contact Adapter
  • 6" Surface Speed Wheel
  • 0,1m Surface Speed Wheel
  • Cone Tip
  • Funnel Tip
  • Extension Shaft
  • ReflectiveTape
  • Two (2) AA Batteries (1.5 V)
  • Calibration Certificate
  • Operating Instruction Manual


Specifications

Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact: Visible LED light beam Contact: Contact adapter
Engineering Units
RPM: RPM Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters
Sensing Distance
Up to 60 cm
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Battery
2 AA (1.5 V) or rechargeable
Weight
170 gram
Housing Material
ABS Plastic housing with removable protective rubber shell
Operating Temperature
0 to 50° C
Storage Temperature
-20 to 70° C

Video CDT-2000HD-TW


Measuring Ranges

RPM
Non-Contact 1-99,999
Contact 1-19,999
Surface Speed
m/min
0.10-1,999

ft/min 0.40-6,550
in/min 4.00-78,700
m/sec 0.10-33.30
ft/sec
0.10-109

Total Length
Meters 99,999
Feet 99,999
Inches 99,999
