CDT-2000HD Contact and Non-Contact Digital Tachometer


Made in GermanyThe CHECK-LINE CDT-2000HD Combination Portable Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.

When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The CDT-2000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.

The CDT-2000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

A non-contact only version, the CDT-1000HD, is also available.


Applications
CDT-2000HD tachometer applications

360 degree photo

Features
  • Built-in memory stores maximum, minimum, average and last reading for recall to the display
  • NIST Certification included at no additional cost
  • Accuracy of 0.02% with a resolution of 0.01 RPM
  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • NEW - Now includes larger 6 inch circumference Surface Speed Wheel standard
  • NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
  • NEW - Can be set for use with 2 optional-sized surface speed wheel (12 inch or 10 cm)

Measuring Ranges
RPM
Non-Contact 1-99,999
Contact 1-19,999
Surface Speed 6"* (Standard) 12"* 0.1 m*
m/min 0.10-1,524 0.40-609.6 0.10-1,999
ft/min 0.40-5,000 0.40-2,000 0.40-6,550
in/min 4.00-60,000 4.00-24,000 4.00-78,700
m/sec 0.10-25.40 0.10-10.16 0.10-33.30
ft/sec 0.10-83.33 0.10-33.33 0.10-109
Total Length
Meters 99,999
Feet 99,999
Inches 99,999
* Note: Sizes listed are the circumference of measuring wheel

LCD Display

Units of Measure Indicators show the units of measure, selected by the user.

Contact Indicator shows if contact or non-contact operation is selected.

On-Target Indicator confirms that the measurements are reliable.

Low Battery Indicator alerts the operator if the batteries need replacement.

Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.
LCD Display CDT-2000HD

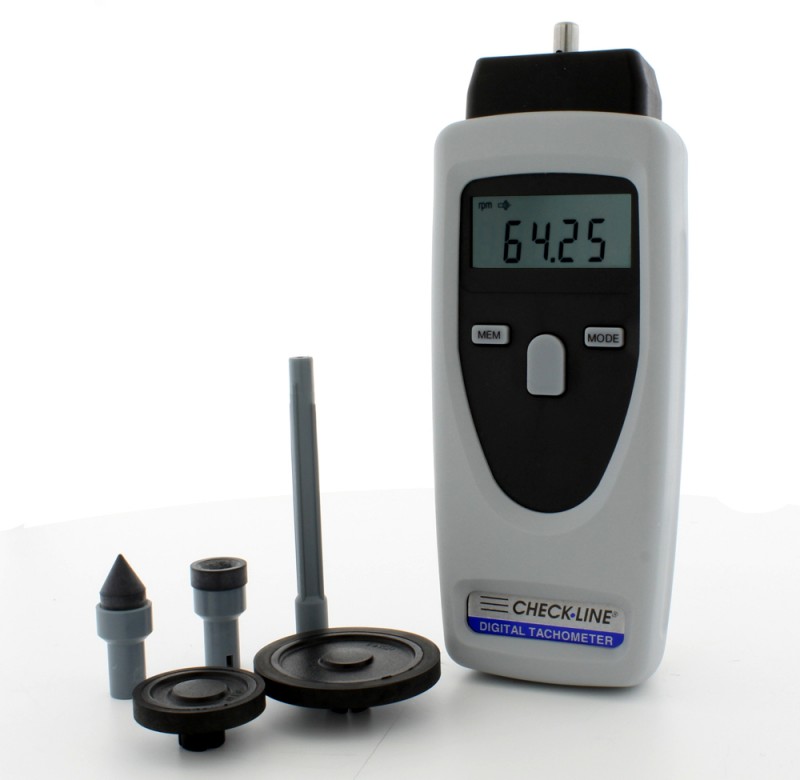

Complete Kit

The CDT-2000HD includes:

  • Tachometer,
  • Slide-In Contact Adapter,
  • Cone Tip Adapter,
  • 0.1 m Universal Surface Speed Wheel,
  • 6" Universal Surface Speed Wheel,
  • Shaft extension 7,5 cm
  • Reflective Tape,
  • Two (2) AA Batteries (1.5 V)
  • NIST Certification included,
  • Operating Instruction Manual

    All supplied in a foam-fitted, hard-plastic Carrying Case.


Specifications
Measuring Ranges
RPM
Non-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpm
Surface Speed
0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min
Length
0.01 - 99,999 feet
0.02 - 99,999 meters
1.0 - 99,999 inches
Resolution
0.01 from 0 - 100
0.1 from 100 - 1,000
1 from 1000 - 99,999
Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact: Visible LED light beam
Contact: Contact adapter
Engineering Units
RPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters
Sensing Distance
Up to 24 inches (60 cm)
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Weight
6 ounces (170 grams)
Housing Material
ABS Plastic housing with removable protective rubber shell
Operating Temperature
32 to 122º F (0 to 50º C)
Storage Temperature
-4 to 150º F (-20 to 70º C)
Accessories included
Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories
Shaft extension, 3.15 inches (80 mm)
Warranty
5 years
Calibration Certificate
Included
Dimensions
18 x 6.5 x 3.5 cm
Netto Weight
220 gr
