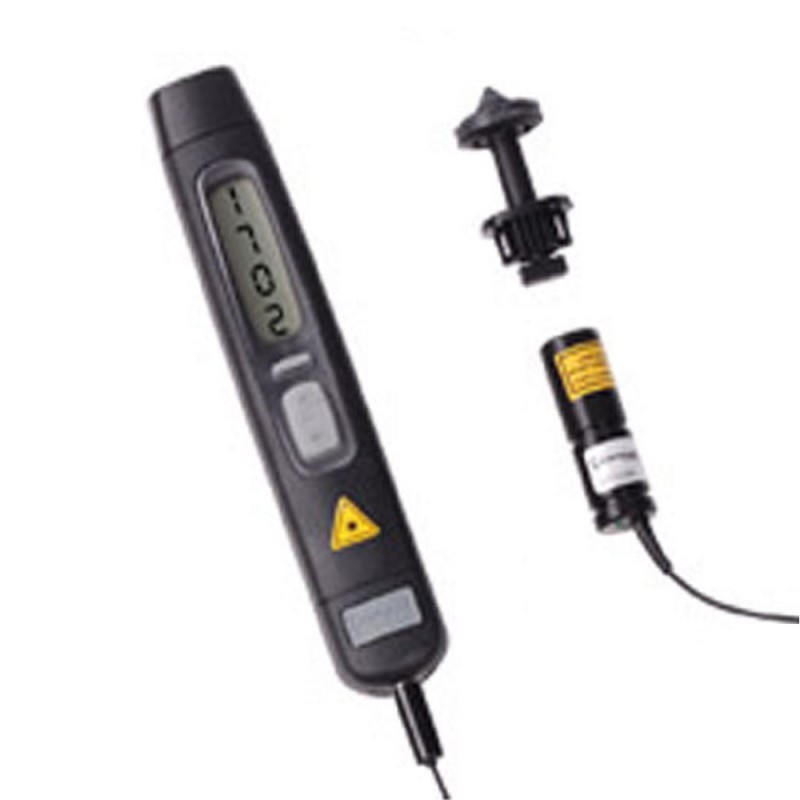

A2103-LSR-K Advent Professional Optical/Contact Tachometers


Signal input features 5v Pulse Signal is via the 3,5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.

Contact Measurement
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs.

Additional information
Special capture and averaging features:
Maximum - Captures max. speed in 0.1 secs
Minimum - Captures min. speed in 0.1 secs
Timebase - 0.1 seconds in Capture mode
Average - Averages over last 8 readings


Features
  • Time & Count modes
  • Data capture and very fast response modes - 0.1 seconds update time
  • Optical range of up to 2 metres - the optical performance is second to none
  • Traceable certificates supplied as standard
  • A very versatile multipurpose Tachometer/Counter, with both Optical or Contact rpm, linear rate/distance ranges
  • Additional remote Laser Optical Sensor for rpm monitoring in difficult access applications
  • Unique inverting display, allows easy reading when in limited access situations

Specifications
Laserinternal & remote
Optical Range50 - 2000 mm
Angle+/- 80 degrees
Light Source1mw Laser 635nm class II
Speed Range3 - 99,999 RPM or RPS equivalent
Resolutionmax. 0.001 (autorange)
Accuracy0.05% +/- 1 digit
Update0.8 sec
Capture Mode0.1 sec
Count0-99999 revs or length in linear
Time Interval0-99999 secs (autoranging)
MemoryHolds last reading 1 minute
On Target IndicatorYes
Low Battery IndicatorYes
Signal Input3.5mm socket for external optical sensor
Remote SensorMiniLaser with 1 metre cable included
Power4 x AAA batteries (included)
Contact AdapterIncluded
Carrying CaseIncluded
Reflective TapePack of tape included

Buy Now
Product

Product name
Price
Quantity
A2103-LSR-K - Combination Laser Optical Tachometer
€ 499,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
