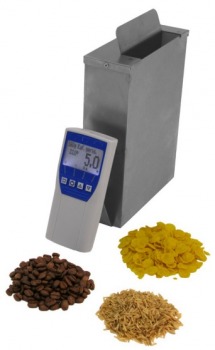

FS3 Food and luxury food moisture meter


Measuring range: 0 - 40% moisture content
Calibration accuracy: 0.4%

The FS3 is a food and luxury food moisture meter for peeled and unpeeled raw coffee, roast and ground coffee, cocoa beans, poppy seeds, rape, pumpkin seeds, peas, soybeans, scarlet runner beans, wheat, peeled, unpeeled and brown rice, linseed, sesame, sorghum and buckwheat; additional products on request.

Only the exact moisture measurement of food and special fruits allows fair payment for producers, traders and end customers. Therefore the quality control of grain and food is of particular importance. Using a high quality moisture meter you can prevent machine problems and avoid paying the high product price only for water.

The humimeter FS3 Food and luxury food moisture meter enables an easy and quick measuring procedure. Switch on the measuring instrument, fill in your sample and read off the moisture content from the LCD. The measuring values can be stored on the device.

With the FS3-USB the measuring values can also be transferred to a PC or mobile printer. The integrated online function enables the transfer of stored data to other programs.


Features
  • Resolution 0.1%
  • Calibration accuracy to reference material +/-0.4%
  • Sample temperature measurement
  • Automatic temperature compensation
  • Measuring range 5 to 40% (depending on the material)
  • Hectoliter compensated
  • Temperature can be set to
    °C or °F as required
  • Measurement within seconds without prior treatment of samples
  • Hold function
  • Manual saving of results
  • Datalog for 10.000 logs with measuring point report
  • Supplier´s data and batch number can be recorded
  • Robust stainless housing
  • Large LCD display with backlight

Built-In Material Calibrations
Name Material Fill Quantity Range
300g wheat wheat 300g 5 up to 28%
300g rape rape 300g 5 up to 18%
230g pumpkin pumpkin seeds 230g 2 up to 20%
310g peas peas 310g 5 up to 25%
300g soybeans soybeans 300g 9 up to 18%
277g beetle bean beetle beans 277g 8 up to 25%
300g rice peeled rice peeled 300g 9 up to 25%
250g rice unpe. rice unpeeled 250g 4 up to 30%
300g rice brown brown rice 300g 4 up to 26%
285g raw cof. pe. raw coffee peeled 285g 9 up to 18%
180g raw cof.unp. raw coffee unpeeled 180g 5 up to 40%
160g coffee roa. roasted coffee 160g 3 up to 20%
150g coffee kib. kibbled coffee 150g 2 up to 10%
300g poppy poppy 300g 5 up to 15%
220g cocoa bean cocoa beans 220g 4 up to 20%
300g flax seeds flax seeds 300g 7 up to 15%
280g sesame sesame 280g 3 up to 10%
300g sorghum sorghum 300g 5 up to 15%
300g buckwheat boekweit 300g 5 up to 18%
Empty - - -
Empty - - -

Empty calibration curves:
On request calibration curves can be developed for your product. Also there is the possibility to add already existing calibration curves afterwards.

The following curves can be added by selecting Add-Cal for each cal you wish to add to your gauge.
Currently we have the following additional curves available:
- Raw Cashew Nuts Curve* (Raw Cashew with Shell)
- Pealed Cashew Nuts Curve*

* These curves where referenced to an ISO939 (Dean & Stark) drying method.

Specifications
Measuring range0 up to 40% depending on the material
Resolution0.1% water content
0.5°C temperature
Calibration accuracy +/- 0.4%
Sample weight150 g - 310 g (depending on the material)
Menu languagesEnglish, German, French, Italian
HousingGauge: Plastique
Reservoir: Stainless Steel
DisplayLCD 128 x 64 mm, display with backlight
Power4x 1.5 Volt AA batteries
Current consumption 60mA (with light)
Operation temperature 0 up to +40°C
Temperature compensationautomatically
Auto Switch OFFafter app. 6 minutes
Dimensions260 x 70 x 250 mm
Weight approx. 1.3 kg (with batteries)
Degree of protectionIP 40
Warranty2 years

Complete Kit
The FS3 is delivered as a complete kit including:
- FS3 gauge,
- digital scale (max.500g, 0,1g),
- measuring cup 0.5 liter,
- plastic case,
- 4 pcs. 1,5Volt AA Alkaline batteries.


The FS3-USB is delivered as a complete kit including:
- FS3 gauge,
- digital scale (max.500g, 0,1g),
- measuring cup 0,5 liter,
- plastic case,
- 4 pcs. 1,5Volt AA Alkaline batteries.
- USB data output connection,
- Software & USB cable.


Buy Now
Products

Product name
Price
Quantity
FS3 - Food and Luxury Food moisture meter
€ 1.180,00
FS3-USB - FS3- USB Food and Luxury Food moisture meter with USB
€ 1.525,00

Accessories

Product name
Price
Quantity
Humi-Create-Cal - Creating new calibration curve/laboratory analysis testing for
€ 475,00
Add-Cal - Adding existing curve to instrument or verification of the curve
€ 99,00
FS-Printer - HumiPrinter-Portable Battery Powered Thermo Printer
€ 390,00
FS-Cal - Calibration Certificate - Factory calibration certificate protocol for air humid
€ 115,00
FS-ISO - ISO measuring device check for FS2/FS3/FS4/BP1, test medium and standard weight
€ 115,00
FS-Adapter - Power supply unit for continuous operation of the scale
€ 0,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
