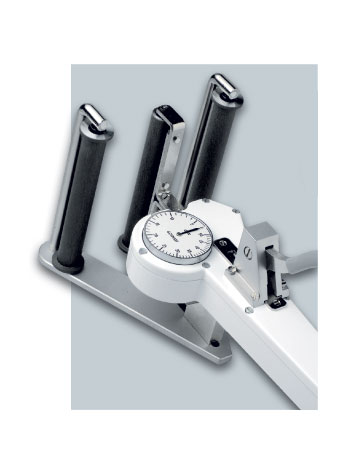

DXR Tension meter with special roller support


Made in GermanyTension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.

The dual-flanged rollers for narrow webs less then 4 inches (100 mm) make better filament guide possible.

Note: This model does not include a filament guide and material thickness compensator.

Tension meter

Features

  • Dual-flanged outer guide rollers with 50 mm or 100 mm width (single-flanged rollers optional)
  • Ball-bearing mounted, tape rollers
  • 41mm Ø scale
  • Roller shifting mechanism ensure easy acquisition of the running material
  • Everything in operator's view:
    - the guide rollers
    - the measured material
    - the readings
  • Each instrument is individually calibrated for highest accuracy
  • Rugged aluminium housing
  • Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Tension Ranges

Model Ranges Measuring Head Width** mm Roller Widths mm
DXR-2000 200-2000 12550,100
DXR-5000 400-5000 12550,100
DXR-10K-L 2.5-10 daN 12550,100
DXR-20K-L 5-20 daN 20050,100
DXR-30K-L 5-30 daN 20050,100
DXR-50K-L 5-50 daN 20050,100
Other tension ranges, measuring head widths and material path calibrations available on request. Other units of measure available, such as g or kg.
* SCHMIDT calibration material textile ribbon or film, depending on tension range and roller width
** Outer distance between outside guide rollers

Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

DXR Dial Faces

Related Products


Guide Rollers

Roller Widh Line Speed
...m/min
Roller Material
50 mm 1000 Hardcoated aluminium
100 mm 1000 Hardcoated aluminium

Options


Lever (L)

A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher.

Memory Pointer (M)

Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial.


Complete Kit

Delivery includes:
Tension meter in a foam-fitted hard-plastic carrying case, operating instructions in English or German as requested

Specifications

Calibration:
According to SCHMIDT factory procedure
Accuracy:
±1% full scale or ±1 graduation on scale
Scale diameter:
41 mm
Maximum Speed:
1000 m/min
Temperature range:
10-45ºC
Air humidity:
85% RH, max.
Housing material:
Die-cast aluminium
Housing dimensions:
188 x 85 x 45 mm (L x W x H)
Weight, net (gross):
approx. 980 g (2200 g)
