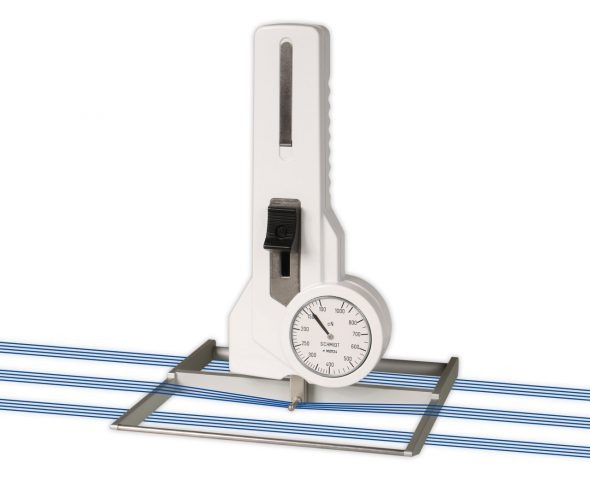

    DXK Warp Tension Meter

    Made in Germany Analogue tension meter for static warp-thread measurements on stopped weaving machines

    The DXK is a mechanical hand-held tension meter for measuring the tension of a single warp thread or several threads while the weaving machine is stopped. Three models cover measuring ranges from 20–300 cN to 200–2000 cN.

    Its 15 × 17 cm reference frame rests directly on the warp to provide a stable measuring position, while the roller shifting mechanism helps engage the selected threads. For repeatable results, the same number of ends should be measured each time and the threads should remain in their normal alignment during measurement.
    • Analogue mechanical tension measurement for warp threads on stopped weaving machines
    • Measures the tension of a single warp thread or several threads
    • Three measuring ranges from 20–300 cN to 200–2000 cN
    • Large 15 × 17 cm reference frame provides a stable measuring position on the warp
    • 10 mm sensing pin
    • Roller shifting mechanism facilitates acquisition of the material
    • 41 mm analogue scale keeps the measured material and reading in the operator’s view
    • Each instrument is individually calibrated according to the manufacturer’s factory procedure
    • No material thickness compensator
    Complete Kit
    • DXK tension meter
    • Special finger support
    • Certificate of Compliance with the order 2.1 according to EN 10204
    • Instruction manual
    • Carrying case
    Measuring RangesDXK-300: 20–300 cN
    DXK-1000: 100–1000 cN
    DXK-2000: 200–2000 cN
    CalibrationAccording to manufacturer factory procedure; standard calibration with fabric tape
    Accuracy±1% full scale or ±1 graduation on scale
    Reference Frame15 × 17 cm
    Sensing Pin Width10 mm
    Scale Diameter41 mm
    Temperature Range10–45°C
    Air Humidity85% RH max.
    Housing MaterialDie-cast aluminium
    Housing Dimensions188 × 85 × 45 mm (L × W × H), without measuring frame
    WeightApprox. 470 g net (1000 g gross)

    Options

    Code M memory pointer

    Retains the highest measured value during a measurement period and can be manually reset.

    Inspection Certificate 3.1

    Inspection Certificate 3.1 according to EN 10204 with calibration report, available on request.

    Related Products

    Browse Related Products

    Analogue Tension Meter DXR for Tapes and Bands

    Analogue Tension Meter DXR for Tapes and Bands

    Order Now

    Products
    Item Product Price  Quantity Action
    132482DXK-300 Tension Meter 20-300 cN
    132481DXK-1000 Tension Meter 100-1000 cN
    131933DXK-2000 Tension Meter 200-2000 cN
    Accessories
    Item Product Price  Quantity Action
    130570Code M - Memory Pointer Tension Meter

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
