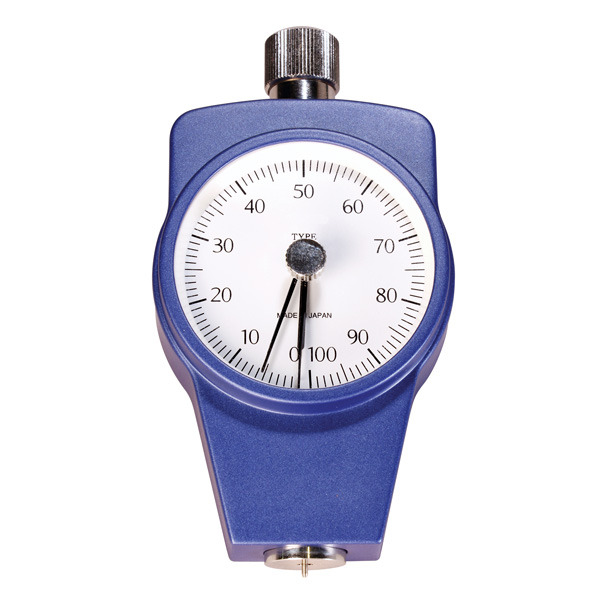

E2 hardness tester with Shore and Asker hardness scale


The E2 basic durometers provide quick hardness values on different materials depending on the selected scale. This hardness tester is available with Shore A, D, E scale as well as with Asker C scale.
The Shore scales conform to ASTM D-2240 and the Asker C scale to JIS K-7312.

A solid magnesium alloy housing protects the inside and provides a good usability. A peak indicator is optionally available for all models.


Features
  • Solid, easy to handle, magnesium alloy housing
  • Delivered with a NIST traceable calibration certificate
  • 4 different scales available

Dimensions
Dimensions-E2


Selection Guide
ModelScaleIndenter GeometryTypical ApplicationNormMeasuring Force
E2-AShore AFlat PointStandard rubberASTM D-22401 kg force
E2-DShore D Cone PointHard rubber & plasticASTM D-22401 kg force
E2-EShore EHemisphericalSoft rubber ASTM D-2240 5 kg force
E2-CAsker CHemisphericalSoft rubber, sponges & foamJIS K-73121 kg force

Complete Kit

E2 durometer is delivered a complete kit:

  • E2 durometer with the choThe sen scale
  • Carrying case
  • NIST traceable 3-Point calibration certificate


Specifications
Accuracy:± 1 point

Buy Now
Products

Product
Price
Quantity
137089
E2-A - Shore A Durometer
€ 419,00
136952
E2-C - Asker C Durometer
€ 419,00
137088
E2-D - Shore D Durometer
€ 419,00
137090
E2-E - Shore E Durometer
€ 419,00

Accessories

Product
Price
Quantity
137091
E2-PI - Peak Indicator Option for E2 durometers
€ 40,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
