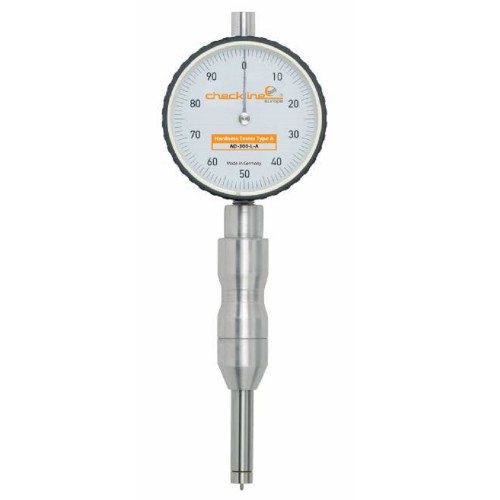

AD-300L Durometer with Slim Probe


Made in GermanyThe AD-300-L durometer with slim probe is developed for hardness measurements on irregular shapes and areas that are hard to reach.

This new durometer series is built to the highest quality standards with internal friction reduced to an absolute minimum it enables you to take highly accurate repetitive measurements on hard to reach places.

The AD-300-L is available in 2 versions (Shore A & Shore D) in 3 different types:

  • Type 1: Slim probe 1 with a foot diameter of 8 mm for hard to reach or irregular shapes
  • Type 2: Durometer with chisel shaped probe for hard to reach or narrow areas
  • Type 3: Slim probe 2 with a thinner foot, diameter of 5 mm, to reach narrow places or irregular shapes



The AD-300-L durometer meets the requirements of different international standards, including ASTM D 2240, DIN ISO 7619-1, ISO 868, ISO 7619-1. (With the exception of the diameter of the pressure foot because the pressure foot is not according to the national standards)


Features

  • Drag pointer optional available
  • Developed for hardness measurements on irregular shapes and narrow areas
  • 3 different foots available
  • High accuracy of 1.0 points

Operating Principle


Related Products

OS-300-2 Durometer test stand


  • Shock free lowering & integrated crash ring
  • Durometer weight shore D optional available
  • Meets the requirements of international norms: DIN 53505, ISO 868, ISO 7619, ASTM D 2240

More details

OS-300-2-OO Durometer test stand for Shore OO Durometers


  • For hardness measurements according to durometer type OO

More details


Specifications

Dial diameter:
57 mm
Total length:
166 mm
Range:
0 - 100
Accuracy:
± 1
Resolution:
1
Drag pointer:
Optional available
Net weight:
193 g
Standards:
DIN ISO 7619-1
ISO 868
ISO 7619-1
ASTM D 2240
(with the exception of the diameter of the pressure foot)

Buy Now

Products


Product name
Price
Quantity
AD-300L-1-A Durometer type A
€ 739,00

AD-300L-2-A Durometer type A
€ 739,00

AD-300L-3-A Durometer type A
€ 739,00

AD-300L-1-D Durometer type D
€ 739,00

AD-300L-2-D Durometer type D
€ 739,00

AD-300L-3-D Durometer type D
€ 739,00

AD-300L-1-A-M Durometer type A with Memory Pointer
€ 795,00

AD-300L-2-A-M Durometer type A with Memory Pointer
€ 795,00

AD-300L-3-A-M Durometer type A with Memory Pointer
€ 795,00

AD-300L-1-D-M Durometer type D with Memory Pointer
€ 795,00

AD-300L-2-D-M Durometer type D with Memory Pointer
€ 795,00

AD-300L-3-D-M Durometer type D with Memory Pointer
€ 795,00



Accessories


Product name
Price
Quantity
AD-300-MEM Memory Pointer Option
€ 50,00

AD-300-NGC New Gauge Certificate
€ 89,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
