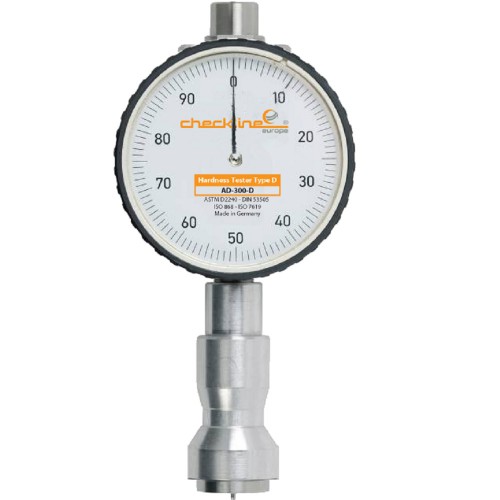

AD-300 High End Durometer


Made in GermanyEasily the best available Hardness Tester to determine indentation resistance (shore) of vulcanized or thermoplastic rubbers, elastomeric or soft plastic materials and silicon products.

The AD-300 durometer fully meets the requirements of different international standards, including:

- ISO 868 (A, D)
- DIN ISO 7619-1, ISO 7619-1 (A, AO, D)

- ASTM D 2240 (A, D, C, B, DO, O, OO).

This new AD-300 durometer series takes the built quality of general available durometers to the next level.
The internal friction, that is common in most durometers, is reduced to an absolute minimum.
Together with the ergonomic enlarged foot this enables you to take highly accurate repetitive measurements.

The AD-300 Hardness Tester is available in the following (Shore) versions : A, D, C, O, OO and DO

The AD-300 Durometer displays hardness readings on an easy-to-read analog scale. An optional available MEMORY POINTER holds readings until it is manually reset, allowing the operator to concentrate on measurement task.
The AD-300 Hardness Tester will be delivered with operating instructions, carrying case and calibration certificate.



360 degree photo

Features
  • Ergonomic foot offers stabile pressure
  • Large easy to read dial face
  • Memory pointer optionally available
  • Highly accurate and repetitive
  • Highest available built quality
  • Conform to DIN ISO 7619-1, ISO 868, ISO 7619-1 and ASTM D 2240

Operating Principle

Operating Principle


Related Products

OS-300-2 Durometer test stand


  • Shock free lowering & integrated crash ring
  • Durometer weight shore D optional available
  • Meets the requirements of international norms: DIN 53505, ISO 868, ISO 7619, ASTM D 2240

More details

OS-300-2 Durometer test stand

OS-300-2-OO Durometer test stand for Shore OO Durometers


  • For hardness measurements according to durometer type OO

More details

OS-300-2-OO Durometer test stand for Shore OO Durometers

HB-TBK-A Shore A Test Block Kit


  • 7 test blocks: shore range 30 to 90
  • According to DIN ISO 7619-1
  • Calibration Certificate

More details

HB-TBK-A Shore A Test Block Kit

HB-TBK-D Shore D Test Block Kit



More details

HB-TBK-D Shore D Test Block Kit

Specifications
Dial diameter:57 mm
Total length: 121 mm
Range:0 - 100
Accuracy:± 0,5
Resolution:1
Memory pointer: Optional
Standards:ISO 868 (A, D)
DIN ISO 7619-1, ISO 7619-1 (A, AO, D)
ASTM D 2240 (A, D, C, B, DO, O)
Weight (net):184 g

Conformance to International Standards
Model ASTM D2240 DIN 53505 ISO 868 ISO 7619
AD-300-A
AD-300-C
AD-300-D
AD-300-O
AD-300-OO
Type Indentor Shape Force
A Flat cone point, 35º Included Angle Soft rubber, plastics, and elastomers, printer's rolls. 822 Gr
B Sharp cone point, 30º Included Angle Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A. 822 Gr
C Flat cone point, 35º Included Angle Medium hard elastomers and plastics. Also useful to avoid surface marks. 4536 Gr
D Sharp cone point, 30º Included Angle Hard rubber and plastics such as thermo plastics, flooring and bowling balls. 4536 Gr
DO 3/32" Spherical Dense granular material, textile windings. 4536 Gr
O 3/32" Spherical Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A. 822 Gr
OO 3/32" Spherical Light foams, sponge rubber gels, animal tissue. 113 Gr

Buy Now
Products

Product name
Price
Quantity
AD-300-A Durometer type A
€ 459,00
AD-300-D Durometer type D
€ 459,00
AD-300-C Durometer type C
€ 489,00
AD-300-O Durometer type O
€ 489,00
AD-300-OO Durometer type OO
€ 719,00
AD-300-DO Durometer type DO
€ 489,00

Accessories

Product name
Price
Quantity
AD-300-MEM Memory Pointer Option
€ 50,00
HB-TBK-A Shore A Test Block Kit (7 blocks) DIN ISO 7619-1
€ 295,00
HB-TBK-D Shore D Test Block Kit (3 blocks) DIN ISO 7619-1
€ 196,00
AD-300-NGC New Gauge Certificate
€ 89,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
