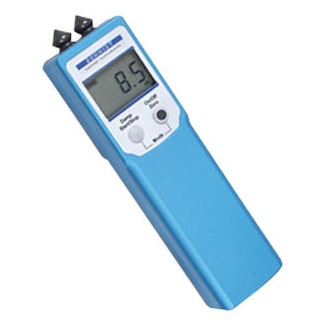

PT-100 Pocket Tension Meter for Circular Knitting


Made in GermanyMeasuring Range: 0.5 - 100.0 grams or cN

This new portable electronic pocket tension meter is designed for measurement of low tensions of fibers, yarns. etc. typically found on circular knitting machines etc.

It is battery-powered and pocket-sized for convenient storage and features and extremely small measuring head for applications with limited access space

It uses a unique 180 degree material wrap to provide for accurate readings while the machine is in operation.

Easy Slide-In material threading by cone shaped guide roler and turning the instrument 180 degrees


Features
  • Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
  • Adjustable electronic damping provides a more steady value as compared to constantly fluctuation tension values
  • V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)
  • Compact aluminum housing is rugged and features an easy to read LCD Display
  • NIST-Traceable Calibration Certificate & Test Report is optionally available
  • User-set measuring units of Grams or cN and can be used in right or left hand as desired
  • Rechargeable battery provides approx. 40 hours of continuous use
  • Each instrument is individually calibrated for highest accuracy and is CE Certified

Tension Ranges
ModelRanges Calibration Material
PT-100 0.5 - 100.0 g or cN PA: 0.12 mm Ø

Complete Kit
Tension meter with carrying case, AC adapter with 3 country adapters (EU/USA/UK), operating instruction manual

Related Products

PT-100-L Pocket Tension Meter for Circular Knitting


  • Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
  • Adjustable electronic damping to provide steady tension readings
  • V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)

More details

PT-100-L Pocket Tension Meter for Circular Knitting

Specifications
Accuracy
±1.5 % full scale ±1 digit
Overload protection
200 % full scale
Measuring units
cN, gr user-switchable
Measuring principle
Strain gauge full bridge loadell
Damping
Adjustable electronic damping, averaging
Display
LCD 3 ½ digits, 9 mm high
Display update rate
2 times per second
Auto power off
After 3 minutes off non use
Temperature range
10 - 45 ºC
Air humidity
85 % RH, max.
Power supply
Lithium Polymer Rechargeable Battery (approx. 40 hours continous use, charging time approx. 3.5 h) with Charger 100 - 240 V AC with country adapters (EU/USA/UK)
Housing material
Aluminium
Dimensions
141 x 36 x 22 mm (LxWxH)
Weight, net (gross)
Approx. 170 g (approx. 500 g)
