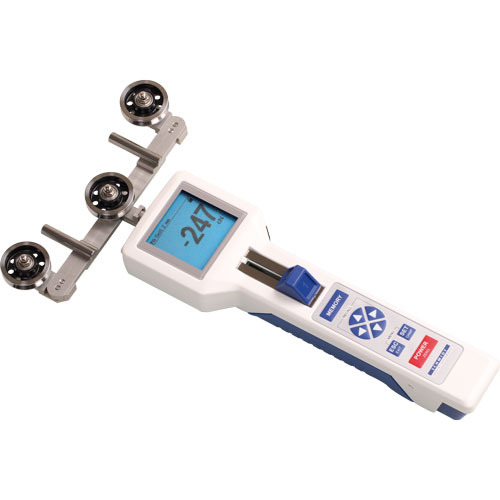

DTSL-DTXL Digital Tension for cables, ropes, wires, buffer tubes, fiber strands


Made in GermanyThe Checkline DTSL / DTXL Digital Tension Meter for cables, ropes, wires, buffer tubes, fiber strands etc. up to 15 mm Ø, as well as flat materials up to 10 mm width.

The DTSL / DTXL Digital Tension Meter is hand-held and available with 6 different tension ranges from 150 - 200 cN up to 6 - 60 daN.
It has 3 different display modes:
– numeric
– numeric with bargraph
– numeric with graph (Time-Tension)

The display rotates in 90° steps for better reading, it has an Automatic „Zero-Setting“ in each measuring position using a special sensor technique. And Programmable MIN- and MAX alarms:  indication in the display, if reading is out of limits.
The units of measurement are selectable in : cN, daN, g, kg, N, lb

The DTSL / DTXL Digital Tension Meter has 4 Material memory locations for customer made calibrations

DTSL: Feature:
- Basic unit for easy operation and general use

The DTXL Advanced version is professional version with additional functions:
- Statistical evaluation on PC
- 5 Memory modes with statistics
- Mode S: statistics only
- Mode H: storage of the X-Y-diagram for reviewing after finishing a series of measurement (e.g. short time spooling)
- Mode C: continuous logging over a user set time and different series of measurement (2 Hz)
- Mode F: fast, continuous logging over a user set time and different series of measurement (1000 Hz)
- Mode D: storage of single readings and statistic
- Large internal memory: memory for 60.000 readings
- USB interface , Wi-Fi (optional)

and it comes with  Software to display and save readings on a PC (Win 7 and higher; 32 bit and 64 bit) with the following features:
– Real-time reading
– The readings are also shown in a X-Y- diagram (time/date-tension)
– For data analyzing the buffered diagram can be zoomed and scaled
– Recording of the buffered readings as CSV-file (on user request)
– Download of values to Excel


Dimensions
Dimensions-DTSL-DTXL

Dimensions-DTSL-DTXL


Features
    Standard Features
    • Everything in operator’s view:
      – the guide rollers
      – the measured material
      – the readings
    • Filament guide and roller shifting mechanism ensure easy acquisition of the running material
    • Rubberized handle provides a secure hold in the operators‘ hand
    • Tension meter DTSL with rugged aluminum housing
    • LiPo accumulator (approx. 40 hours continuous operation) with AC adapter
    • CE certified, interference resistant against static electrifications
    • Certificate of Compliance with the order 2.1 according EN 10204 is included
    • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
    Special Features
    • Ball-bearing mounted guide rollers
      – V-grooved (for material with max. 4 mm Ø)
      – U-grooved (for material with 3 up to 15 mm Ø)
      – tape grooved (for material with max. width of 10 mm)
    • Large roller diameter for minimized material deflection
    • Special guides on the bracket assembly permit easy material acquisition
    • Tension meter DTSL with large, backlight LCD-display
    • 3 different display modes:
      – numeric
      – numeric with bargraph
      – numeric with graph (Time-Tension)
    • The display rotates in 90° steps for better reading
    • New, unique, force reduced material catching system
    • Automatic „Zero-Setting“ in each measuring position using a special sensor technique
    • 4 Material memory locations for customer made calibrations
    • Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
    • Programmable MIN- and MAX alarms: indication in the display, if reading is out of limits
    • High speed data sampling (internal 8 kHz) and recording of MIN-, MAX-, last reading, PEAKS, average and standard deviation
    • Selectable units of measurement: cN, daN, g, kg, N, lb
    • Menu set-up in English or German language
    • Flexible menu set-up to meet operators demand
    • Some functions can be password protected

    Note: Tension meter DTXL offers additional features, like interface, statistical evaluation on PC and a large internal memory.
    Additional functions for DTXL in comparison to basic instrument DTSL
    • Memory for 60.000 readings
    • USB interface
    • Tension meter DTXL with 5 different memory modes:
      Mode S: statistics only
      Mode H: storage of the X-Y-diagram for reviewing after finishing a series of measurement (e.g. short time spooling)
      Mode C: continuous logging over a user set time and different series of measurement (2 Hz)
    Mode F: fast, continuous logging over a user set time and different series of measurement (1000 Hz)
    Mode D: storage of single readings and statistic
    • 10 Material memory locations for customer made calibrations
    • Software Tension Inspect 3 for displaying real-time readings on a PC and to store them into a file
    • Wi-Fi module for wireless communication with a PC (optional)

    Specifications

    Available Models
    Model DTSL Model DTXL Measuring Range Resolution Measuring
    Head Width*
    SCHMIDT
    Calibration Material
    DTSL-2500 DTXL-2500 150 – 2500 cN 1 cN 185 mm With convenient material for each roller design or customer supplied material
    DTSL-5000 DTXL-5000 250 – 5000 cN 1 cN 185 mm With convenient material for each roller design or customer supplied material
    DTSL-10K DTXL-10K 1 – 10 daN 0.01 daN 235 mm With convenient material for each roller design or customer supplied material
    DTSL-20K DTXL-20K 2 – 20 daN 0.01 daN 235 mm With convenient material for each roller design or customer supplied material
    DTSL-50K-R4 DTXL-50K-R4 5 – 50 daN 0.01 daN 226 mm With convenient or customer supplied material
    DTSL-50K-R5 DTXL-50K-R5 5 – 50 daN 0.01 daN 226 mm With convenient or customer supplied material
    DTSL-60K-R4 DTXL-60K-R4 6 – 60 daN 0.01 daN 276 mm With convenient or customer supplied material
    DTSL-60K-R5 DTXL-60K-R5 6 – 60 daN 0.01 daN 276 mm With convenient or customer supplied material
    * Outer distance between outside guide rollers

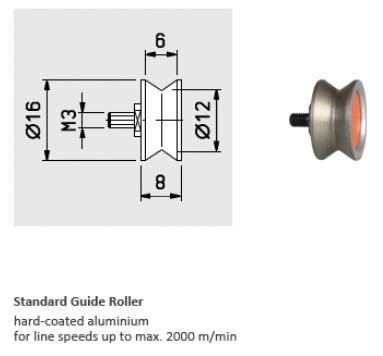

    Guide Rollers
    Order-Code Line Speed vmax. … m/min Roller Material
    Standard 4000 Hardened steel (max. Ø 4mm)
    Code R1 4000 Hard chrome-plated steel (radius R5), for material diameter 3 – 9 mm
    Code R4 1000 Hardened steel (radius R8), for material diameter 8 – 11 mm
    Code R5 1000 Hardened steel (radius R8), for material diameter 12 – 15 mm
    Code B6 2000 Hardened steel, width 6 mm
    Code B10 2000 Hardened steel, width 10 mm

    How to order

    To order the tension sensor DTSL or DTXL:
    Please indicate the complete item number:

    Model with tension range Code for guide rollers (if not standard) Code attachment) Complete Item No.
    DTSL-5000 + B6 + MH = DTSL-5000-B6-MH

    Attachment
    Code MH - Online Mounting
    To mount the gauge for online use, the housing can be equipped with mounting threads. There are two bolts with M5 female thread on the rear side. This feature cannot be installed afterwards.

    Standard Accessories
    K50202 - USB AC Adapter
    USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) for 100 – 240 V AC and USB cable for loading the accumulator

    Item number: K50202

    Complete Kit
    • Tension meter DTSL or DTXL with carrying case
    • Accumulator and USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ)
    • Certificate of compliance with the order 2.1 according EN 10204 free of charge
    • Operating instruction in German or English (as requested)



    • (The DTXL version comes with additional Software & USB-cable)
