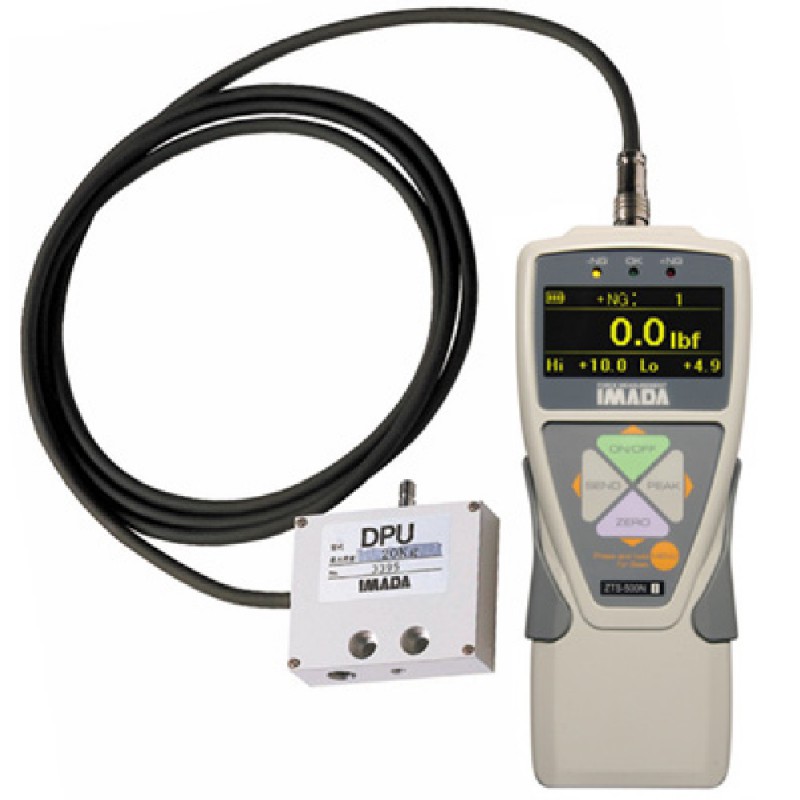

ZT-DPU Digital Force Gauge with Remote Sensor


The ZT-Series Force Gauge is designed with EL electro luminescent display, and is therefore highly visible in dark locations. The meter with the separate sensor is ideal for use in confined spaces or difficult to reach measurements. It it available in the ranges from 2N up to 20 kN.
All standard sensors are good for both compression and tension. A standard cable with a lenght of 2 meter, connects the gauge to the sensor. It is a very user friendly meter with his easy-to-use menus. It has Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japanese.
The data logger software, ZT-Logger which is included, can transfer data to PC by one click all at once
  • Displayed value at when you press SEND button
  • Continuous data (10 data / sec). (You can make a graph with Excel later)
  • Data saved in internal memory
You can use it by hand-held for basic compression/tension tests, but we recommend that you combine the force gauge with a test stand.

The ZT-Series Force Gauge are available in 2 versions:
Series ZTS (Standard) & Series ZTA (Advanced)

The ZTA (advanced) has more useful functions:
Feature 1: Displacement I/O becomes possible, this means that you can input/output displacement as well as force when you combine with a test stand having a linear scale by a dedicated cable or DMK scale.
Feature 2: Continuous data (100data / sec) can be saved in USB flash drive, this means that You can save 100 data / sec at real time in USB flash drive in CSV format. You can also transfer internal memory data to USB flash drive.
Even in the case when you cannot connect PC during measurement, you can save data in USB flash drive, and later transfer data to PC via the USB drive. On PC you can draws the data into a graph with Excel.
Feature 3: Maximum/minimum value among internal memory data can be indicated. An average value among internal memory data can be indicated. You can set a certain load value (A), and it can capture 2 peak values right before the certain load value dropped.


Features
  • Sensor (load cell) separated
  • Various types of sensors available to suit your measurement conditions
  • Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
  • Color-coded LED indicators and output signal for Go/No-Go testing
  • High sampling rate (Max.2000 data / sec.) : Captures force value more precisely
  • EL electro luminescent display is highly visible in dark locations
  • Internal Ni-MH batteries or AC adapter
  • Ergonomic design with non-slip grips, heavy duty metal construction
  • Fits for measurements at limited areas
  • kgf, lbf, and N units are selectable
  • Easy-to-use menus: make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.
  • Capacity up to 20kN (push/pull)
  • Overload alarm and output signal

Complete Kit

The ZT-DPU is delivered as a complete kit, including:
  • Forge gauge
  • Remote sensor
  • Full set of attachments
  • ZT Logger data acquisition software
  • USB cable
  • AC adapter/charger
  • Calibration certificate traceable to NIST
  • Carrying case


Video

Related Products

ZT Digital Force Gauge with Luminescent EL Display


  • Luminescent display is highly visible in dark locations
  • Capacity up to 5000 N/Kg (push/pull)
  • kgf, lbf, and N units are selectable

More details

ZT Digital Force Gauge with Luminescent EL Display

Dimensions
Dimensions Digital Force Gauges ZT-DPU


Specifications
Accuracy
± 0.2% F.S., ± 1 LSD
Selectable Units
Newtons, kgf(gf) or lbf(ozf)
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output, Comparator 3 steps (-NG/OK/+NG)
Operating Temperature
0 to 40 °C (32 to 100 °F)
Display
4-digit Organic EL
Display update
10 / sec
Sampling rate
2000 data / sec at maximum
Weight
Indicator: Approx.490g (Load cell: Please refer to each load cell’s specifications)
Warranty
1 year

Downloads

ZT-Series Feature Comparison Chart
Electroluminescent display (ELD)


Functions
ZTS
ZTA
Peak hold
OK/NG judgment
Reverse display
Sensitivity
4 steps
4 steps
Multi display
Internal memory
1000 data
1000 data
+/- Force
Auto zero timer
+NG alarm
Auto shut off
Calendar
1st/2nd peak drop
-
Displacement detection at force peak
-
Displacement Reset
-
Output
ZTS
ZTA
Serial (RS232C)
Mitutoyo digimatic [*4]
Analog
+/- 2V F.S. approx.
+/- 2V F.S. approx.
USB
High/low set points
Overload warning
High/low output
-
Memory in USB flash drive
[USB flash drive is not included]
-
Displacement
-

Tension Ranges
ModelRanges Capacity Resolution Thread Included attachment
ZTS/ZTA-DPU-2N 2 N
200 gf
7 ozf
2.000 N
200.0 gf
7.00 ozf
0.001 N
0.1 gf
0.01 ozf
M6A1 to A8
ZTS/ZTA-DPU-5N 5 N
500 gf
18 ozf
5.000 N
500.0 gf
18.00 ozf
0.001 N
0.1 gf
0.01 ozf
M6A1 to A8
ZTS/ZTA-DPU-10N 10 N
1 kgf
2.2 lbf
10.00 N
1.000 kgf
2.200 lbf
0.01 N
0.001 kgf
0.001 lbf
M6A1 to A8
ZTS/ZTA-DPU-20N 20 N
2 kgf
4.4 lbf
20.00 N
2.000 kgf
4.400 lbf
0.01 N
0.001 kgf
0.001 lbf
M6A1 to A8
ZTS/ZTA-DPU-50N 50 N
5 kgf
11 lbf
50.00 N
5.000 kgf
11.00 lbf
0.01 N
0.001 kgf
0.01 lbf
M6A1 to A8
ZTS/ZTA--DPU-100N 100 N
10 kgf
22 lbf
100.0 N
10.00 kgf
22.00 lbf
0.01 N
0.01 kgf
0.01 lbf
M6A1 to A8
ZTS/ZTA-DPU-200N 200 N
20 kgf
44 lbf
200.0 N
20.00 kgf
44.00 lbf
0.01 N
0.01 kgf
0.01 lbf
M6S1 to S8
ZTS/ZTA-DPU-500N 500 N
50 kgf
110 lbf
500.0 N
50.00 kgf
110.0 lbf
0.1 N
0.01 kgf
0.01 lbf
M6S1 to S8
ZTS/ZTA-DPU-1000N 1000 N
100 kgf
220 lbf
1000 N
100.0 kgf
220.0 lbf
1 N
0.1 kgf
0.1 lbf
M10 B1 to B8
ZTS/ZTA-DPU-2000N 2000 N
200 kgf
440 lbf
2000 N
200.0 kgf
440.0 lbf
1 N
0.1 kgf
0.1 lbf
M10 B1 to B8
ZTS/ZTA-DPU-5000N 5000 N
500 kgf
1100 lbf
5000 N
500.0 kgf
1100 lbf
1 N
0.1 kgf
1 lbf
M10 B1 to B8
ZTS/ZTA-DPU-10kN 10 kN
1000 kgf
2200 lbf
10.00 kN
1000 kgf
2200 lbf
1 N
1 kgf
1 lbf
N/A*None
ZTS/ZTA-DPU-20kN 20 kN
2000 kgf
4400 lbf
20.00 kN
2000 kgf
4400 lbf
1 N
1 kgf
1 lbf
N/A*None
