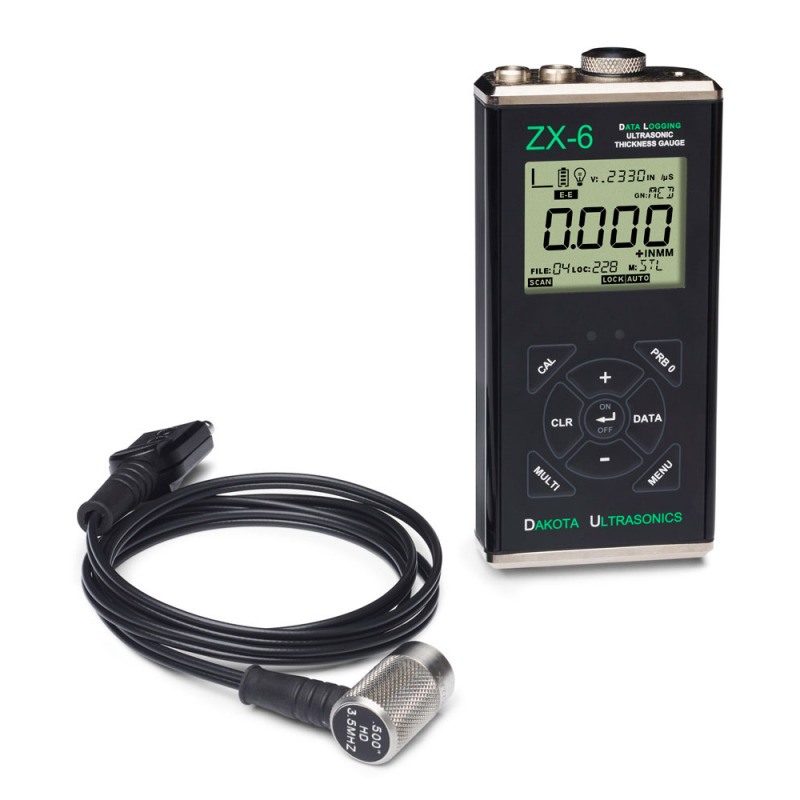

ZX-6DL Thru-Paint Ultrasonic Wall Thickness Gauge with Data memory and USB Output


Made in the USALike the entire Dakota ZX series, also the new Dakota ZX-6DL is an ultrasound wall thickness measuring device to assess the wall thickness and extent of corrosion of metals, ceramics, glass and most hard plastics from just one side. With the ZX-6DL, the value of the layer thickness is eliminated and only the value of the metal wall thickness is displayed.


The ZX-6DL version offers the additional feature of an integrated data memory for 10,000 values with 250 measured values per data record, up to 40 separate data records with USB output. Data can be transferred to any program in ".csv" format or displayed in the DAKVIEW4 software (free download).

The ZX-6DL probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.

The ZX-6DL can be used with any of the following hi-damped dual-element transducers specifically designed for use when employing the E-E Thru-Paint Mode. Probes possibilities include:

T-101-2700, 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement
T-101-3700, 3/16" Diameter, 7.5 MHz Hi-damped transducer for thru paint measurement
T-102-2700, 1/4" Diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement - Standard Probe
T-102-3700, 1/4" Diameter, 7.5 MHz Hi-Damped Transducer for thru paint measurement
T-104-2700, 1/2" Diameter, 5.0 MHz Hi-Damped Transducer for thru paint measurement
T-104-9700, 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement



Total Measuring Range:

Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode:

0.63 to 914.4 mm

Echo-Echo Mode (Through Paint & Coatings) - EE Mode:

2.54 to 25.40 mm

(Acutal range depends upon probe selected) - five probes to choose from)

Measuring Range on Steel (with standard T-102-2700 probe):

Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode:

1.00 to 199.9mm

Echo-Echo Mode (Through Paint & Coatings) - EE Mode:

2.54 to 25.40 mm


Features
  • Total Measuring Range: PE Mode 0.63 to 914.4 mm/EE Mode 2.54 to 25.40 mm
  • Resolution of 0.01 mm
  • Measuring unit switchable between mm and inch
  • Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
  • The probe is waterproof and can be immersed in water
  • Selectable Backlight ON/OFF/AUTO
  • Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
  • High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • 5 Year Warranty, CE-Certified and Made in USA

Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 8.89 mm
Minimum Radius for Concave Surfaces 76.2 mm
Minimum Radius for Concave Surfaces Minimum Headroom 25.0 mm
Minimum Sample Diameter Minimum Sample Diameter 3.8 mm
Minimum Substrate Thickness - F Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na

Complete Kit

The ZX-6DL is delivered in complete kit in a foam-fitted suitcase including:

  • gauge
  • probe
  • 120 ml bottle of coupling fluid
  • 2 AA batteries
  • NIST-Traceable Calibration Certificate
  • Operating Instruction Manual


Accessories

A-302-6002 Protection for TI series gauges



More details

A-302-6002 Protection for TI series gauges 127313

Category Ultrasonic Thickness Gauge Accessories


More details

Category  Ultrasonic Thickness Gauge Accessories 375

Specifications
Total measuring range : Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode 0.63 to 914.4 mm Echo-Echo Mode (Through Paint & Coatings) - EE Mode2.54 to 25.40 mm (Acutal range depends upon probe selected) - five probes to choose from
Measuring range on steel: Measuring Range on Steel (with standard T-102-2700 probe) Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode 1.00 to 199.9mm Echo-Echo Mode (Through Paint & Coatings) - EE Mode 2.54 to 25.40 mm
Resolution: 0.01 mm
Measuring Mode: Pulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity
Velocity Range: 305 to 18,542 meters/sec
Probe (standard): 1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700
Probes (optional): 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
LCD Display: Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
Display Update Rate: 10 Hz (10 updates/sec)
Pulse Repetition Frequency (PRF): 200 Hz (200 pulses/sec)
Temperature Limits: Ambient: -30 to 75° C Material: -20 to 100° C
Housing Rating: IP65
Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Certification: NIST Traceable
Dimensions: 63.5 x 131.3 x 31.5 mm
Battery Type: 2x AA batteries (rechargeable batteries can be used)
Battery Life: 45h continuous use
Data output: USB-C (plug-n-play, view files on PC which can be dragged and dropped)
Weight: 308 grams
Guarantee: Gauge: 5 Years Probes: 90 Days
