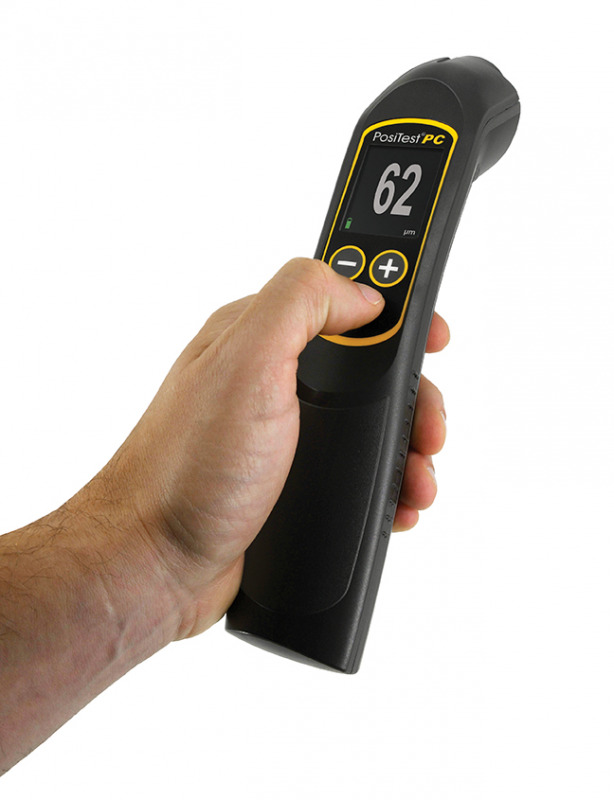

PosiTest-PC uncured powder tester


Made in the USACheckline Europe is pleased to present the next generation of non-contact ultrasonic technology thickness gauge for non-cured powder, the PosiTest- PC.

Most measurement methods take place after the powder coating has cured. If a coating has been improperly applied, correction after cure requires costly extra labor time, may lead to contamination of the film and may cause problems of adhesion and integrity of the coating. Thus measuring film thickness before cure permits immediate correction and adjustment by the applicator.

Features of the PosiTest PC uncured powder tester:

  • Dedicated stand-alone unit
  • Non-contact Uncured Powder Thickness Gauge
  • Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
  • Ready to measure right out of packaging
  • No calibration adjustment required for most powders
  • Scan Mode continuously takes measurements — ideal for analyzing large area

*Versus the previous generation PosiTector PC Powder Checker.


Complete Kit

The PosiTest-PC is delivered as a complete kit including:

  • PosiTest-PC powder checker
  • Probe zero fixture
  • 4 AAA batteries (display unit)
  • User manual
  • Instruction video
  • Flat-head screwdriver
  • USB cable
  • Replacement probe screen
  • Foam filled hard shell plastic carrying case


Specifications
Measurement range*:20 to 100 microns (0.8 to 4.0 mils)
* Based on TGIC-Free polyester powder.
Resolution:1 µm (0.1 mil)
Accuracy:± 5 µm (0,2 mil)
Measurement Time:1 - 3 seconds
Warranty:2 years
Dimensions:241 x 64 x 51 mm
Weight:180 g without batteries

Features

Simple

  • Dedicated stand-alone unit is ready to measure right out of the box
  • Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
  • Easy-to-read digital display with a simple icon based menu
  • Hand-held battery operated
  • Ergonomic and lightweight
  • No calibration adjustment required for most powders
  • Target Grid simultaneously displays distance to the part and alignment making measurements easy
  • RESET features instantly restores factory settings


Durable

  • Solvent, acid, oil, water and dust resistant — ideal for harsh powder coating environments
  • Hard-shell carrying case included
  • Replaceable screen protects the sensor
  • Two year warranty


Accurate

  • Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
  • Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates
  • Conforms to ASTM D7378


Versatile

  • No cable to risk disturbing the applied powder
  • Mils/microns switchable
  • High contrast color display
  • Adjustable display brightness for optimal visibility in any environment
  • Toggle sound On and Off
  • Uses alkaline or rechargeable batteries


Powerful

  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software
  • Scan Mode continuously takes measurements - ideal for analyzing large areas
  • USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC
  • USB port for fast simple connection to a PC and to supply continuous power
  • Software updates keep your instrument current

360 degree photo

Video


Related Products

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

PosiTector-PC Powder Checker Non-Contact Coating Thickness Gauge


  • Wireless probe communicates with base unit up to 10m away. (30 feet)
  • Advanced new technology allows measurement on small tubes, odd shapes and moving parts
  • Continually displays/updates basic statistics including min/max and average

More details

PosiTector-PC Powder Checker Non-Contact Coating Thickness Gauge

Buy Now
Products

Product
Price
Quantity
136709
PosiTest PC Powder Checker Powder Thickness Gauge
€ 2.817,00
137019
KITPCDFTF - Powder Inspection Kit with PosiTest DFT F
€ 3.354,00
137020
KITPCDFTFN - Powder Inspection Kit with PosiTest DFT FN
€ 3.572,00
137018
KITPCFS1 - Powder Inspection Kit with PosiTector 6000 FS1
€ 3.713,00
137017
KITPCFS3 - Powder Inspection Kit with PosiTector 6000 FS3
€ 4.201,00
136726
KITPCFNS1 - Powder Inspection Kit with PosiTector 6000 FNS1
€ 4.142,00
137016
KITPCFNS3 - Powder Inspection Kit with PosiTector 6000 FNS3
€ 4.630,00

Accessories

Product
Price
Quantity
137094
KITPCSCRN Probe Screens (package of 2) for Powder Thickness Gauge
€ 62,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
