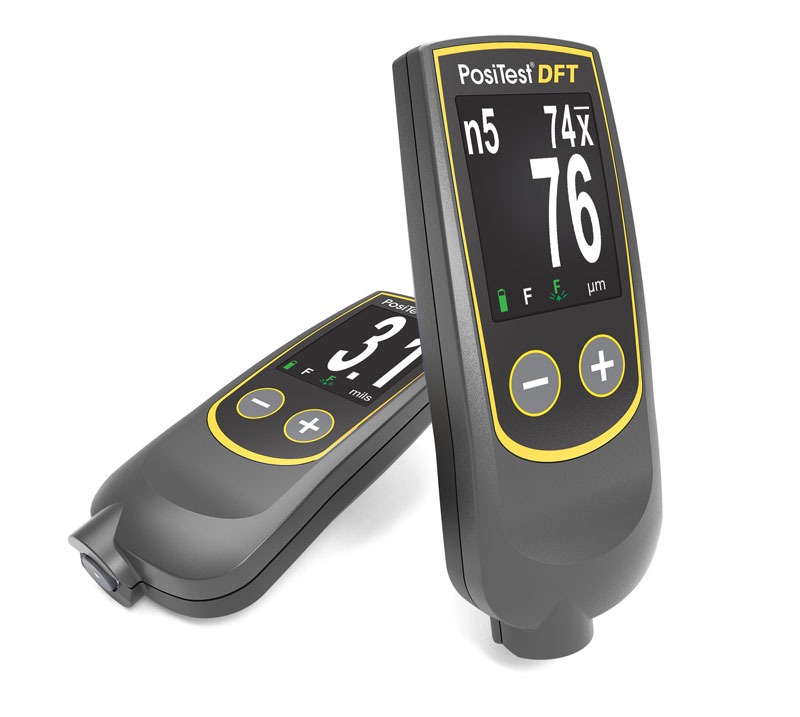

PosiTest - DFT PosiTest - DFT Coating Thickness Gauge

Made in the USAThe DFT Coating Thickness Gage measures the thickness of coatings on ALL metals. Accurate and economical the DFT is the ideal instrument for Powder Coaters, Paint Applicators, Coating Inspectors... Easy-to-read oversized LCD display is reversible for reading when inverted.

Two models:
  • PosiTest DFT-F measures non-magnetic coatings on steel.
  • PosiTest DFT-FN measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc. Automatically recognizes the substrate and takes a measurement.

  • Fast, repeatable measurements
  • No calibration required for most applications
  • Strong, wear resistant, ruby-tipped probe
  • ZERO feature for rough or curved surfaces
  • Handy RESET feature when no zero reference is available
  • Audible and visible measurement indication
  • V-groove in probe for positioning on cylindrical parts
  • Mils/Microns switchable
  • Basic instructions on the back of each gauge
  • 2-Year Warranty
  • Includes NIST traceable calibration certificate

Measuring Range0 - 40 mils ( 0 - 1000 µm)
Accuracy±(0.1 mils + 3%) (±(2µm + 3%))
Size4 x 1.5 x 0.9 in (100x38x23 mm)
Weight2.5 oz (70 g)


Cps Certified Shim Set

  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Complete Kit
The PosiTest DFT is delivered as a complete kit including:
- coating thickness gauge with built-in probe,
- wrist strap,
- plastic shims,
- hard shell storage case,
- AAA battery,
- operating instructions,
- NIST traceable calibration certificate,
- two (2) year warranty.

Related Products

Cic-Coating Calibration Coating Thickness Gauge

  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Buy Now

DFT-F Coating Thickness Gauges (Ferro)
€ 530,00
DFT-FN Positest Combo Coating Thickness Gauge (Ferro & Non-Ferro)
€ 760,00

POUCH-DFT Leather Pouch with belt loop for PosiTector DFT
€ 19,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request

Request offer
