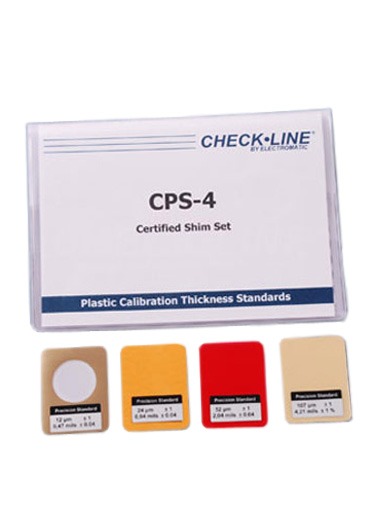

Cps in various thicknesses


Verify the accuracy and calibration of all Coating Thickness Gauges with Certified Plastic Shims.

4 sets available:

Part # Thickness Std's (µm) Thickness Std's (mils)
CPS-100 15 25 50 130 0.59 0.98 1.97 3.94
CPS-250 25 50 130 250 0.98 1.97 5.12 9.84
CPS-500 50 130 250 500 1.97 5.12 9.84 19.69
CPS-1500 250 500 760 1500 9.84 19.69 29.92 59.06

Each set includes a DIN traceable Calibration Certificate.

In case the offered sets do not match your calibration standard needs, there is the option of creating your own custom set of calibrated shims with certificate., CPS-Custom. We offer the following calibration standards:
15µm, 25µm, 40µm, 50µm, 75µm, 100µm, 130µm, 160µm, 180µm, 250µm, 300µm, 350µm, 500µm, 600µm, 760µm, 800µm, 1500µm and 1600µm.

When placing your order for a custom shim set please indicate which thickness values are required.


Features
  • Calibration Foils for Coating Thickness Gauges
  • Various thicknesses:
    15µm, 25µm, 40µm, 50µm, 75µm, 100µm, 130µm, 160µm, 180µm, 250µm, 300µm, 350µm, 500µm, 600µm, 760µm, 800µm, 1500µm and 1600µm.
  • Size shims: 30mm x 40mm

Buy Now
Products

Product name
Price
Quantity
CPS-100 - Set of 4 Calibrated Plastic Shims with Certificate (15,25,50,130 micron)
€ 99,00
CPS-250 - Set of 4 Calibrated Plastic Shims with Certificate (25,50,130,250 micron)
€ 99,00
CPS-500 - Set of 4 Calibrated Plastic Shims with Certificate (50,130,250,500 micron)
€ 99,00
CPS-1500 - Set of 4 Calibrated Plastic Shims with Certificate (250, 500, 760, 1500 micron)
€ 99,00
CPS-Custom - Set of 4 custom Calibrated Plastic Shims with Certificate
€ 169,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
