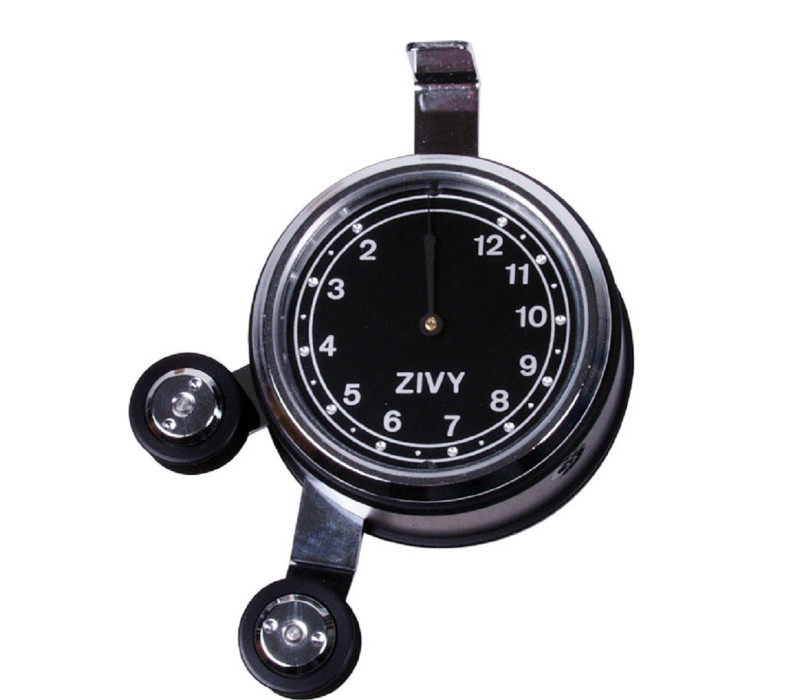

Zivy Hand-held Tension Meter


The ZIVY TEN hand-held mechanical tension  meters accurately measure the running line tension of yarns, threads and fibers.
This 2-roller measuring system for low tensionmeter features two precision ball-bearing mounted V-grooved rollers capable of measuring high line speeds and is available in 11 ranges from 0.5 - 3 cN up to 50 - 170 cN.


Features
  • Hand-held Tension Meter for yarns and filaments
  • 11 measuring ranges from 0.5 - 3 cN up to 50 - 170 cN
  • Large enlacement of thread
  • Extremely compact and light weight
  • V-grooved aluminium guide rollers, ball-bearing mounted
  • Tension meter with aluminium housing

Material Aquisition & Measurement

This tension meter is for one-hand operation.
For feed in, place the material between the two guide rollers. Push and hold the button at the instrument. The outer roll will be pivoted to the top and the device is ready to work. The measured tension will be shown at the precision gear


Tension Ranges

ZIVY 3 0.5 - 3 cN
ZIVY 5 1 - 5 cN
ZIVY 10 2 - 10 cN
ZIVY 12 2 - 12 cN
ZIVY 20 5 - 20 cN
ZIVY 30 5 - 30 cN
ZIVY 40 10 - 40 cN
ZIVY 50 10 - 50 cN
ZIVY 60 10 - 60 cN
ZIVY 70 10 - 70 cN
ZIVY 120 20 - 120 cN
ZIVY 170 50 - 170 cN

Complete Kit

Delivery includes:

  • ZIVY Tensionmeter
  • Foam-fitted, hard plastic carrying case
  • Spanner wrench to remove the roller (if neccessary)
  • Operating instructions


Dimensions
Dimensions Analog Tension Meters Zivy


Specifications
Accuracy:
±2 % Full scale up to 20 cN
±5 % Full scale for higher 20 cN
Scale diameter:
40 mm
Temperature range:
10 - 50 °C
Air humidity:
85 % RH, max.
Housing:
Aluminium
Weight net (gross)
150 g (260 g)

Buy Now
Products

Product name
Price
Quantity
ZIVY 3 - Tension Meter 0.5 - 3 cN
€ 597,50
ZIVY 5 - Tension Meter 1 - 5 cN
€ 535,00
ZIVY 10 - Tension Meter 2 - 10 cN
€ 525,00
ZIVY 12 - Tension Meter 2 - 12 cN
€ 525,00
ZIVY 20 - Tension Meter 5 - 20 cN
€ 502,50
ZIVY 30 - Tension Meter 5 - 30 cN
€ 502,50
ZIVY 50 - Tension Meter 10 - 50 cN
€ 502,50
ZIVY 60 - Tension Meter 10 - 60 cN
€ 502,50
ZIVY 70 - Tension Meter 10 - 70 cN
€ 502,50
ZIVY 120 - Tension Meter 20 - 120 cN
€ 502,50
ZIVY 170 - Tension Meter 50 - 170 cN
€ 502,50
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
